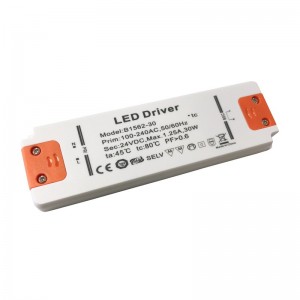

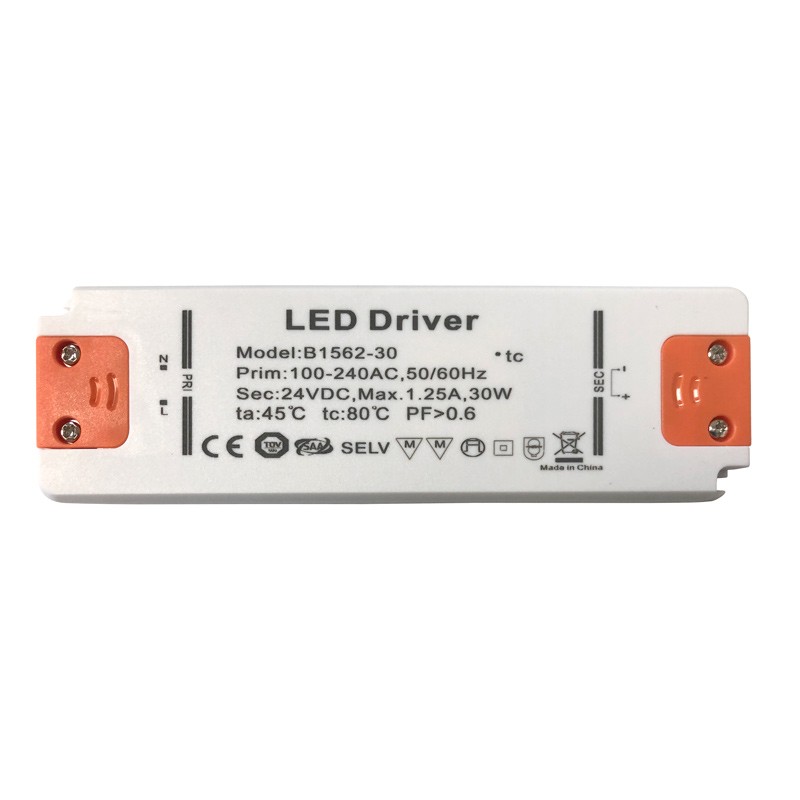

Ultra slim power supply 24V 30W IP20
SKU:B1562-30
€13.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
ULTRA-THIN POWER SUPPLY 30W. 24V-DC 1.25A
Power supply for LED luminaires and strips with a nominal power of 30W. The power supply system is designed to connect LED lamps with 24V voltage.
Transformer 24V 30w constant voltage .
Features of the ultra-thin 30W power supply. 24V-DC
- Rated power: 30W.
- Input voltage: 200-240V-AC.
- Input current: <1.25A.
- Output voltage: 24V. DC +/- -0.6 V.
- IP Protection: IP20.
- Maximum ambient temperature 45ºC.
- Length: 265mm.
- Height: 15mm.
- Width: 50mm.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
30
Lifetime (h)
20000
IP
IP20
Dimensions (mm) Lxlxh
265X50X15
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.9
Output voltage (V)
24V
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
1.25
