Controller / dimmer with RF touch control for single-color strip 12/24V 18A
SKU:B1628
€18.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Dimmer / dimmer with touch control RF single-color strip 12/24V-DC 6A
Dimmer with touch control, radio frequency connection for single color LED Strip 12/24V-DC 6A/channel dimmer connection.
- 12/24V
- Single color
- 6A/channel Max. 18A

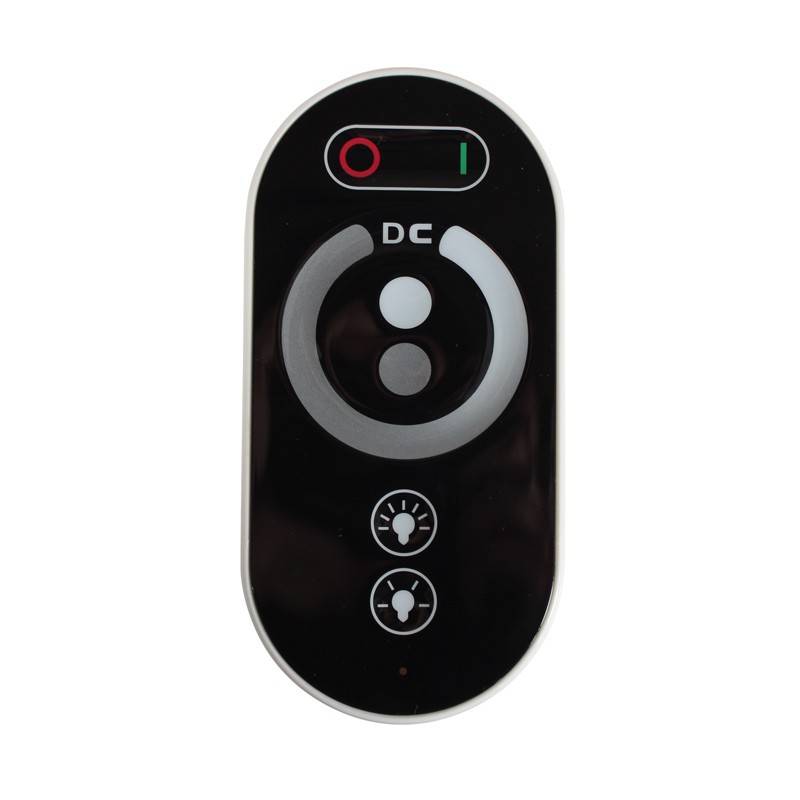

- Remote control including batteries
2018-06-02
Nominal Voltage (V)
12/24V-DC
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
206,5x136x43
Detection range (m)
20000
Sensor
Yes
Control system
12/24V-DC
Output voltage (V)
0/24V-DC
Colour control
Monocolor
Connectivity
Radiofrequency
Number of channels
1
Weight (g)
380
Material
Aluminum
Use Outdoor
No
Temperature range
-20 ~ +60°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Number of zones
1
Maximum intensity (A)
6A/channel
Questions
| P: Question: | Would it work with COB led strips (Reference:B1559-10-270)? |
|---|
| R: Answer: | Works with any 12vdc or 24vdc LED strip (with its corresponding power supply). |
|---|
| P: Question: |
Hello , Does this dimmer work with LED bulbs? Thank you |
|---|
| R: Answer: | It is for regulating 12 and 24vdc LED strips. |
|---|
| P: Question: | What is the maximum power of the ribbon that this controller supports? |
|---|
| R: Answer: | This regulator is 8A per channel, for a 24v strip the maximum it can support is 192W per channel (the power of the load depends on the strip used). Linear runs of more than 10 meters are not recommended for 24v LED strips due to the loss of intensity. For longer runs, we recommend installing repeaters or the controller in the center of the installation and splitting the strip in two. |
|---|
| P: Question: |
The remote control that comes with the dimmer / controller with RF touch control for single color strip 12/24V 18A. Part number: B1628, can also control LIDIMMER100? |
|---|
| R: Answer: | This controller is only for this controller |
|---|
| P: Question: |
I could put the receiver on top of a 13mm thick plasterboard ceiling with 50mm rock wool on top. And the remote control would be about 6 meters away? Thanks |
|---|
| R: Answer: | The receiver has a range of about 20mts without obstacles, we do not know the specific case of various material between the receiver and the controller, but there should be no problems. |
|---|
| P: Question: | Hello, if I house the dimmer regulator under the glass ceramic hob and in turn behind the casserole drawer that is under the glass the radio frequency of the control reaches it for proper operation? |
|---|
| R: Answer: | The RF signal passes over certain obstacles, but we do not know the range of the signal mounted in specific locations. |
|---|
| P: Question: | With a single controller, it could be associated to several controllers simultaneously. |
|---|
| R: Answer: | Yes, they can be associated to several controllers, but for more complex systems we recommend models designed for multiple synchronization between controls and controllers. For example ref, D2501NS + controller. |
|---|
| P: Question: |
one day it stopped working, the led lights did not turn on. I removed the batteries from the remote, disconnected it from the light and nothing. is there any reset or anything else thanks jq |
|---|
| R: Answer: | If the red light on the controller does not come on or there is no voltage from the power supply or the controller fails. |
|---|
| P: Question: | Very good for when would you have availability of this product? |
|---|
| R: Answer: | For availability of the dimmer, please contact comercial@barcelonaled.com. |
|---|
| P: Question: |
If I have several zones with their respective controllers, they do not influence each other, the control can be associated with its controller. |
|---|
| R: Answer: | If each command is associated with each controller |
|---|
