Controller + remote control LED RGBW 12/24V 4 channels
SKU:B1646-RGBW
€17.75
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

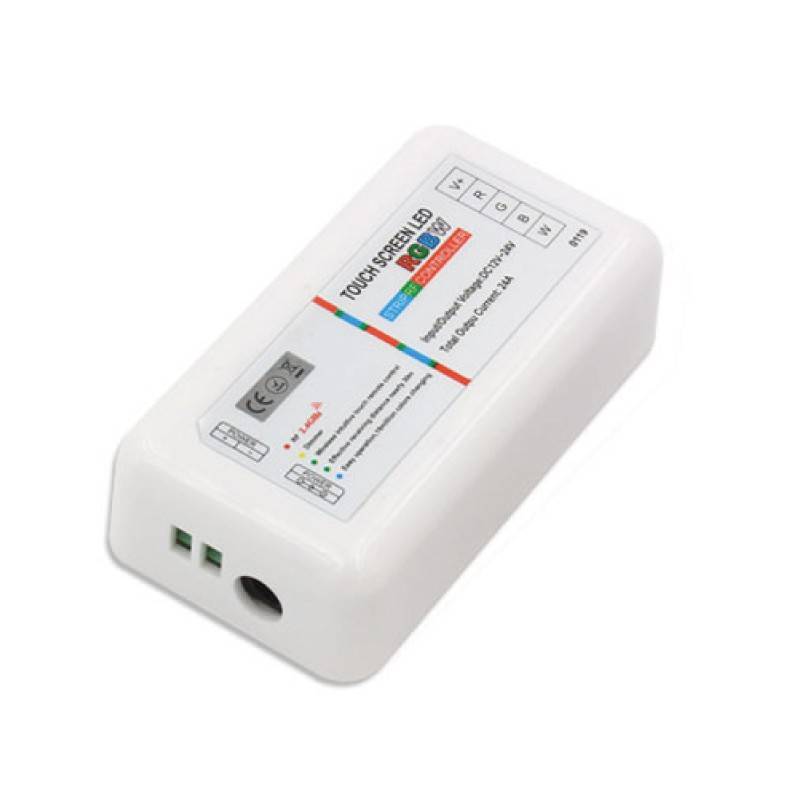

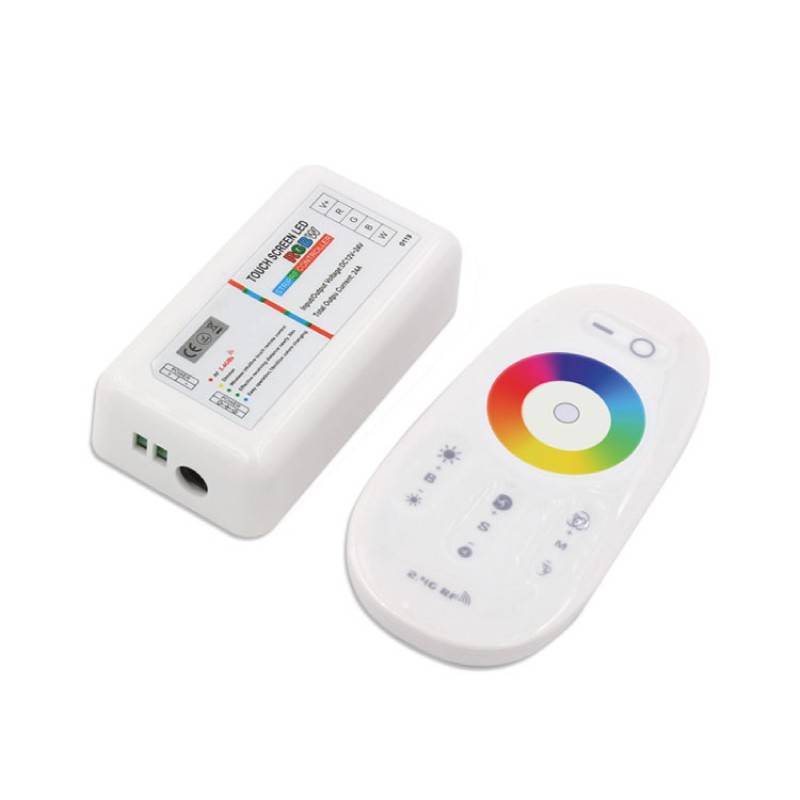

RGBW 12/24V 4 channel LED RGBWcontroller
LED lighting controller with remote control included that supports two types of RGBW color management. It is commonly used to control DC12V and DC24V LED strips and luminaires.
Incorporating the most advanced PWM control technology, it controls all 4-channel (R G B W) RGBW LED luminaires. Complete LED controller with 640 thousand colors, 20 auto switching modes and memory function.
The RGBW LED controller is characterized by high performance, with multiple possibilities. 2.4G high frequency wireless remote control, long distance transmission, 20-30 meters, anti-interference and so on. With the 2.4G wireless radio frequency, there is no need to point directly to the controller.
|

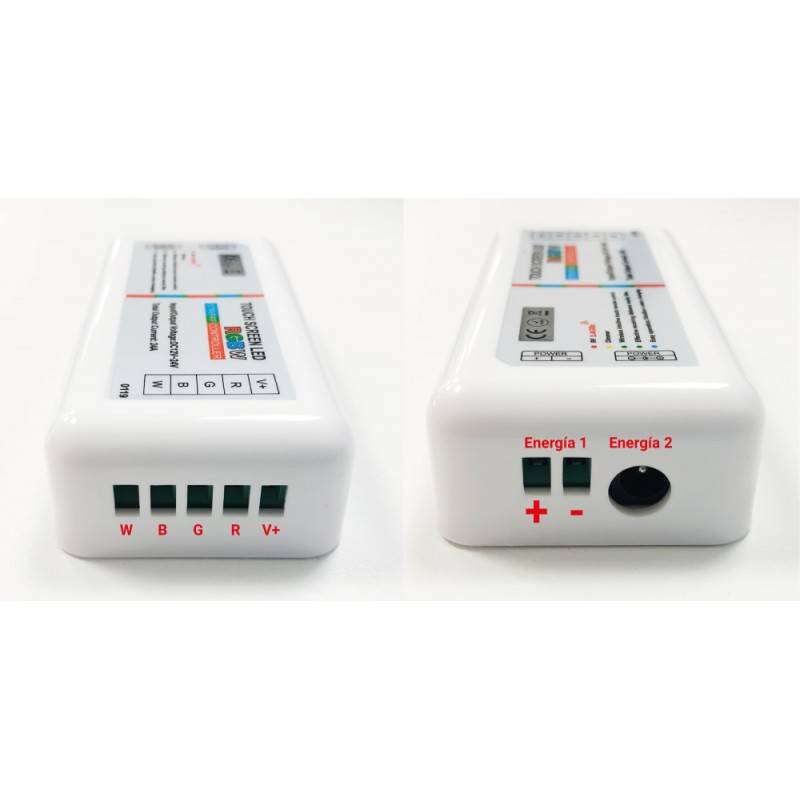

Main features of LED controller. ✔ Voltage: 12~24V. ✔ Output: 4 channels. ✔ Dimensions: 85x45x22mm. ✔ Output current: <6A per channel. ✔ Output power: 12V:<288W, 24V:<576W. ✔ Weight: 85 grams. |

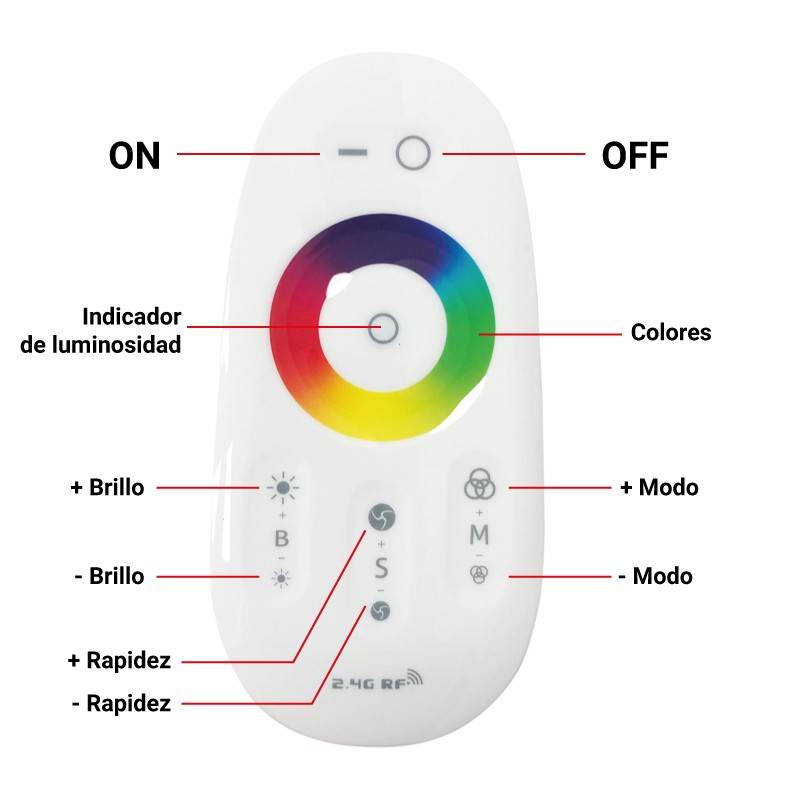

Remote control.
Included remote control with modern and elegant appearance, very easy to use touch design. With simple and practical functions such as color change, brightness dimming, etc.
When the remote control is on, the touch ring allows quick and smooth color changes. The "M" ("mode+" and "mode-") has up to 15 different mode options pre-installed, including: auto color, static white, static color+white, gradually changing colors, changing colors to another, circulation mode.
Press "Mode+" or "Mode-" to return to the last selected mode. Long press the "S" (Speed+, Speed) to adjust the speed of the luminaire. With the B (Brightness+ or Brightness-), you can quickly adjust your brightness levels.
|
Main features of the remote control. ✔ Voltage: 3V; 2*AAA batteries. ✔ Transmission: 2400-2483.5MHz. ✔ Transmitting power: 6db. ✔ Remote control distance: 20-30m. ✔ Modulation method: GFSK. ✔ Dimensions: 110x55x20mm. |
Questions
| P: Question: | Could I connect 6 RGBW led strips, 5m each, with a power of 60W per strip (12W/m)? All of them to this controller |
|---|
| R: Answer: | The controller is 6A per channel, if the LED strip is 24v is 144W, if it is 12v is 72W for each channel. |
|---|
| P: Question: | After performing the 6 second power off and on wait, and doing the pairing sequence indicated in the instructions for more than 2 seconds, the LED on the remote still does not blink and therefore does not pair...any suggestions? |
|---|
| R: Answer: | To synchronize the controller with the controller: Turn on the power supply and in the 6 after turning on, press the General Power and Mode (-) indicated in the manual with arrows for more than 2 seconds. |
|---|
| P: Question: |
Good, In case you know how you can reset , so I have been locked in a color and does not turn off ? -Greetings |
|---|
| R: Answer: | You can test the sync erase mode : Turn on the power supply and within 3sec, long press on the Increase speed button (in the middle above the three below). |
|---|
| P: Question: |
this controller+controller B1646 RGBW smart controller, which APP via mobile can be used to control it? Is there a button to take it directly to white on the controller? |
|---|
| R: Answer: | Press and hold the power button to enter the white mode (W). |
|---|
