DALI Relay Switch

DALI Relay Switch

SKU:SR-2701S
Has superado el límite de unidades
In stock 110 units
Data sheet

The SR-2701S is a Relay switch that completely shuts down devices with 100-240V/AC or 12/24V/DC line outages.

Mini size, easy to install in a standard wall box. Requires only 2 wires. Bus address assigned by DALI master, individual, group or controls with fade timers.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

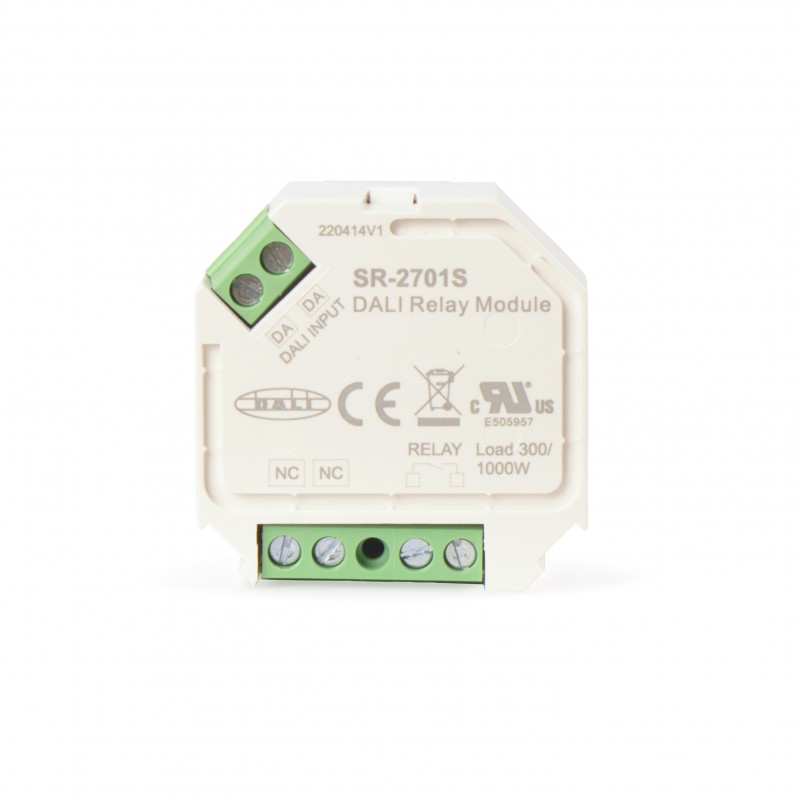

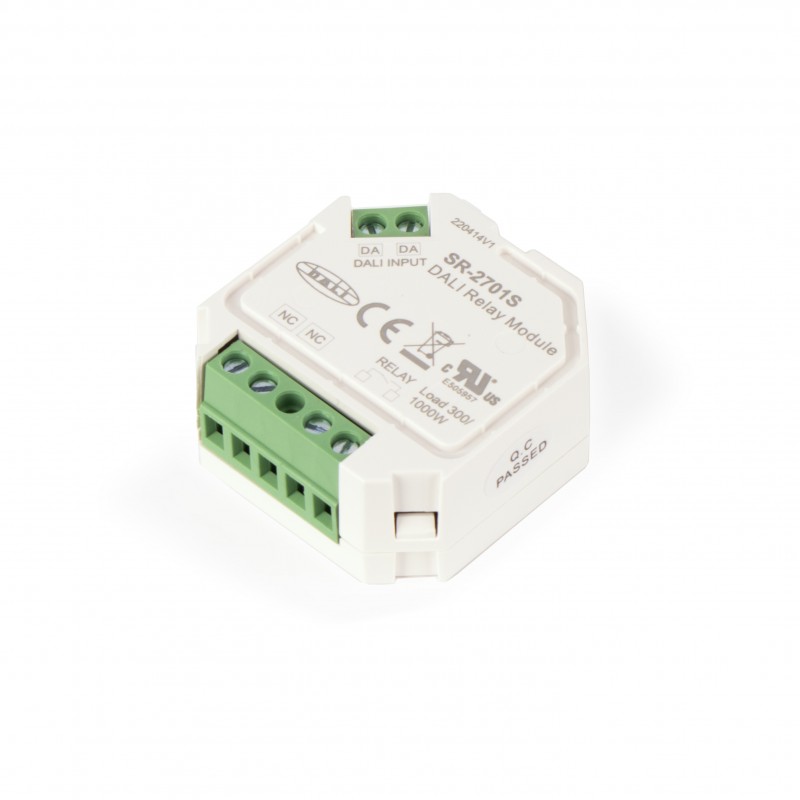

Relay DALI SR-2701S

The DALI SR-2701S RELAY switch is a mini-sized relay switch that completely shuts down devices with 220V/AC power line outages. Easy to install in a standard wall box. Bus addressing can be done by DALI master, individual, group or controls with fade timers. Only requires 2 wires.

Compatible load types:

1. LED, Fluorescent tube lamps (compact with electronic ballast), Electronic transformers: Max load. 300W - 230VAC / 150W - 110VAC

2. Ferromagnetic transformers: Max. load: 1000w - 230vac / 500w - 110vac. 1000W - 230VAC / 500W - 110VAC

3. Conventional incandescent and halogen light sources: Max. load: 1000w - 230vac / 500w - 110vac 3. 1000W - 230VAC / 500W - 110VAC

Compatible with Tridonic Sotware. App for users to control their individual luminaires via wifi network.

Main features of DALI relay module.

- DALI relay module.
- Powered by the DALI bus, no additional power supply required.
- 1 DALI address can be assigned by the DALI master controller.
- Control of a standard contactor.
- Compact relay module for controlling a standard contactor via DALI.
- In this way, loads that do not have a DALI input can be integrated into the DALI circuit.
- Loads can be switched on and off via DALI.
- Mini size, easy to install in a standard wall box.
- Degree of protection: IP20.

    Nominal Voltage (V)
    12V-DC
    24V-DC
    230
    Dimensions (mm) Lxlxh
    45.5x45x20.3
    Certificates
    CE
    ROHS
    Warranty
    According to legal guarantee: 2 years
