Dimmer for single colour LED strip - 12-24V DC - 2A
SKU:B1616
€8.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

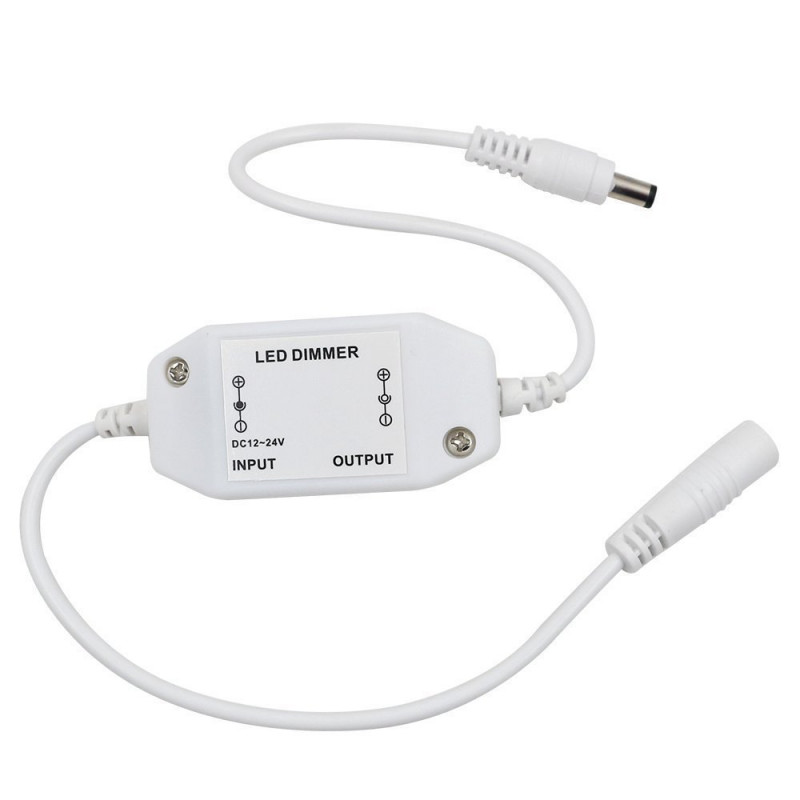

12-24V DC Dimmer for single-colour LED strips
Our single colour LED strip dimmer allows you to easily adjust the light intensity using its rotary knob. It offers smooth dimming without any jumps.

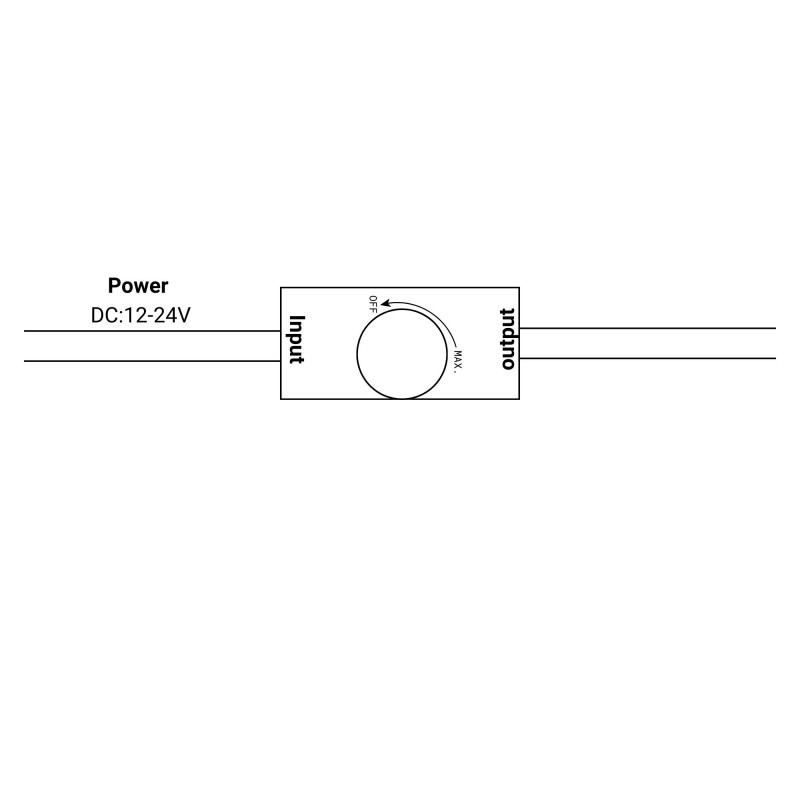

Designed for easy installation, it should be placed between the power supply and the LED strip to enjoy customized lighting.
With an output intensity of 2A, this dimmer allows you to connect up to 24W for 12V LED strips and up to 48W for 24V strips.
It's compatible with any LED installation at 12-24V DC (LED strips, LED MR16 bulbs, etc.).
|
Product features:
|
2018-06-02
Nominal Voltage (V)
12-24V
Power (W)
24-48 max
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
65x32x33
Sensor
No
Output voltage (V)
12 - 24
Colour control
Monocolor
Connectivity
Wiring
Number of channels
1
Material
Plastic
Use Outdoor
No
Temperature range
-20℃～+60℃
Frequency of use
Normal
Energy efficiency class
E
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
2
Questions
| P: Question: |
Hello I have a strip of old incandescent bulbs for a nativity scene that I want to keep, I need to lower the power of light, for this I want to place a dimmer, is this one useful even if it is for LED lamps? The output of the transformer that feeds the lights is 24V - 10VA. Thanks |
|---|
| R: Answer: | These dimmers are for 12 or 24VDC LED strips. Your bulbs are 24VAC and probably have a 24Vac transformer connected to 220Vac, if the transformer is dimmable you can use a normal TRIAC dimmer on the transformer input. |
|---|
