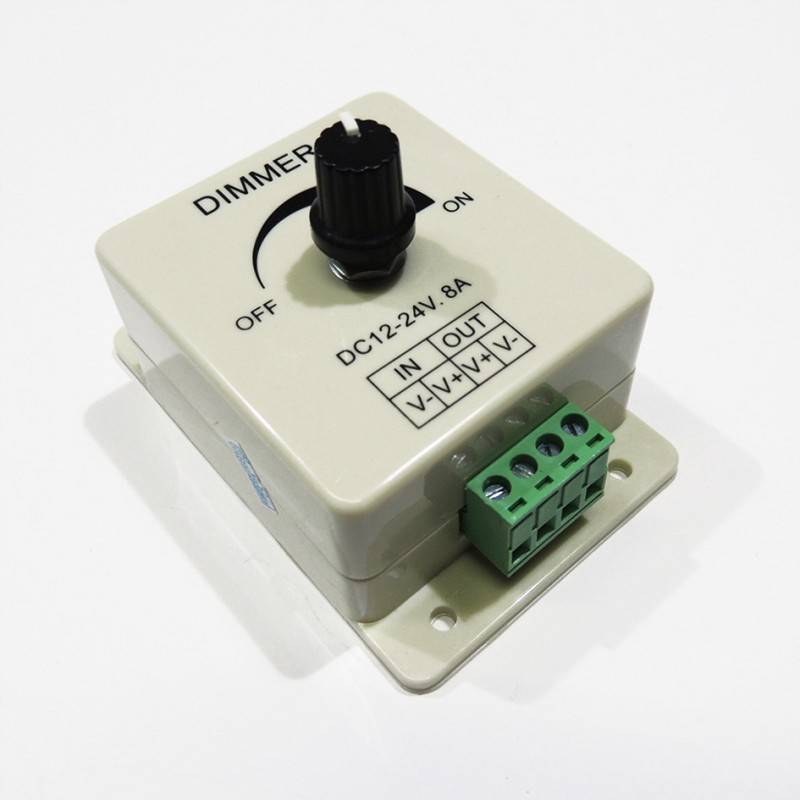

Dimmer for single-color strip 12V/24V 8A
SKU:B1607
€3.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Dimmer single color LED strips at 12/24V
Voltage: 12/24V DC
Amps: 8A
The Dimmer that allows to regulate the intensity of your LED strip, you can lower the intensity getting a dimmer ambient light or raise the intensity for a stronger illumination. All from a single controller.
Technical specifications:
º Input and output voltage: 12 / 24V.
º Amps: 8A
º Output power: 12V<96W // 24V<192W.
º Static consumption: <1W.
º Dimensions: 90 x 59 x 56 mm
º Weight: 60 gr.
Features:
º Compatible with any LED installation at 12/24V (LED strips, MR16 LED bulbs, etc...).
º It can support 5 meters of LED strip SMD 5050 and SMD 5630 of 60 chips per meter.
º Includes instructions for use and assembly.
Certifications: CE and RoHS.
One year warranty.
2018-07-07
Nominal Voltage (V)
12/24V-DC
Power (W)
96-192 máx.
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
90x59x56
Sensor
No
Control system
12/24V-DC
Output voltage (V)
0/24V-DC
Colour control
Monocolor
Connectivity
By wiring
Number of channels
1
Weight (g)
60
Material
Plastic
Use Outdoor
Yes, in a watertight box
Temperature range
-20 ~ +60°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Number of zones
1
Maximum intensity (A)
8A
Questions
| P: Question: |
Dear Sir or Madam Can you offer me a watertight container for this article? Thank you in advance for your efforts and I remain Yours sincerely Dirk Kleinemeier |
|---|
| R: Answer: | Hello We do not have a waterproof container for this model. Barcelona LED: Santiago| 15/04/2023 |
|---|
| P: Question: | According to specifications it supports LED strips of 5m SMD 5050 and SMD 5630 of 60 chips per meter. Does it work for longer distances? Specifically it is for an 8m LED COB 24V-DC 12W/m. If it is not compatible which model would it be. Greetings |
|---|
| R: Answer: | It serves up to 8A, for 24v strips up to 192W. For a strip of 8 meters at 12w/m is enough. |
|---|
| P: Question: |
Good afternoon friends of BarcelonaLed. I am in contact regarding the product Dimmer for single color strip. I would like to add to cart 3 units and there is no way to load them for purchase and so I can make my full order. I hope you can solve it soon. Regards |
|---|
| R: Answer: | Good morning friend Jordi, We have solved the problem and now you can purchase the three units of the dimmer for single color strip. Thank you very much for your interest and patience, |
|---|
| P: Question: | What availability do you have for 10000 units? |
|---|
| R: Answer: | Good morning Roser. Leave us a phone number so we can talk about the deadline and the price, and so we can improve offers. Or call if you can at 9832418081 extension 513 I'm MªJesus. Best regards |
|---|
