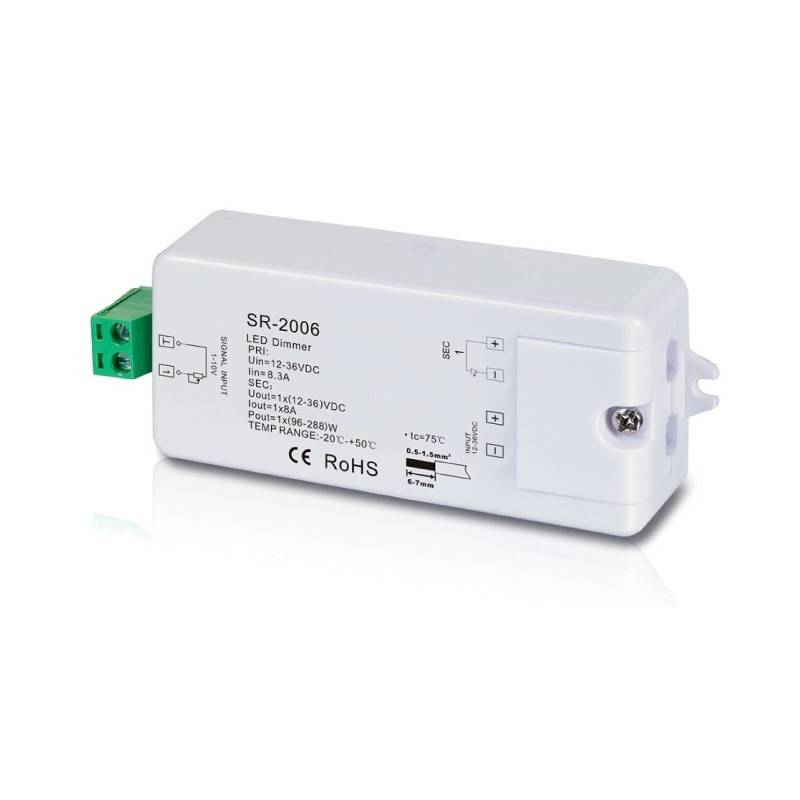

Decoder 0-10V Dimmer 12-36V - 1CH/8A
SKU:D2006
€26.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
0-10V Decoder with 12-36V Dimmer
The Decoder can be controlled with a voltage between 1-10V. The dimmer has 1 channel, with a maximum load of 8A.
It works with voltages from 12V DC to 36V DC, with a maximum output power from 96 to 288W. It can control different types of LED lighting systems such as strips, 12V bulbs, LED washers, etc.
LED drivers with 1-10V interfaces, in combination with suitable controllers and sensors, form the basis for simple and cost-effective lighting systems.
Decoder features:
- Voltage: 12-36V DC
- Number of input signal:1-10V 1 channel
- Number of outputs: PWM 1 channel
- Max. current: 8A/Channel
- Max. power: 96W (@12V) 192W (@24V) 288W (@36V)
- Dimmable via 1-10V
- Analog dimmable input
- Typ. dimming range 0% - 100%
- 256 levels of logarithmic dimming, comfortable to human vision.

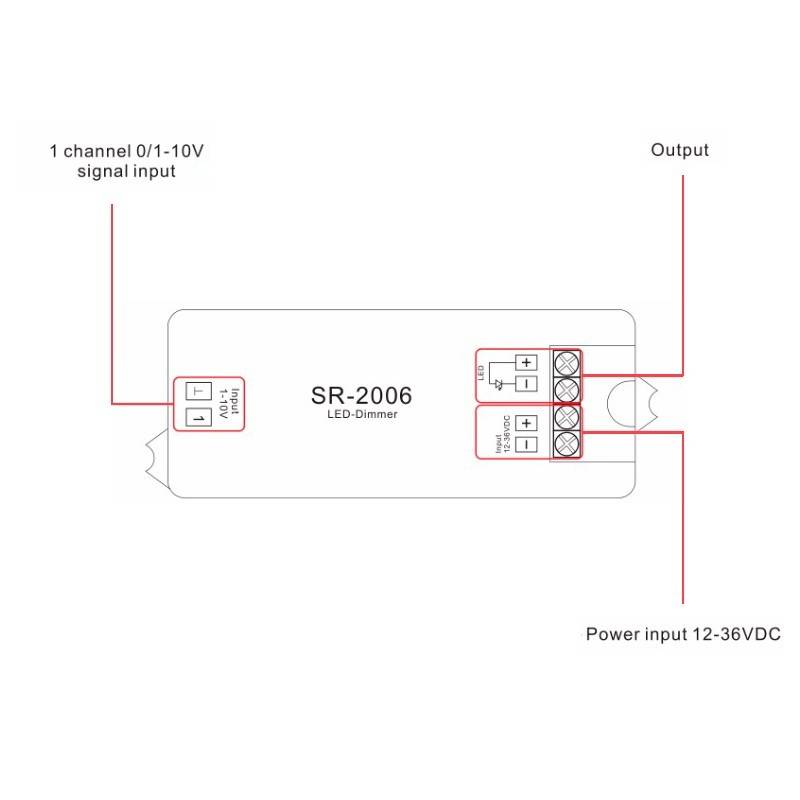

Wiring diagram:
0-10V decoder applications:
- Indoor LED lighting.
Nominal Voltage (V)
12/36V-DC
Power (W)
96-288 máx.
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
82x37x15
Sensor
No
Control system
0/10V-DC
Output voltage (V)
12/36V-DC
Colour control
Monocolor
Connectivity
By wiring
Number of channels
1
Material
Plastic
Use Outdoor
Yes, in a watertight box
Temperature range
-20 ~ +50°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
8A/channel
