Sunricher RF to 0-10V Converter - Perfect RF

Sunricher RF to 0-10V Converter - Perfect RF

SKU:SR-1009(0-10V/PWM)
Has superado el límite de unidades
In stock 158 units
Data sheet

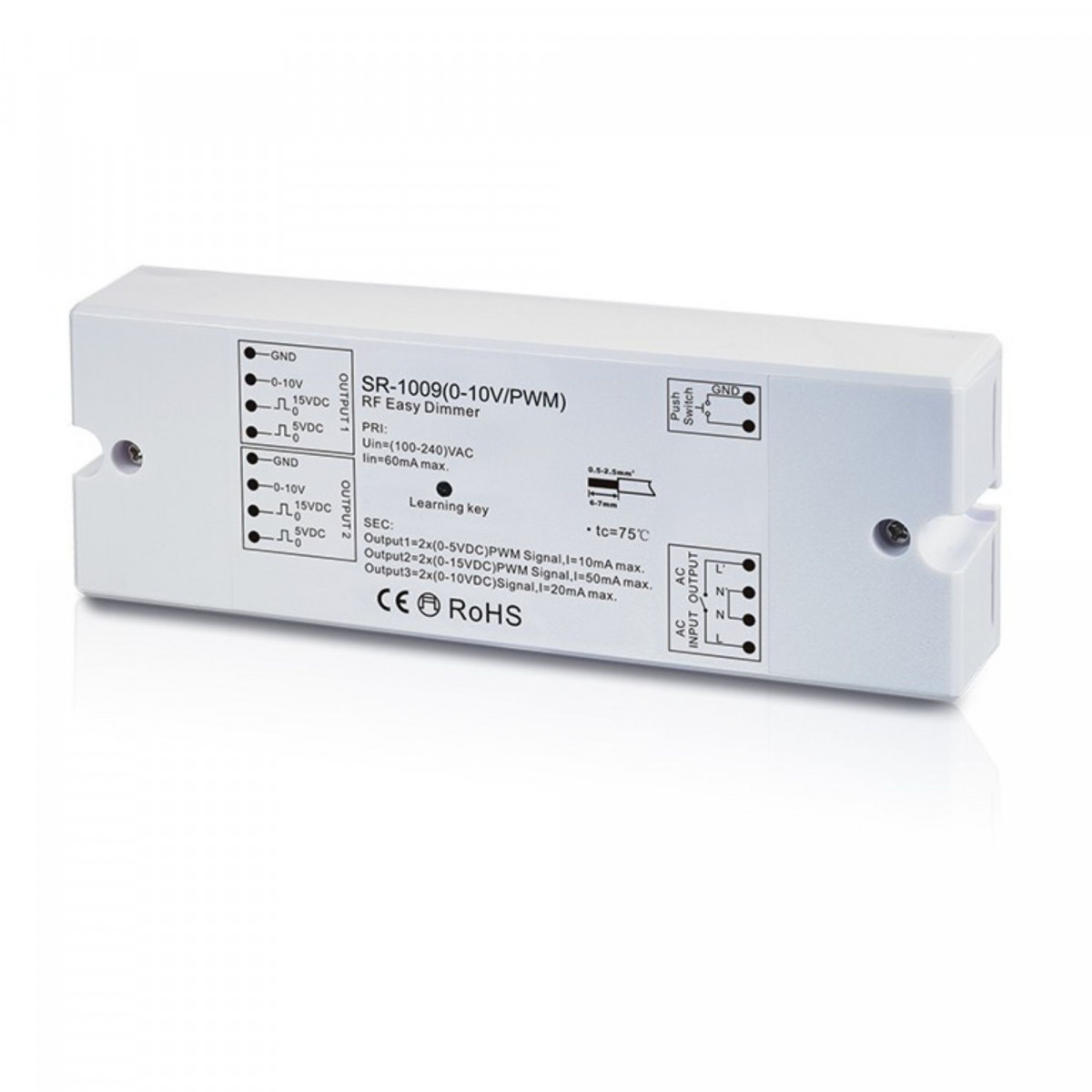

The Sunricher RF to 0-10V Converter receives and transforms the RF signal into a 0-10V/PWM signal for controlling monochrome LED lights.

Its compact size allows easy integration into the existing system, and it supports voltages of 100-240V AC with a maximum current of 60mA.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The Sunricher RF to 0-10V Converter is a device designed to transform radiofrequency (RF) signals into 0-10V/PWM voltage control signals, providing an efficient solution for controlling monochrome LED lights.

It allows precise and customized lighting management, suitable for different needs and environments.

Supports a wide voltage range of 110-240V AC, making it an outstanding choice for advanced lighting management in residential, commercial and industrial environments.

Highly compatible with remote controls (Perfect RF Series) and also with PUSH buttons.

Product features:

  • Input voltage: 110-240V AC
  • Maximum input current: 60mA
  • Output: 2x(0-5V DC) / 2x(0-10V DC) / 2x(0-15V DC)
  • Output signal: PWM
  • Protection rating: IP20
  • Dimensions: 170 x 59 x 29mm

Nominal Voltage (V)
100 - 240 V/AC
IP
IP20
Dimensions (mm) Lxlxh
170 x 59 x 29
Material
Plastic
Use Outdoor
No
Certificates
CE
ROHS
Warranty
5 years
Maximum intensity (A)
60
SUNRICHER
