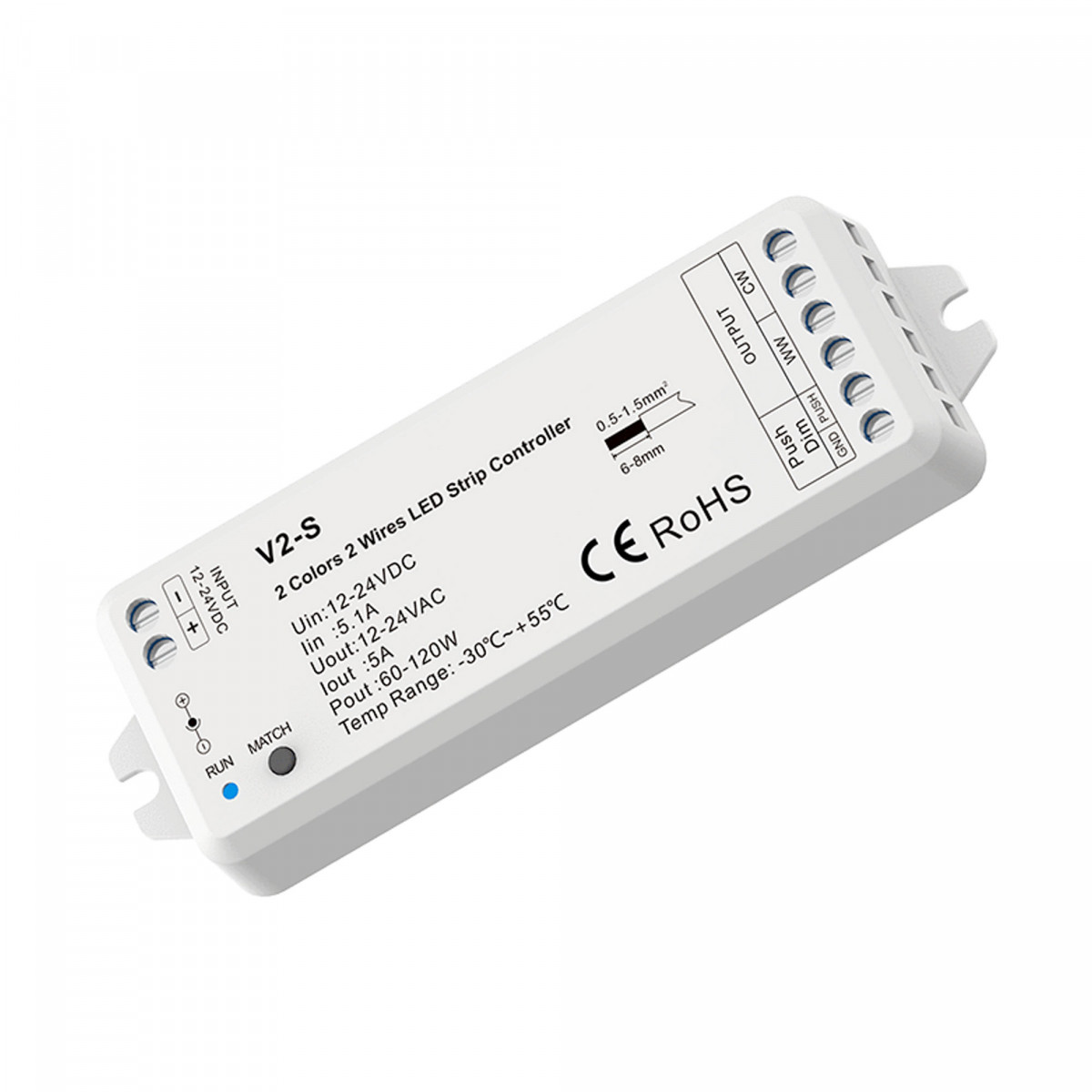

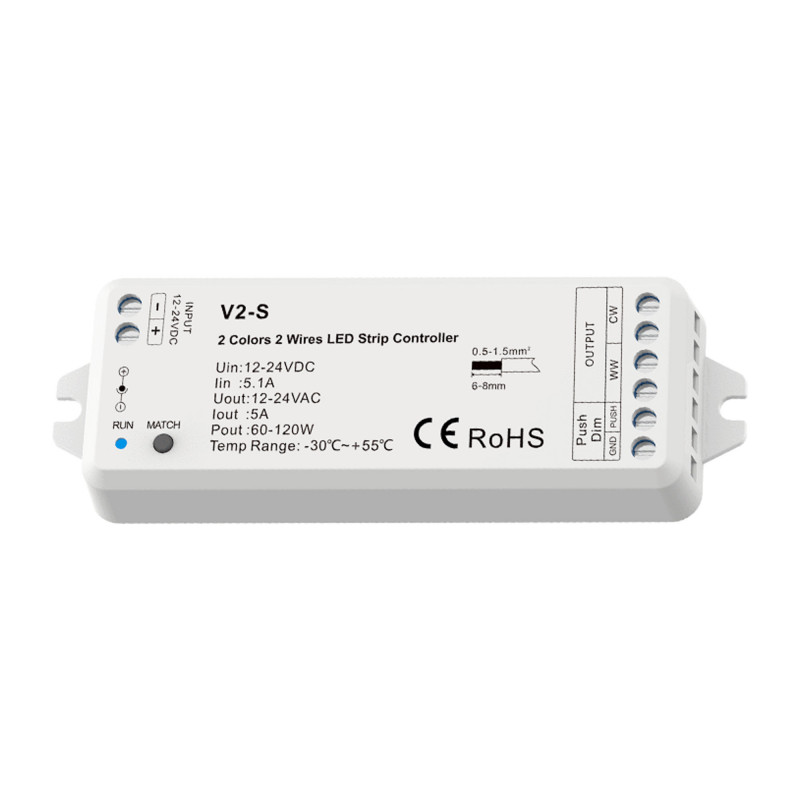

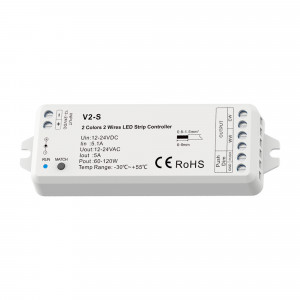

CCT Controller - 12-24V DC - 2 wires - 5A - RF 2.4GHz - PUSH dimmer - Skydance

CCT Controller: Control and efficiency for 2-wire CCT LED strips

This controller is a versatile solution for lighting control in both domestic and commercial environments.

• Compatibility: Compatible only with 2-wire CCT LED strips.


• Adjustable illumination: Allows selection of 3 color temperatures: warm white, neutral white and cool white.


• Flicker-free dimming: Offers 0-100% dimming in 4096 levels.


• Remote control: Compatible with CCT RF 2.4GHz Skydance remote controls.


• Multiple control: A single controller can accept up to 10 remote controllers, and one controller can control an unlimited number of controllers.


• High load capacity: Support maximum 5A.

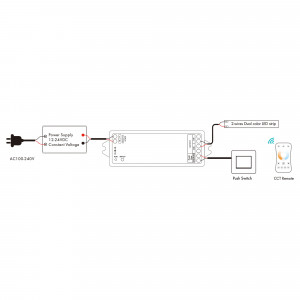

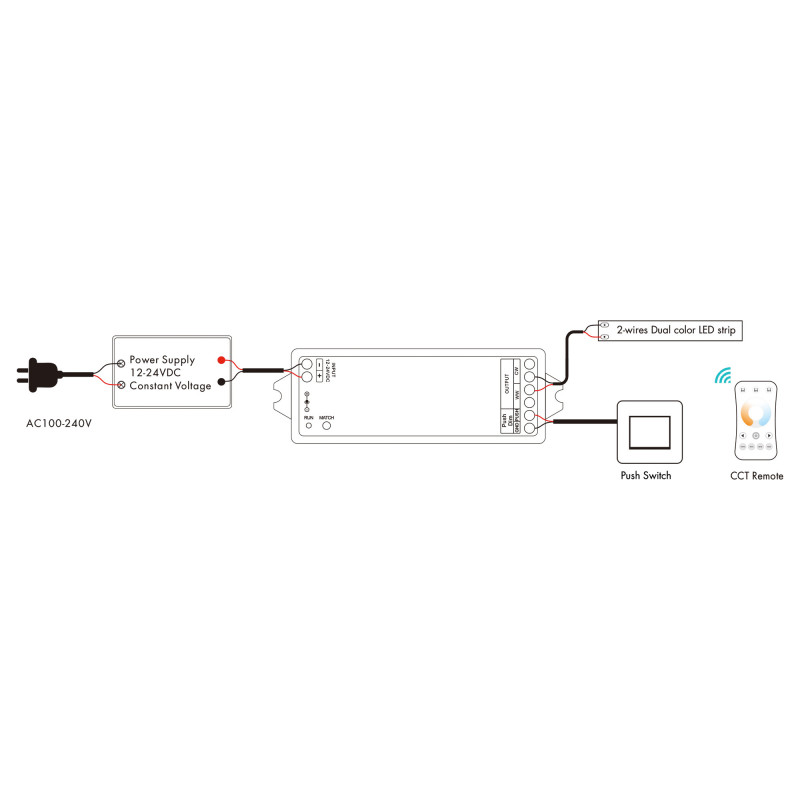

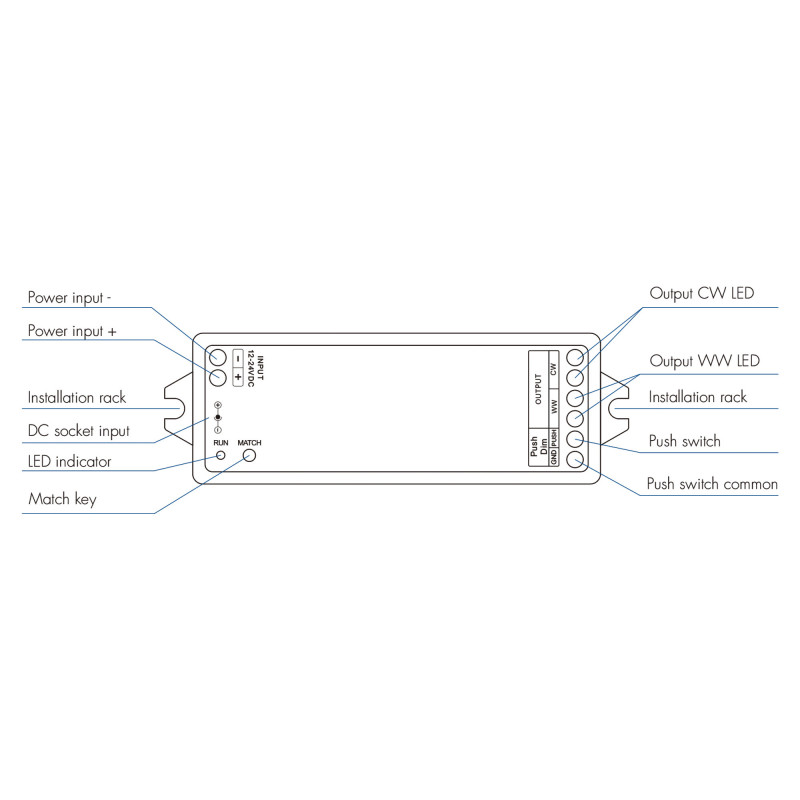

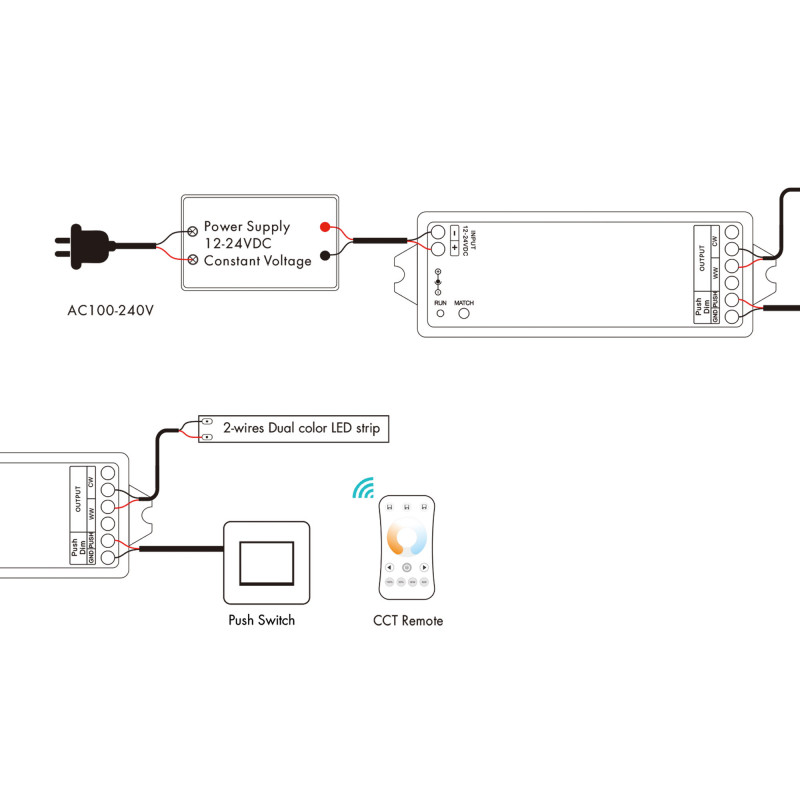

• PUSH dimming: Can be dimmed by PUSH, connecting to an external switch, for ON/OFF and 0-100% dimmer functions.


• Safety protection: Equipped with overheat, overload and short circuit protection.

Innovative functions:

• Auto-transmission: Extends the remote control range up to 30 meters.

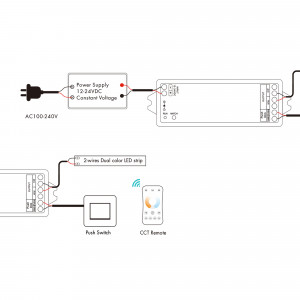

• Auto-synchronization: Synchronizes multiple receivers within 30 meters for uniform illumination.



Technical specifications:

✔ Input voltage: 12-24V DC.
✔ Output current: 5A max.
✔ Transmission frequency: 2.4GHz.
✔ Control Distance: 30m
✔ Operating Temperature: -30°C to +55°C
