SKU:B2
Has superado el límite de unidades
Out of stock
Data sheet

The touch control panel offers complete lighting control for CCT Miboxer/Milight 2.4G LED luminaires.

With a sleek, high-sensitivity touch interface it allows for easy and intuitive adjustment of brightness and color temperature.

Compatible with the Mi-Light/MiBoxer line of LED controllers.

** Powered by 2 AAA batteries - NOT included**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Elegant and Practical Design

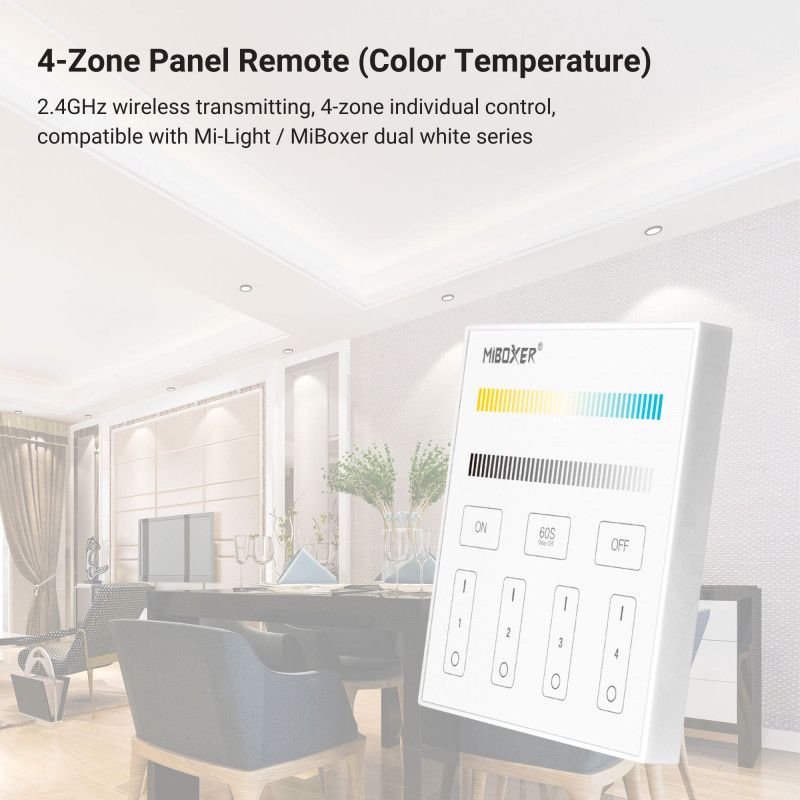

The MiLight Touch Panel stands out for its modern and elegant white design, capable of elevating the aesthetics of any space.

Its backlit touch screen allows precise and intuitive control of CCT lighting with a range of up to 30m.

It features high speed 2.4GHz RF transmission with low power consumption.

Versatile Lighting Control

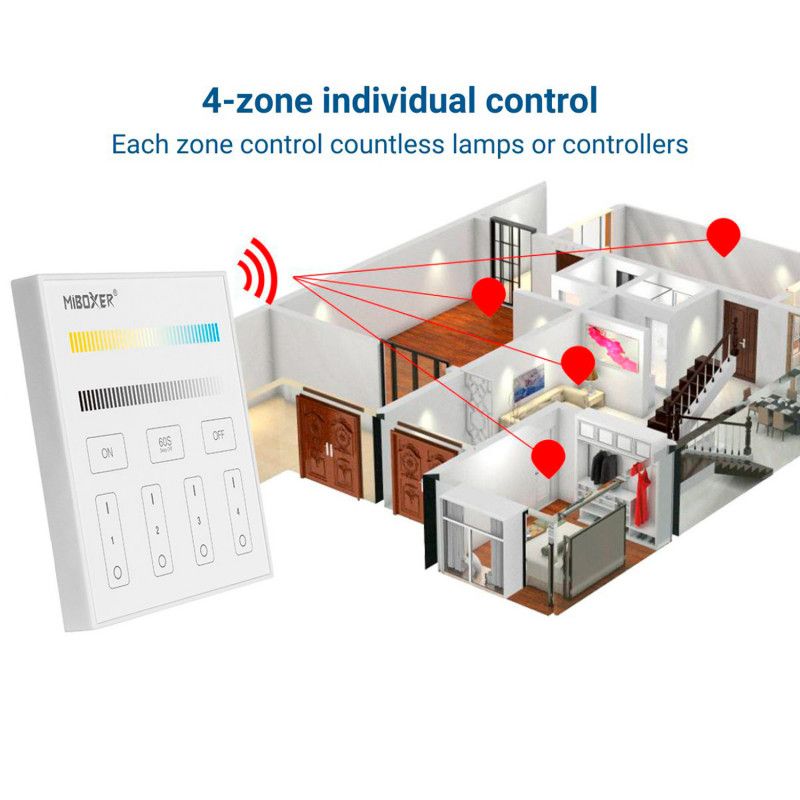

This touch panel allows the control of 4 zones either collectively or independently, enabling customized lighting adjustments in brightness and color temperature for each space, aligning with the latest trends in interior lighting.

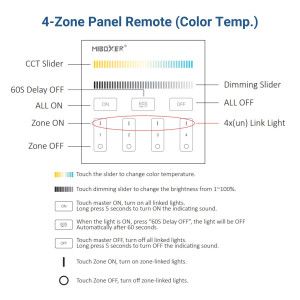

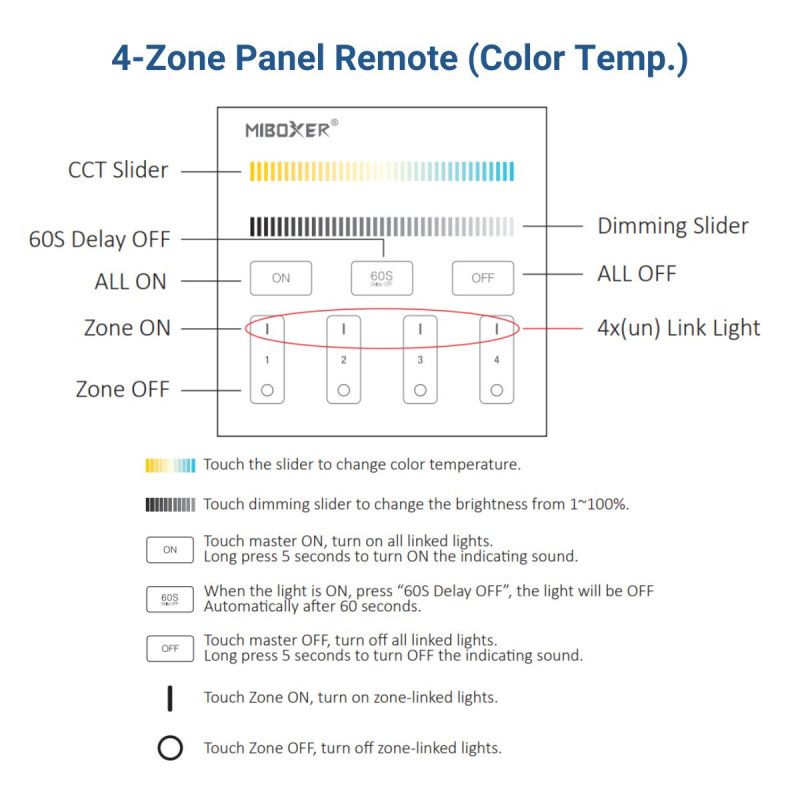

Functions:

  • Confirmation sound when pressing any key.
  • Brightness panel: Allows control of light intensity from 0%-100%.
  • Color temperature panel: Controls the CCT color temperature.

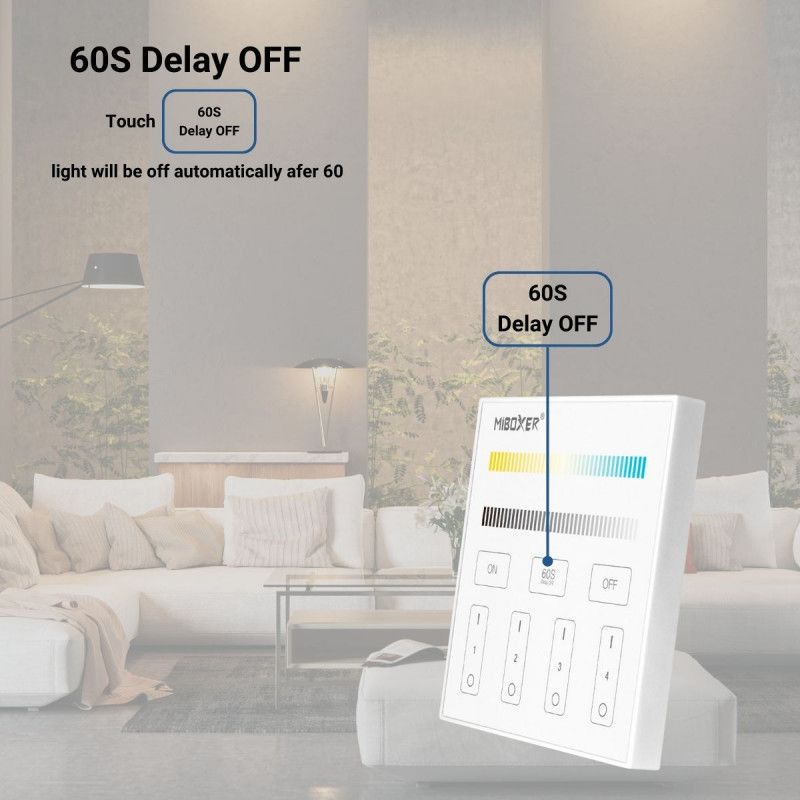

  • 60 Second Auto Timer: Pressing the "60S" button will automatically turn off the light after 60 seconds.

Product features:

  • 4 zones
  • Input signal: Touch
  • Output Signal: RF 2.4GHz
  • Powered by 2 AAA batteries (not included)
  • Dimensions: 86 x 86 x 16 mm
  • Standby power consumption: 0.15W
  • Transmitting power: 6dBm
  • Colour: white
  • Indoor use: IP20
Nominal Voltage (V)
100 - 240 V/AC
Lifetime (h)
30000
IP
IP20
Dimensions (mm) Lxlxh
86 x 86 x 16
Sensor
No
Colour control
CCT
Battery Type
3V (AAA * 2PCS)

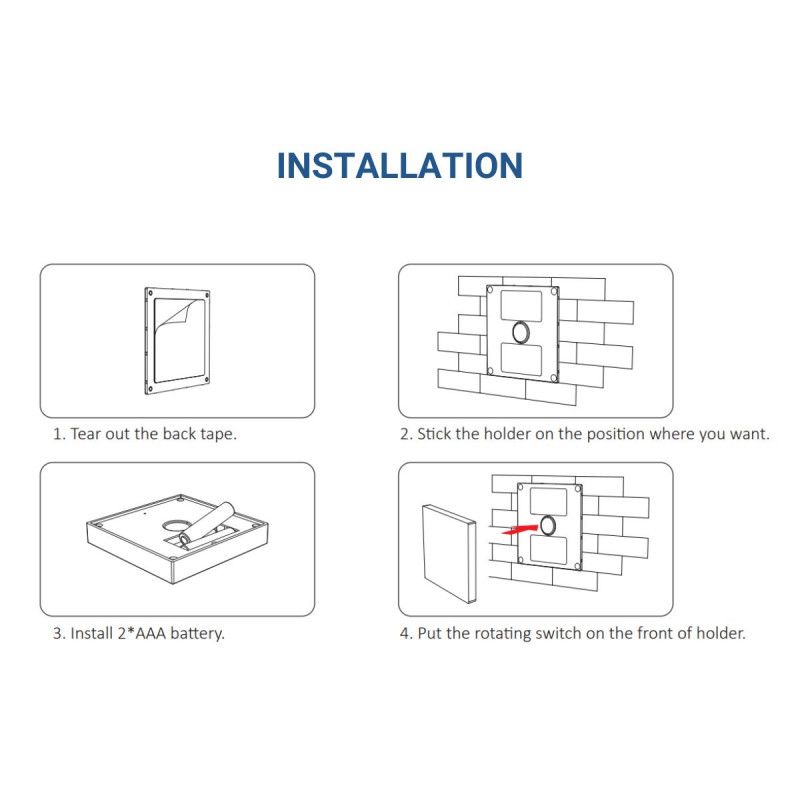

Mounting
Surface
Material

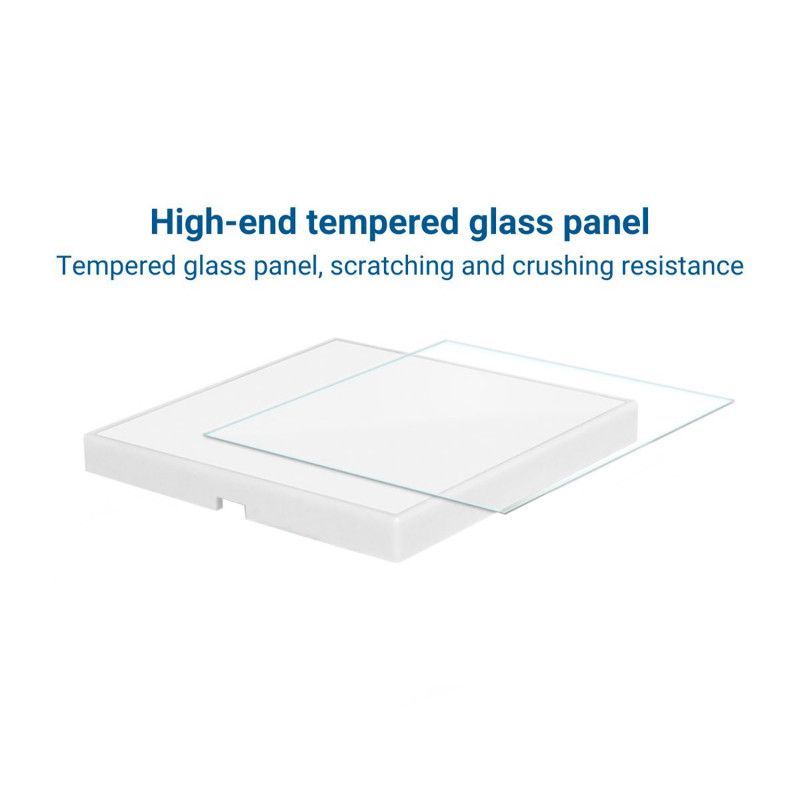

Glass
Polycarbonate
Frequency of use
Normal
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Control Distance
30m
