SKU:SR-2819S-CCT
Has superado el límite de unidades
In stock 60 units
Data sheet

The SR-2819S-CCT LED color temperature controller is a remote controller that offers quick and precise color temperature adjustment and independent brightness regulation for each target. Designed with a touch color wheel, the color temperature controller can adjust the color temperature for natural white, warm white and cool white LEDs.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

CCT Radio Frequency Temperature Controller, 4 control zones

The CCT Radio Frequency Temperature Controller is a 4-channel remote controller consisting of an ultra-sensitive touch-sensitive glass color wheel that can be used to quickly and accurately set the desired temperature tone.

Each controller can control up to 4 zones separately or synchronously with countless receivers in each zone. Coast of 10 different lighting presets which can be paused and resumed whenever desired while in use. It also has the function to store own settings, you can store up to 3 scenes for each zone, so you have the possibility to use up to 22 lighting settings (12 own settings plus the 10 pre-installed).

The CCT LED controller can control the intensity of each individual CCT temperature channel.

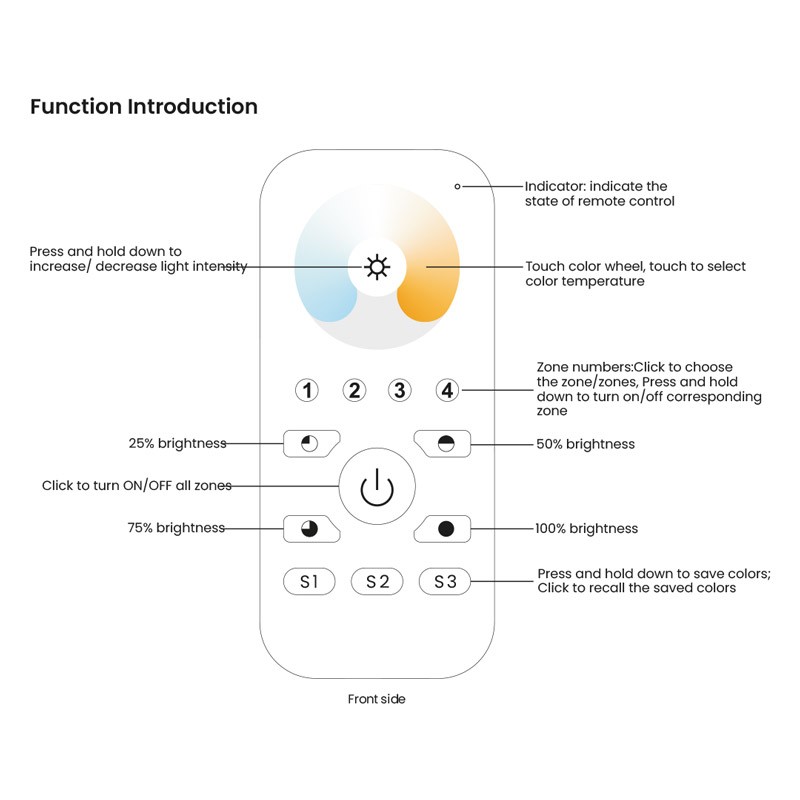

  • User-friendly interface and easy operation.
  • Operation return function (if the product is turned off or disconnected, the last used settings will be saved).
  • Control of up to 4 zones. Each zone can be configured with an infinite number of receivers.
  • Each receiver can be controlled by up to 8 different remotes.
  • Set of 3 scenes for each zone. This allows you to create programs with different functions and save them.

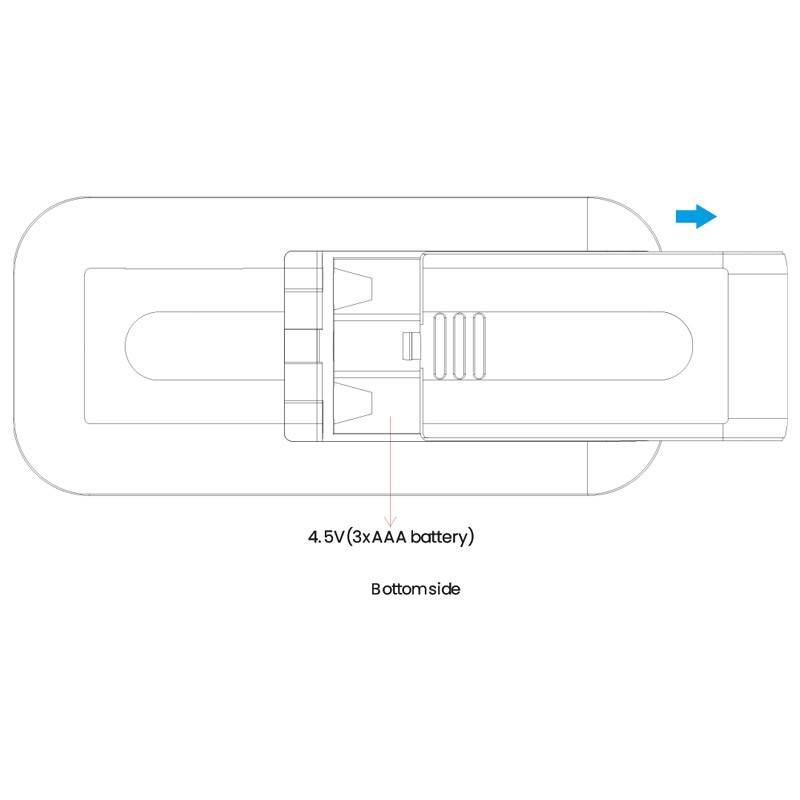

Nominal Voltage (V)
4.5V/DC
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
120X55X17mm
Detection range (m)
25000
Sensor
No
Colour control
CCT
Material
Plastic
Use Outdoor
No
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: What controller to use with this controller?
I want to use your led strip 24v CCT 90w to place in two separate sections in the same room (a section of 6m that turns on with a switch and another of 4 that turns on with another). Each switch would turn on a different trafo that feeds a controller and that to its led strip. I want that with the same controller I can adjust the temperature and intensity of both sections of LED strip, but it is indifferent to have different settings separately, ie, I do not care that both have to have the same intensity and color to act with the same controller. Is this the one I should use? Is there another cheaper one that I can use that does not have separate configurations? Thank you. I really like your products.
R: Answer: The SR-1009FA controller
