Color temperature controller / dimmer and RF controller for LED strip CCT 12/24V-DC 12A
SKU:B1626-2
€22.45
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
CCT 12 AMP 12/24V DC CCT CONTROLLER

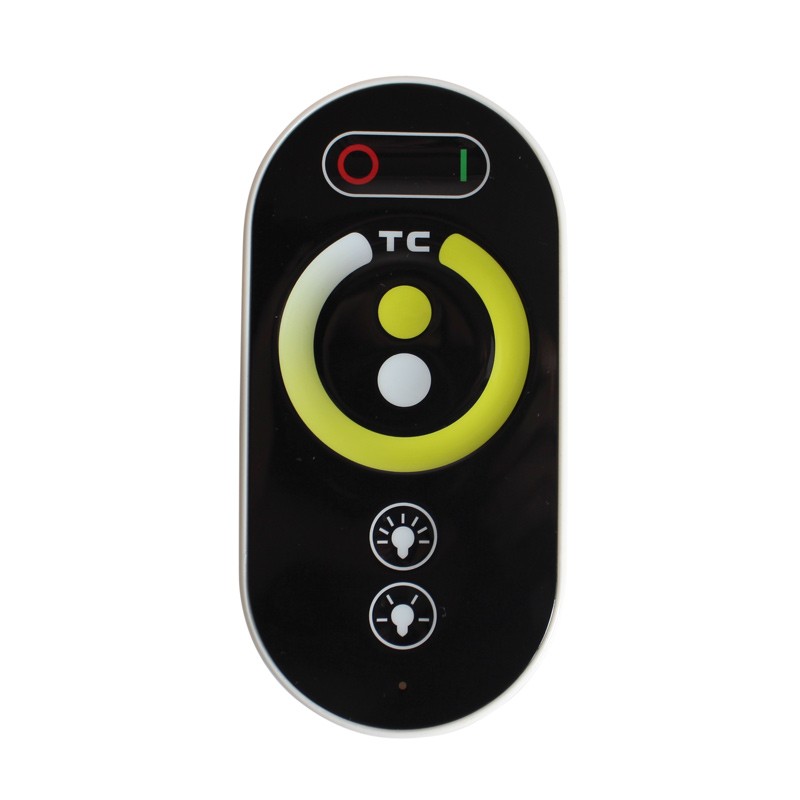

The 12 amp CCT controller includes the remote control with its three AAA batteries so you can easily choose the program you prefer. It is used to control the color temperature, you can switch from warm white to cool white and other lighting change effects to dim the brightness of the light.
Remarks of using the controller: connect the charging cable at the beginning, following the power cord. The power supply voltage range is DC12/24V, higher range may burn out the controller.
Technical specification.
CONTROLLER:
- Powered by 3 AAA batteries (included).
- Manages 2 channels of 6A each simultaneously.
- Touch CCT circle to adjust the color temperature.
- Reception distance: 30 meters.
- Wireless Frequency: 433.92 Mhz.
CONTROLLER:
- Voltage: 12/24 Volts.
- Output channels: 2
- Output Control: 6 Amps each channel.
- Connection method: Common anode.
CCT controller for LED strips features:
- Compatible with any CCT LED fixture (CCT LED strips , CCT LED Bulbs, etc.).
- 25 adjustable brightness levels.
- 100 adjustable speed levels.
- More than 640000 possible colors.
- 21 default lighting effects.
- Certifications: CE and RoHS.
Application of LED Controller
Nominal Voltage (V)
12/24V-DC
Power (W)
192-384 máx.
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
83x79x33
Detection range (m)
30000
Sensor
Yes
Control system
12/24V-DC
Output voltage (V)
0/24V-DC
Colour control
CCT
Connectivity
Radiofrequency
Number of channels
2
Material
Aluminium
Plastic
Plastic
Use Outdoor
Yes, in a watertight box
Temperature range
-20 ~ +60°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Number of zones
1
Maximum intensity (A)
6A/channel
Questions
| P: Question: |
Hello, could you tell me how to connect two CCT 90w LED strips each in a channel (6A) of the two that you have? The terminals are marked V+,W C i C. In total I need 7.5A. Thanks |
|---|

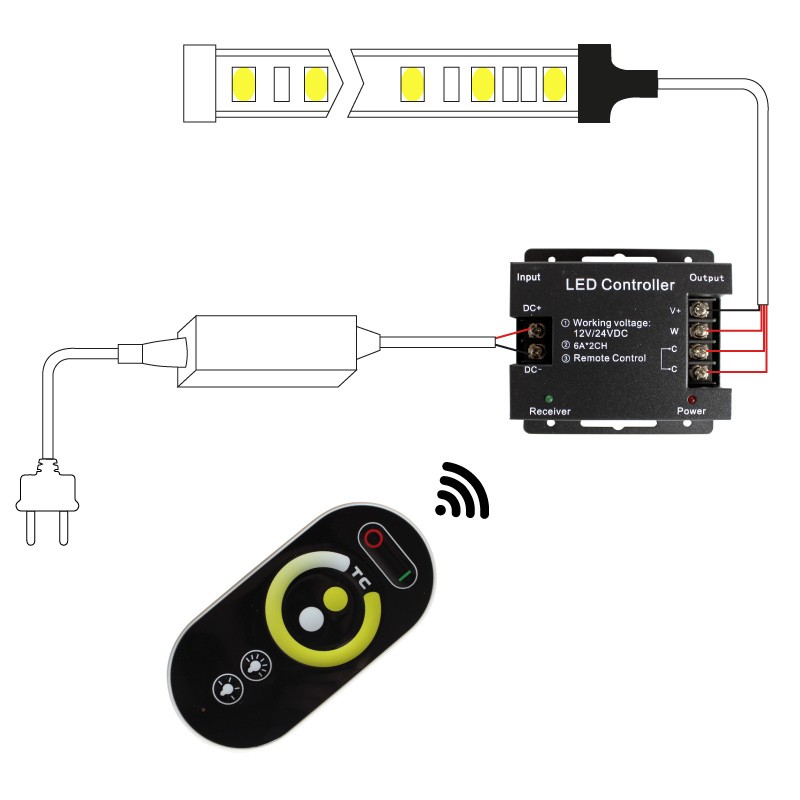

| R: Answer: | The positive of the strip goes to V+ , the cold channel to C and the warm channel to W. |
|---|
| P: Question: |
Hola, vale para la TIRA LED A 24V-DC 90W (600 SMD2835) BOBINA DE 5ML IP20 2700-6500K TEMP. COLOR REGULABLE (CCT) |
|---|
| R: Answer: | Yes, the B1626-2 is for Dual (CCT) LED strips. |
|---|
| P: Question: | hello, I have several rooms and I want to put this controller in each one of them, will they work independently when using one or when I operate one will the others work? thanks. |
|---|
| R: Answer: | In principle, each controller is synchronized with its controller, although several can be synchronized with a single controller. |
|---|
| P: Question: |
Hello For a Dual 220V strip would it work for me? I can't find any CCT controller for 220V. My strip is 20m and 12W/m. Thanks |
|---|
| R: Answer: | We do not have CCT strips at 220vac. This controller only works in DC voltage of 12 or 24vdc. |
|---|
| P: Question: | I want to mount two 24V LED strips in a camper van with 12v installation, do you have any source that works from 12v to 24v? |
|---|
| R: Answer: | If your installation is 12v you can put the 12v led strip directly, we do not have voltage boosters. |
|---|
| P: Question: |
Hello, I was wondering if this cct led controller would be enough to connect 11m of cct led strip in a row, or do I need some kind of amplifier? On the other hand I would like to ask you if you have any transformer to connect those 11 meters, what power do I need? Thanks |
|---|
| R: Answer: | The color temperature controller can be used with 12v and 24v strips. The 12v strips can be used up to 5mts and 24v can be used up to about 10mts without repeaters, 11 meters of 24vdc CCT strip should not be a problem, for the B1514-D model you will need a power supply of about 200W. |
|---|
