Dali Dimmer DC 12-36V 5A/Channel (4 channels in 1)

DALI Dimmer SR-2302B Constant Voltage Dimming Controller

The SR-2302B DALI Dimmer is a constant voltage LED dimming controller with 4 channels of 5A per output channel. It complies with standard DALI protocol with 1 DALI address to control 4 channels synchronously.

The DALI address can be manually assigned and displayed on the digital numeric or automatically assigned by the controllers. It has 1 DALI address for 4 channels to operate synchronously. The DALI dimmer can achieve smooth dimming from 0% to 100% by logarithmic dimming, which is perfect for human vision.

DALI dimming and is specially designed for evenly dimmable LED lighting, with no dimming jumps, no flickering, and no noise.

Compatible with Tridonic software. App for users to control their individual luminaires via wifi network.

Main features

• Matches all DALI systems on the market.
• Manual/automatic DALI address setting.
• Indicates the DALI address digitally.
• Four channels with the same address.

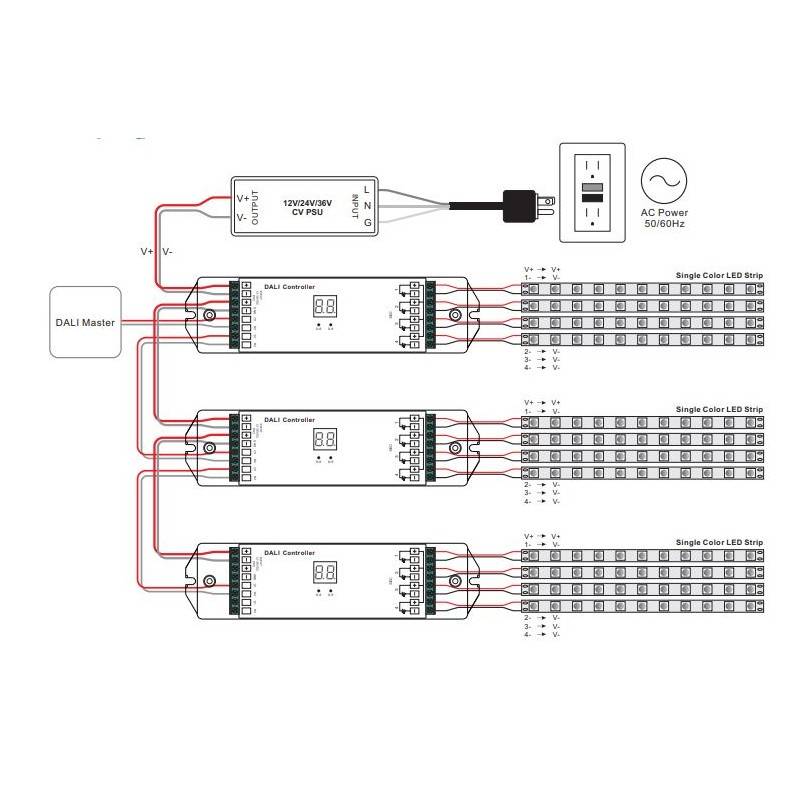

• Works with a power repeater to expand the output power unlimitedly.
• Waterproof rating: IP20.
• DALI certified.
• TUV CE certified.

Technical features of DALI DC 5A/Channel Dimmer (4ch in 1)

• 12-36V-DC
• Output current: 4x5A
• Output power: 270-720W.
• Constant voltage.

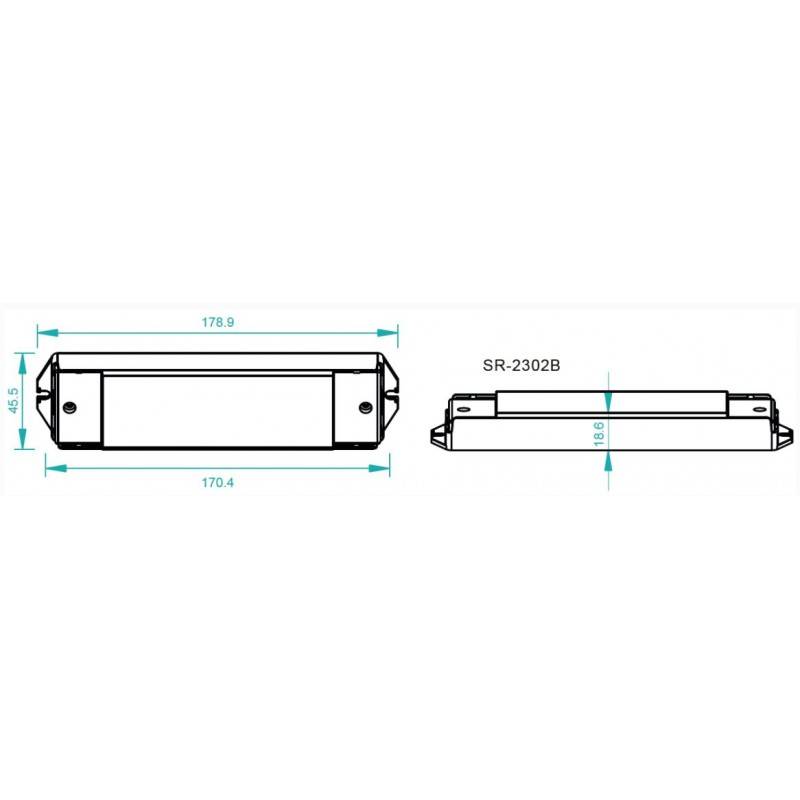

• Dimensions: 46x178x18mm
• IP20
• Certifications: CE, RoHS, TUV.
• Two-year warranty.
