12-36V IR proximity sensor switch for cabinet doors
SKU:SR-8001BDC
€22.55
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

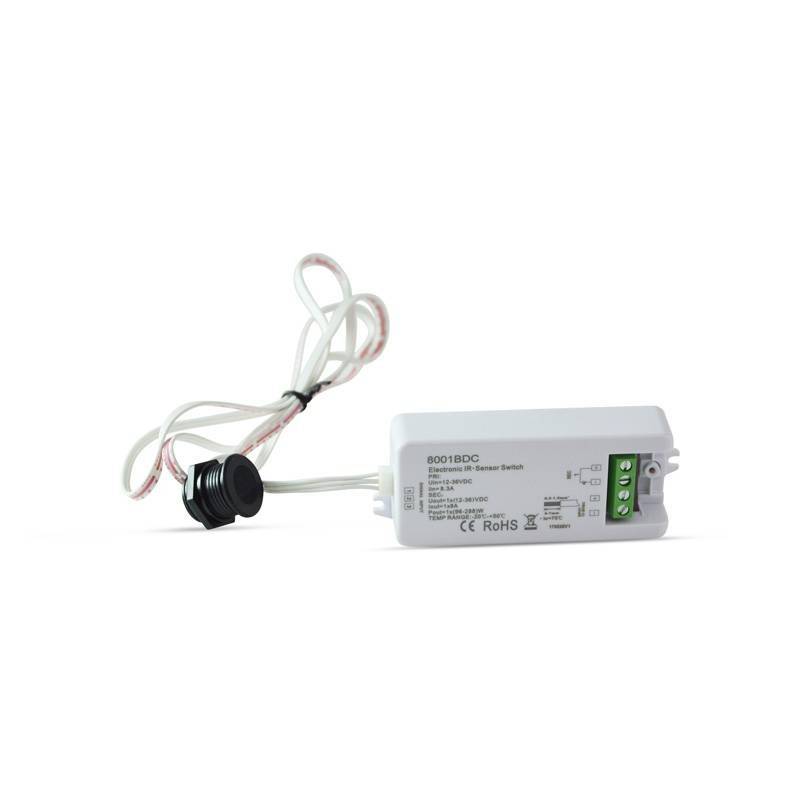

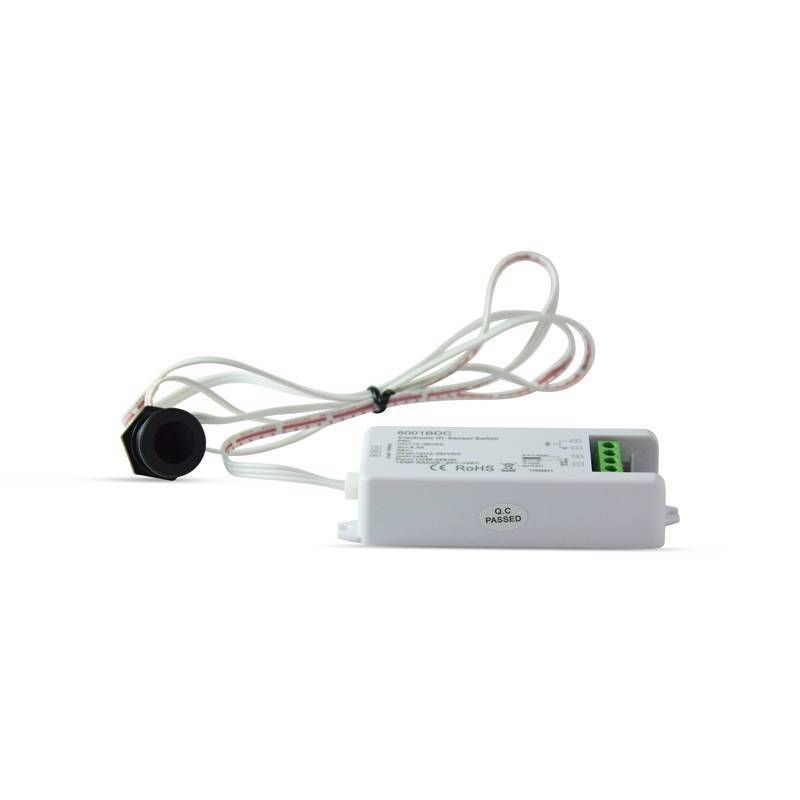

12-36V IR Switch with Object Proximity Sensor

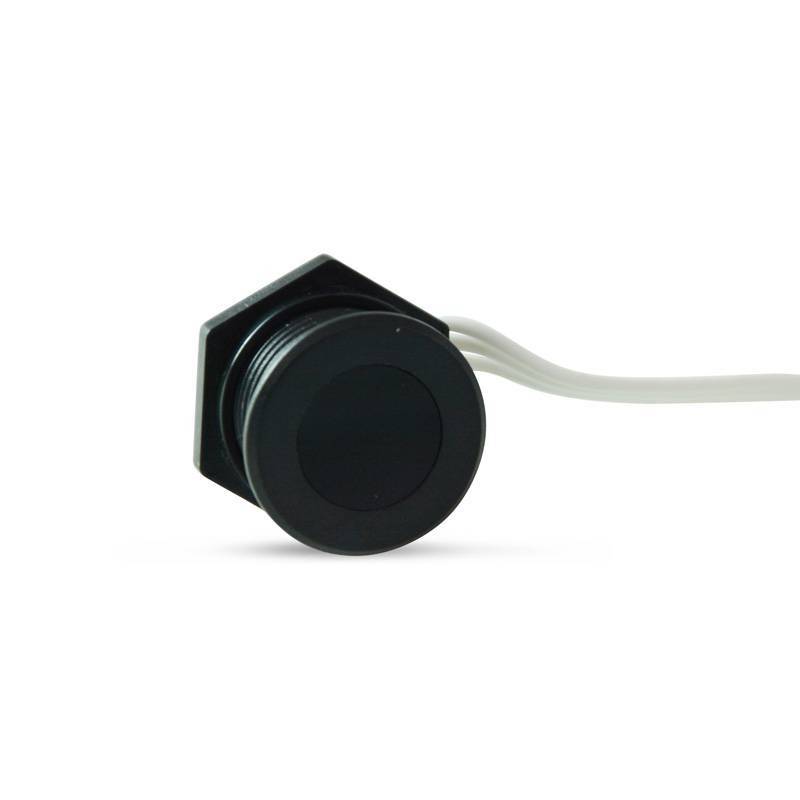

The IR Switch with Sensor operates using high sensitivity infrared and operates in a sensing range of 1 to 6cm. It is designed with a compact size for easy installation. The visible part is small, round and black, ideal for hiding it in any corner.
How does it work?
The IR Switch with Proximity Sensor keeps the light on, but when the sensor's detection area is covered by an object or door, the light turns off. It requires a simple installation, as it can be recessed in the wall or in the furniture.
IR Motion Sensor Switch Applications
The IR Switch with Motion Sensor is ideal for application in bathroom cabinets, behind the kitchen door, on furniture, etc. The light will turn on when the door is opened, and turn off when the door is closed.
Features of IR Motion Sensor Switch
- Sensitive to detection of objects within the operating range (1 to 6cm)
- 12/36V circuit operation
- Stable and high quality sensor head
- IP 20
Safety and warnings of the IR Motion Sensor Switch
- Disconnect the power supply from the line before installation.
- Do not expose the device to moisture
IR Motion Sensor Switch Wiring Diagram
2018-06-02
Nominal Voltage (V)
12/36V-DC
Power (W)
96-288 máx.
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
95x37x20
Detection range (m)
60
Sensor
Yes
Control system
12/24V-DC
Output voltage (V)
0/36V-DC
Colour control
Monocolor
Connectivity
By wiring
Material
Plastic
Use Outdoor
Yes, in a watertight box
Temperature range
-20 ~ +50°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
5 years
Questions
| P: Question: |
Can the shutdown delays of 60 seconds or the factory default be changed with any internal or external adjustment? Thank you |
|---|
| R: Answer: | This proximity sensor has no time delays, when the sensor detects a proximity signal it turns off the light connected to the output. |
|---|
| P: Question: | good I just bought 2 sensors but I thought they came to 220V that I need before hooking a transformer 220 to 36V ???? THANK YOU. |
|---|
| R: Answer: | The motion sensor switch is used for voltages between 12 and 36Vdc. It is to control strips led of 12vdc or 24vdc and it is necessary to make use of the power supply that corresponds to it. Power supply > sensor > led strip. |
|---|
