Mini single-color PWM controller 12-36V - Pulse control

SKU:SR-2901S
Has superado el límite de unidades
In stock 175 units
Data sheet

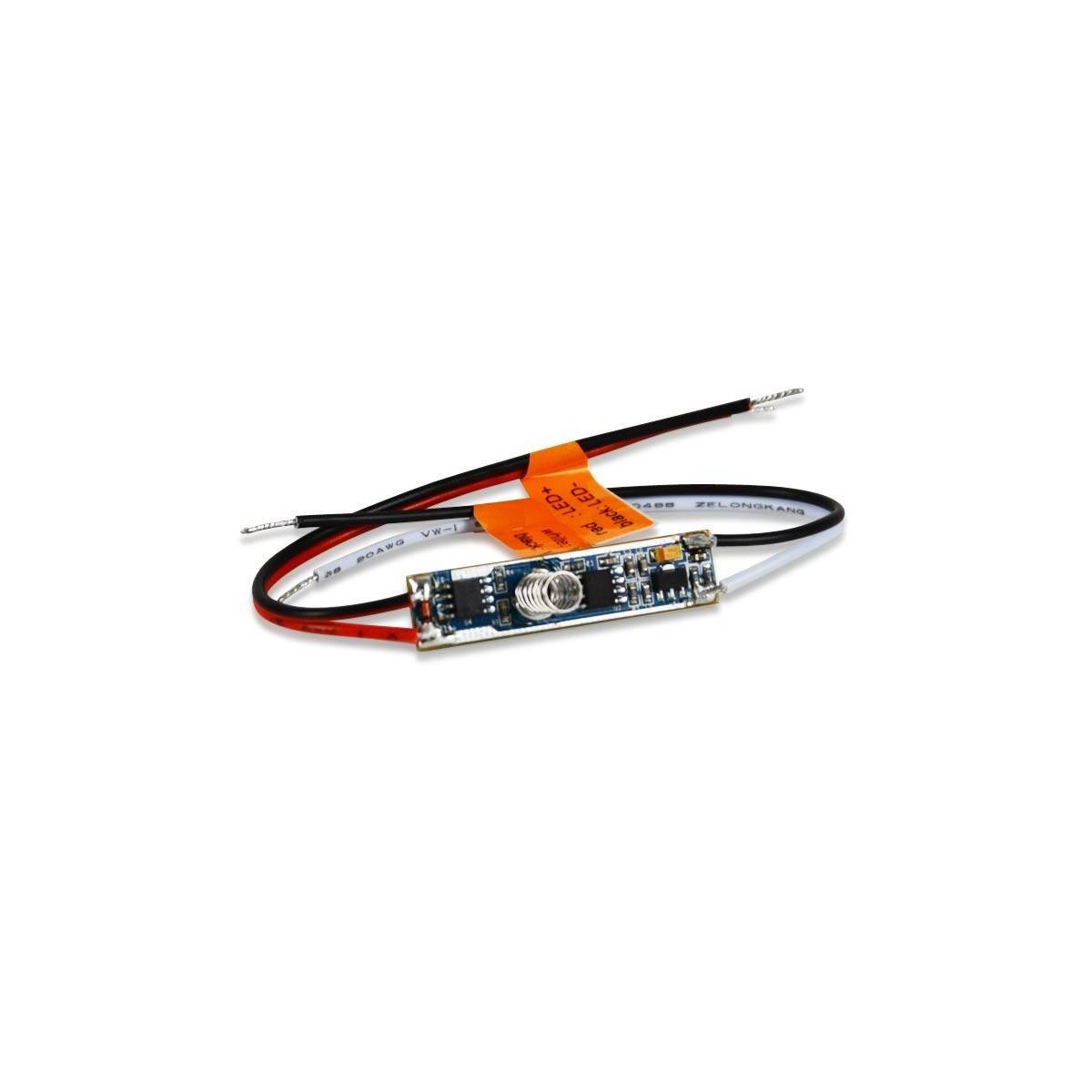

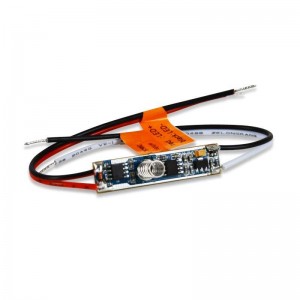

Mini single color PWM controller for LED strip profiles. Compatible with 12-36V LED strips.

Full integration into the profile, and touch control for on/off and dimming.

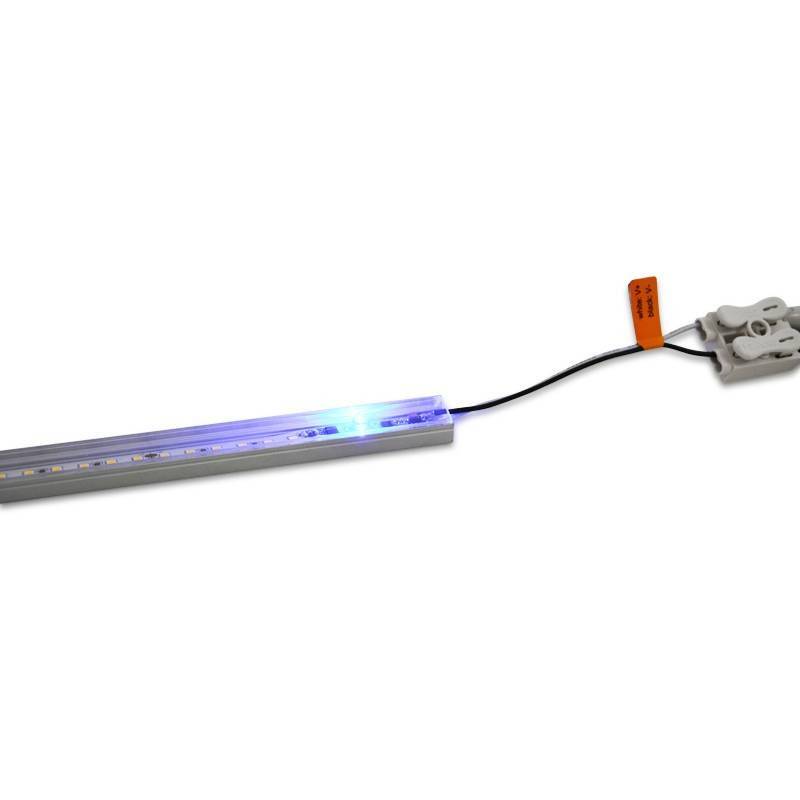

Transforms your profile into a luminaire with integrated push button.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Mini single color PWM controller: Versatility and control for your LED strips

The Mini PWM single color 12-36V controller is the perfect solution for integrating touch control into your LED strip installations. It allows you to turn on, turn off and adjust the intensity of the lighting with a touch.
Main features:

  • Voltage compatibility:

✔ 12V (3A) - 36W max.

✔ 24V (3A) - 72W max.

  • Serial mounting: installs between power supply and LED strip.

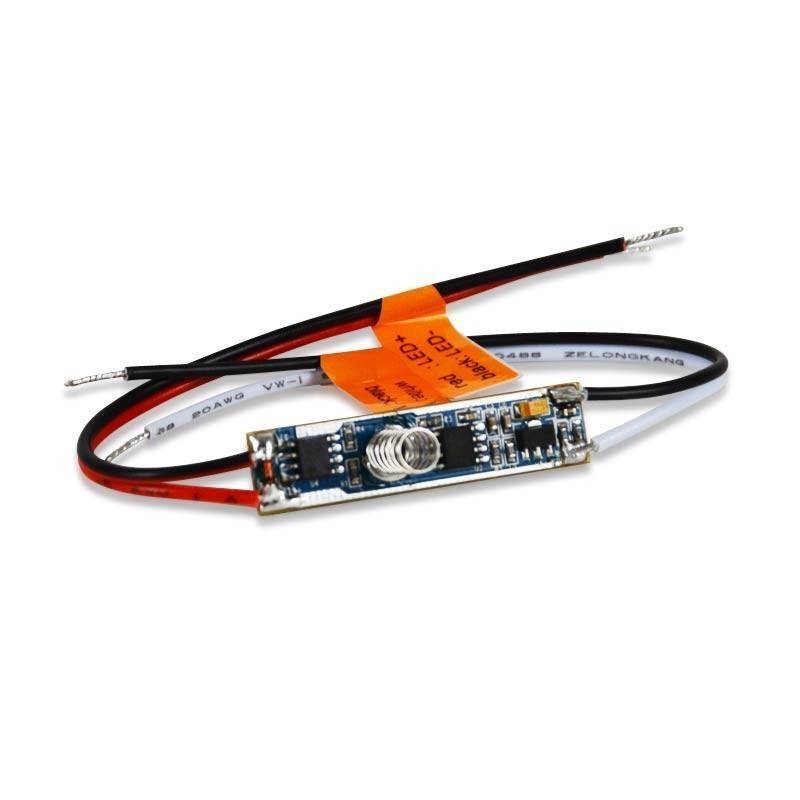

  • Easy connections:

✔ Power supply to Mini controller: White (+), Black (-).

Mini controller to LED strip: Red (+), Black (-)

  • Capacitive touch control:

✔ Short press: On/Off.

✔ Long press: dims the light intensity.

  • Blue light indicator: Illuminates when on.

  • Power outage operation: If the power is interrupted, the mini controller lacks memory, so the light will remain in the off state.

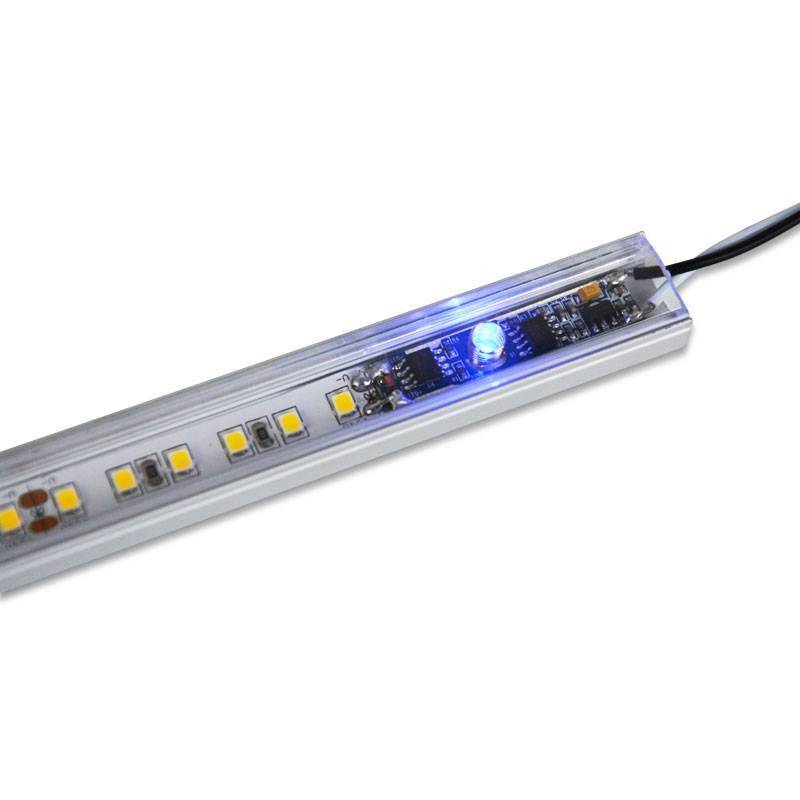

  • Compact design: Fits perfectly within the profile of the LED strip. Compatible with diffusers up to 1.5mm thick.

2018-06-02
Nominal Voltage (V)
12-24V
Power (W)
36-72 máx.
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
41x10x3
Sensor
No
Output voltage (V)
Colour control
Monocolor
Number of channels
1
Use Outdoor
No
Temperature range
-20℃~+50℃
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3
SUNRICHER

Questions

P: Question: Hello I would like to know if it is possible to mount the mini controller at the beginning and end of a led strip as if it were a switch.
If it is not possible what kind of solutions are there to be able to control a strip from 2 points.
R: Answer: The mini controller is for LED strip lighting in profiles, two-point switching controller is not possible. A strip controller "D2501NS" synchronized with two wireless push buttons can be used.
