SKU:CTL-AAW-MONO-34
Has superado el límite de unidades
In stock 181 units
Data sheet

Compact smart single-color controller for 5-24V DC LED strips.

Through WiFi or Bluetooth it allows full control from your mobile device via Smart Life or Tuya App.

In addition, it's compatible with virtual assistants such as Amazon Alexa and Google Assistant.

It offers exclusive single color control, with effects such as flashing, dimming or static color.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

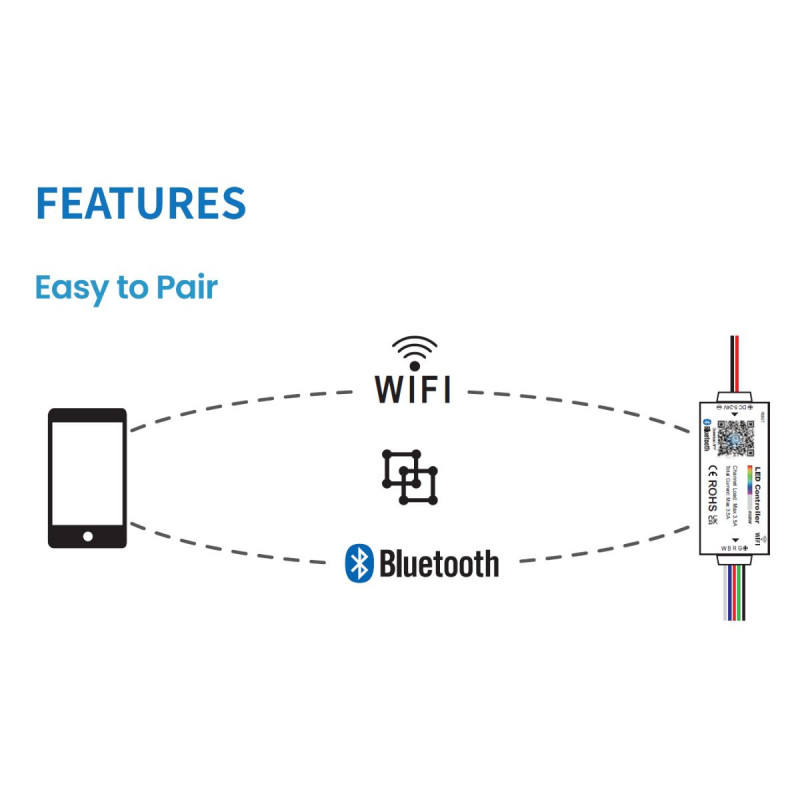

This controller enables innovative and intuitive lighting management from your cell phone, via WiFi or Bluetooth connection.

From static color to dynamic effects such as dimming, flickering and gradual change, it offers a full range of options to customize your lighting experience.

Compatible with Smart Life apps, Tuya App and voice commands such as Amazon Alexa and Google Assistant.

Its compact design ensures easy integration into any space, without compromising power or functionality.

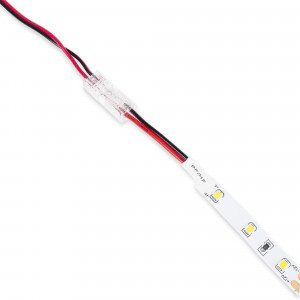

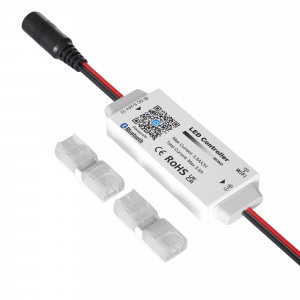

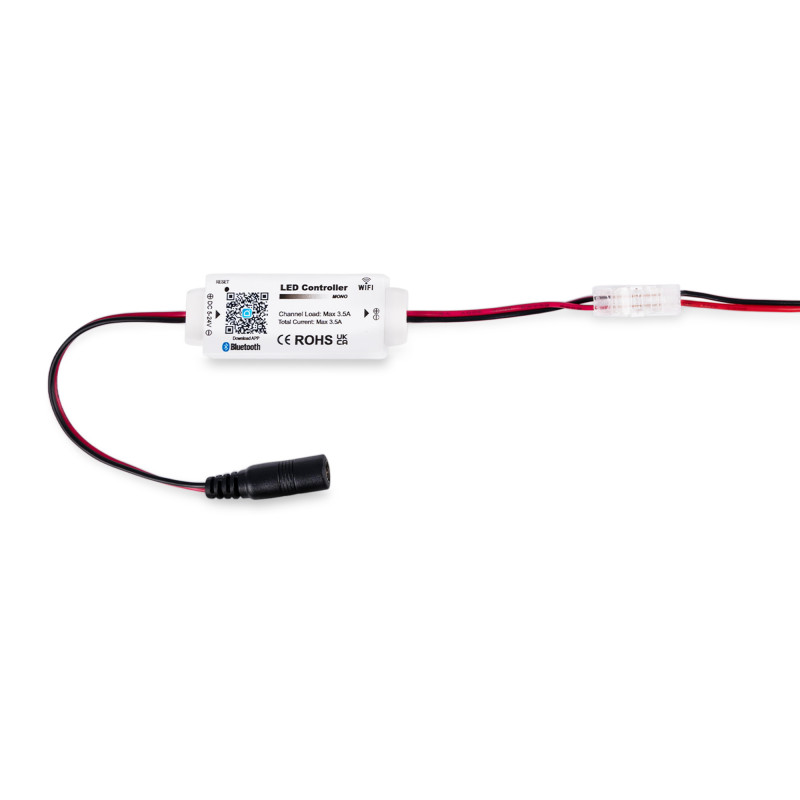

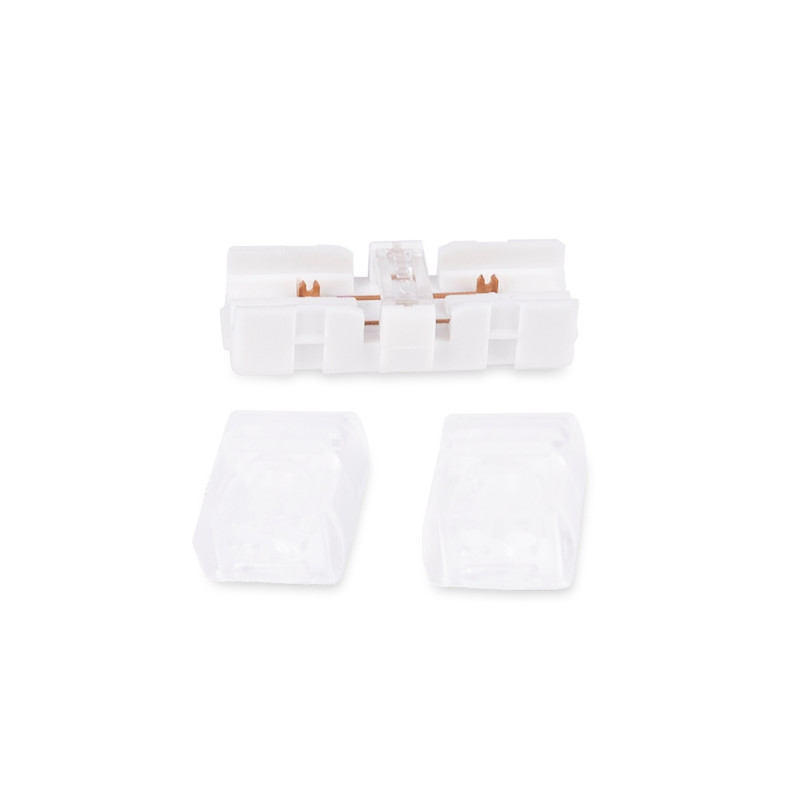

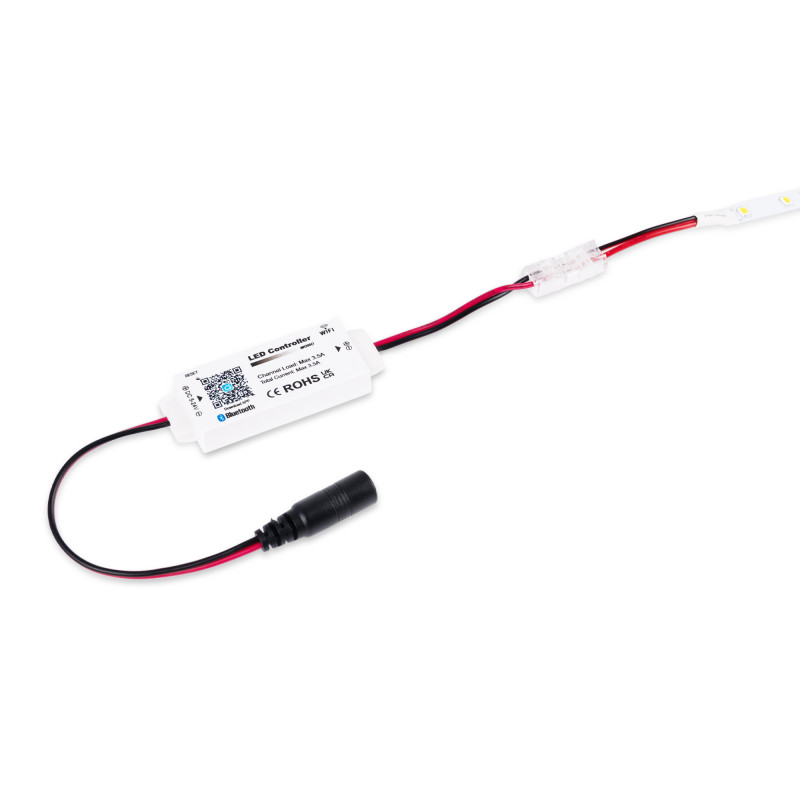

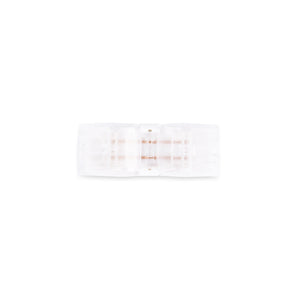

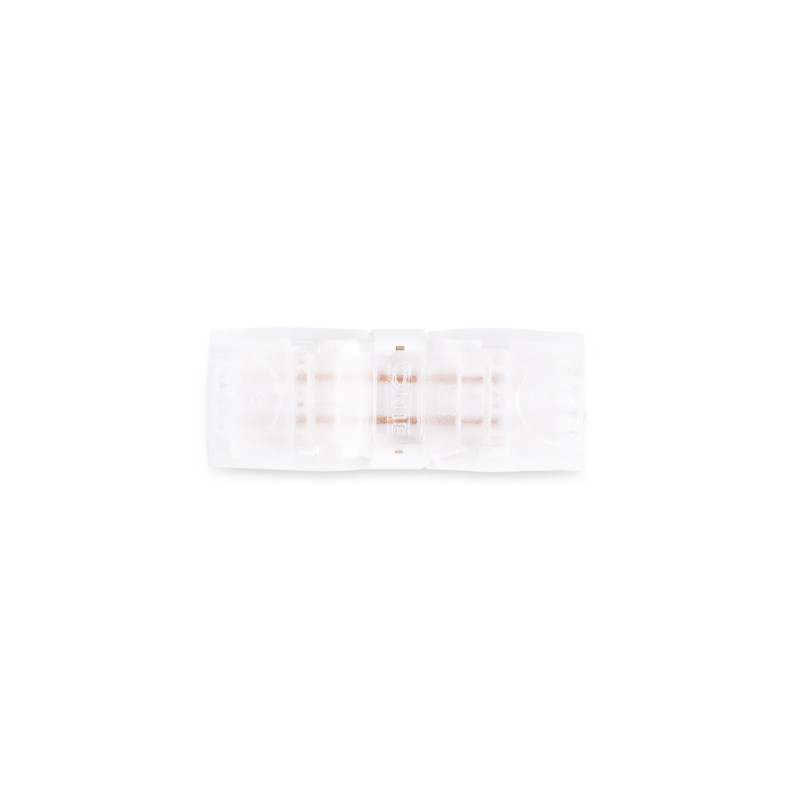

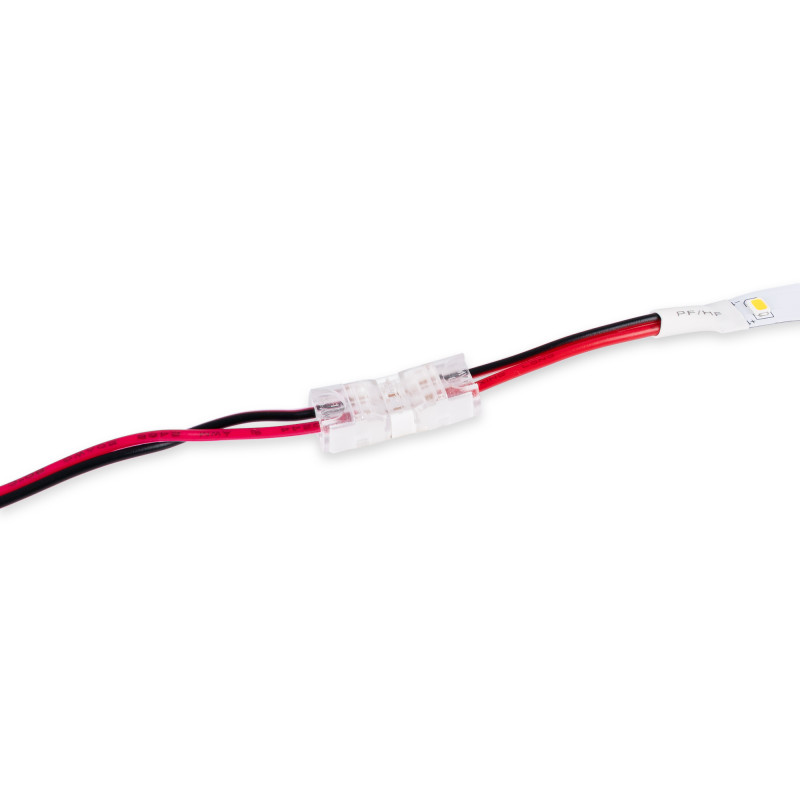

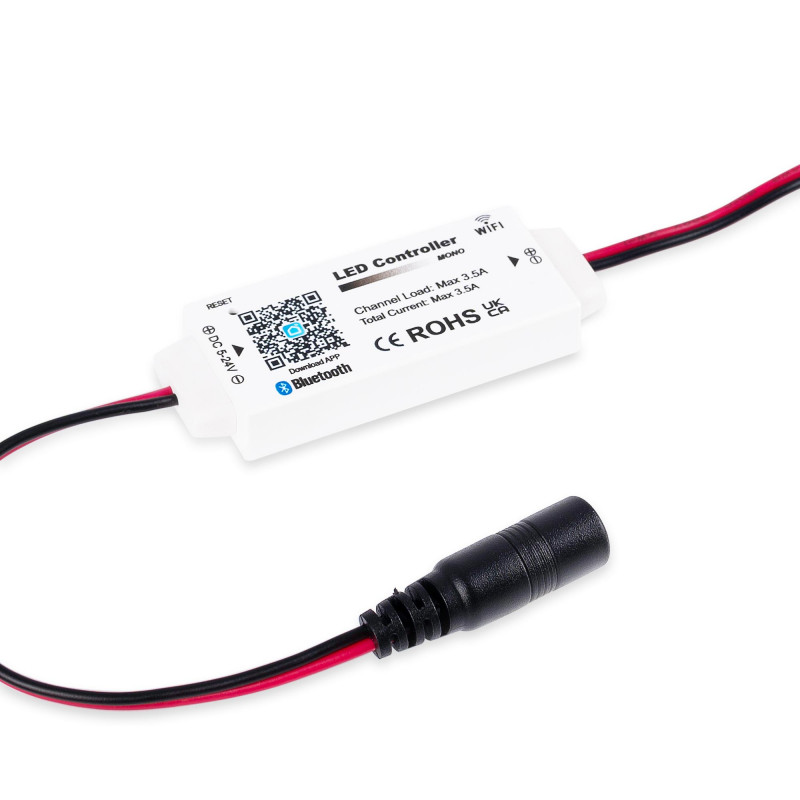

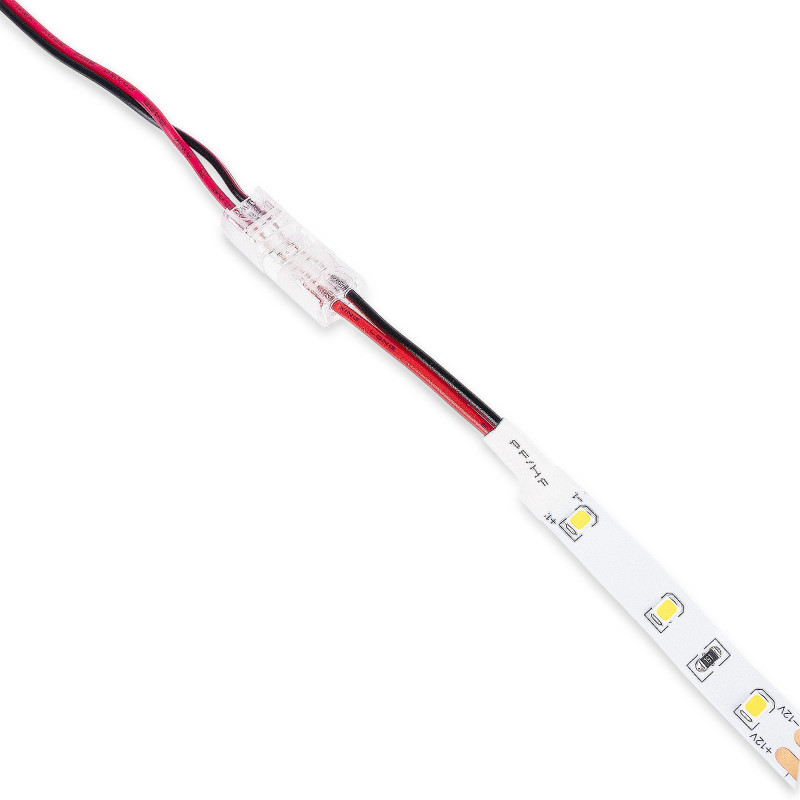

The controller features a female input jack and the two output cables ready to make the corresponding connections. It includes two quick connectors to LED strip for easy connection.

Product features:

  • Output voltage: 5-24V DC
  • Max. current: 3.5A
  • Max. power: 5V-17.5W / 12V-42W / 24V-84W
  • Output channels: 1
  • Color control: single color
  • Brightness adjustment range: 10%~100%
  • Bluetooth 5.2
  • WIFI 2.4GHz
  • PWM frequency 20KHz
  • Overload and short-circuit protection
  • Cable length: 150mm
  • Cable gauge: 0.52mm 2 / 20AWG
  • Indoor use: IP20

Nominal Voltage (V)
5-24V
IP
IP20
Dimmable
Yes
Colour control
Monocolor
Connectivity
Bluetooth
Wifi
Number of channels
1
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3,5
