On/Off and dimming touch switch - 5-24V DC
On/off and dimming touch switch - 5-24V DC
On/off and dimming touch switch - 5-24V DC
On/off and dimming touch switch - 5-24V DC

On/off and dimming touch switch - 5-24V DC

SKU:FDTSM-T10
Has superado el límite de unidades
In stock 984 units
Data sheet

Compact touch switch with a small light indicator, designed for installation on profiles and direct connection to a monochrome LED strip with a voltage range of 5 to 24V DC.

It offers the on/off function and also enables touch-based adjustment of light intensity, allowing for precise and convenient control of the output voltage.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The touch switch for 12 and 24V DC single color strips is a versatile and compact solution that adapts to a wide range of LED profiles on the market.

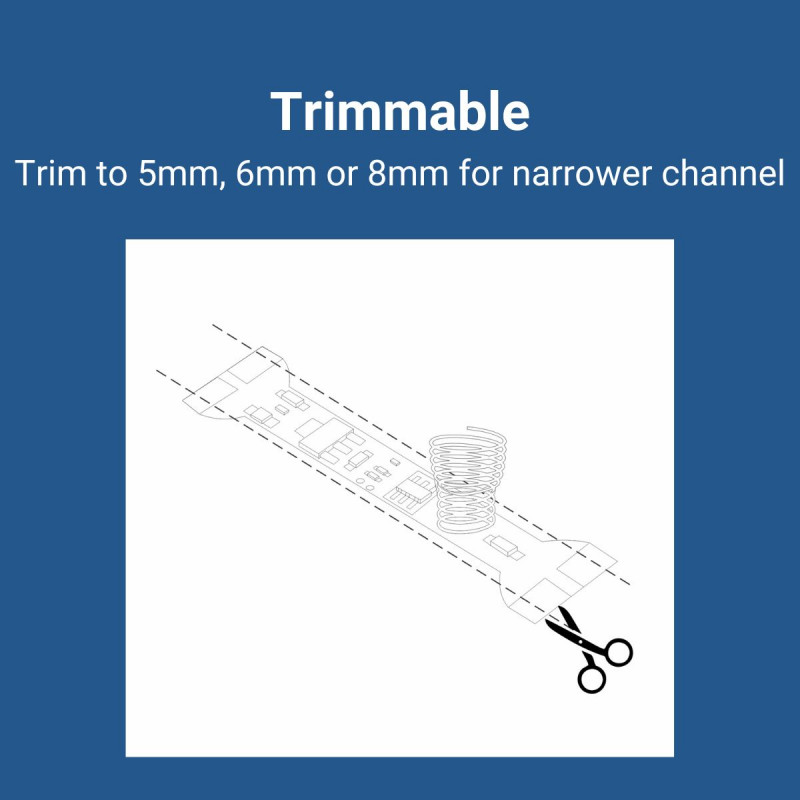

It's manufactured in copper and mounted on 10mm wide PCBs. It's trimmable, which means that it can be cut at the ends to fit different LED strip widths: 5mm, 6mm, 8mm and 10mm.

It can be easily connected to the LED strip by means of quick connectors.

It has an indicator light, visible through transparent or opal white diffusers, that remains on even when the LED strip is off, serving as a guide to activate the light with a touch.

It functions as a switch, allowing the light to be turned on and off quickly and conveniently. In addition to the "on/off" function, it allows dimming the output voltage, adjusting the intensity of the LED strip from 5% to 100% to create customized environments.

For the dimming function, it's necessary to hold contact on the button for 1 second.

Product features:

  • Rated voltage: 5-24V DC
  • Max. current: 3.5A
  • Max. power: 5V-17.5W / 12V-42W / 24V-84W
  • Output channels: 1
  • Color control: Single color
  • Brightness Adjustment Range: 5%~100%

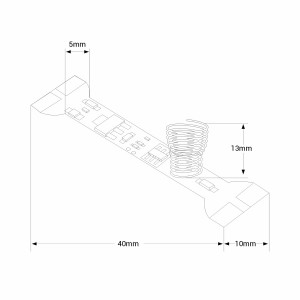

  • Dimensions: 10 x 40mm
  • Indicator light
  • Trimmable: adjustable to different LED strip width: 5mm / 6mm / 8mm / 10mm
  • Indoor use: IP20
Nominal Voltage (V)
5-24V
Dimensions (mm) Lxlxh
10 x 40
Dimmable
Yes
Colour control
Monocolor
Number of channels
1
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3,5
Tactile
Yes
