Proximity sensor for On/Off and dimming of LED strips - 5-24V DC
Proximity sensor for On/Off and dimming of LED strips - 5-24V DC
Proximity sensor for On/Off and dimming of LED strips - 5-24V DC
Proximity sensor for On/Off and dimming of LED strips - 5-24V DC

Proximity sensor for On/Off and dimming of LED strips - 5-24V DC

SKU:FDSSM-T10
Has superado el límite de unidades
In stock 14 units
Data sheet

IR sensor for single-color LED strips from 5 to 24V DC. Controls on/off and intensity when passing your hand at a distance less than or equal to 8 cm.

Discreet, it's easily hidden under the profile diffuser, providing intuitive and aesthetic control to your lighting.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The proximity sensor for 12 and 24V DC single color strips is a versatile and compact solution that adapts to a wide range of LED profiles on the market.

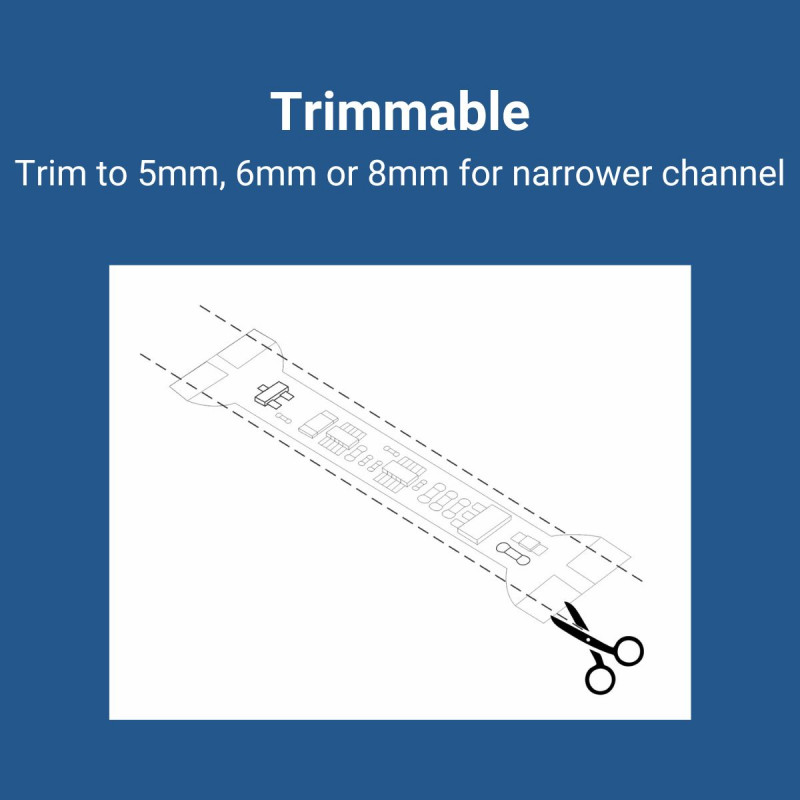

It's mounted on 10mm wide PCBs. It's trimmable, which means that it can be cut at the ends to fit different LED strip widths: 5mm, 6mm, 8mm and 10mm.

It can be easily connected to the LED strip by means of quick connectors.

It serves a dual purpose: acting as a switch upon detecting proximity movement, such as the passing of a hand within 8 cm or less, automatically turning on the LED strip and turning it off upon the repetition of the gesture. Additionally, it operates as a dimmer: when a hand is positioned in front of the sensor, it initiates dimming of the LED strip.

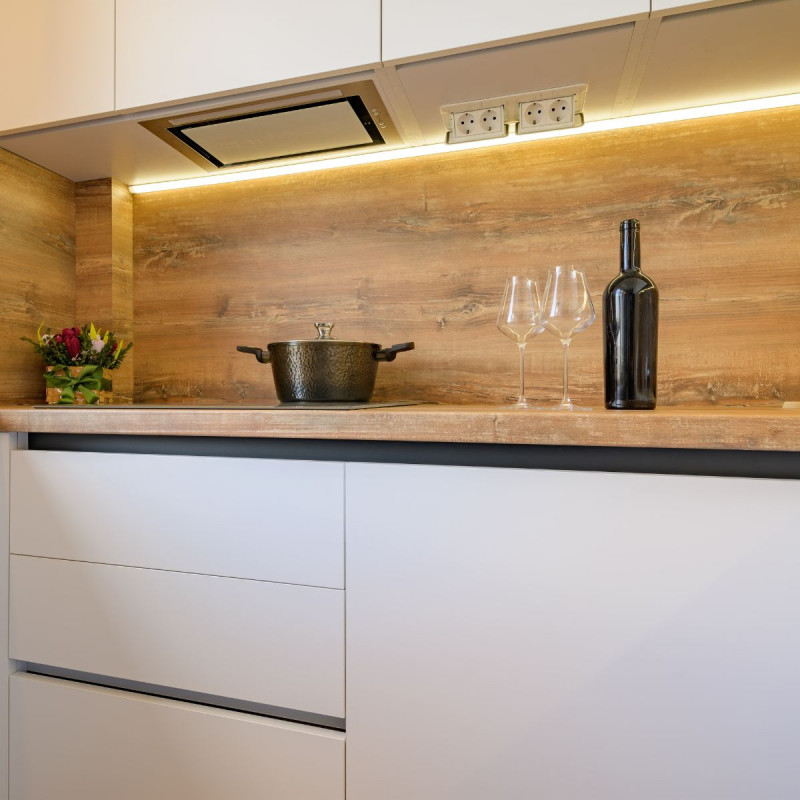

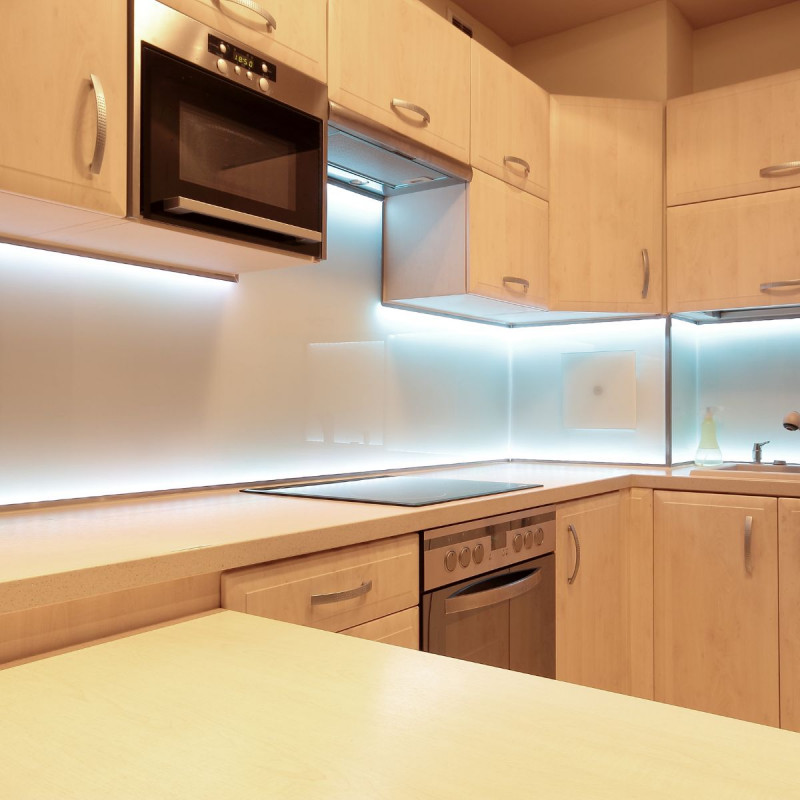

The distinctive feature of this sensor is its ability to operate without the need to touch it or interact with other elements, making it an ideal choice for installations in environments such as kitchens, laboratories, bathrooms and hospitals.

Product features:

  • Rated voltage: 5-24V DC
  • Max. current: 3.5A
  • Maximum power: 5V-17.5W / 12V-42W / 24V-84W
  • Output channels: 1
  • Color control: Single color
  • Brightness Adjustment Range: 5%~100%

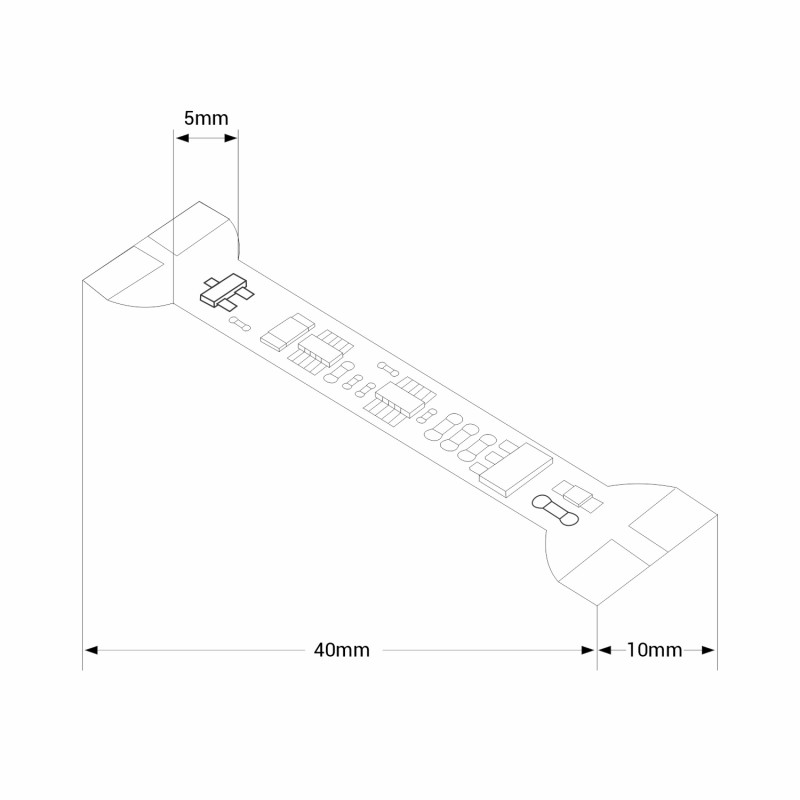

  • Dimensions: 10 x 40mm
  • Indicator light
  • Trimmable: adjustable to different LED strip width: 5mm / 6mm / 8mm / 10mm
  • Indoor use: IP20
Nominal Voltage (V)
5-24V
Dimensions (mm) Lxlxh
10 x 40
Sensor
Distance
Yes
Dimmable
Yes
Number of channels
1
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3,5
ONLUMI
