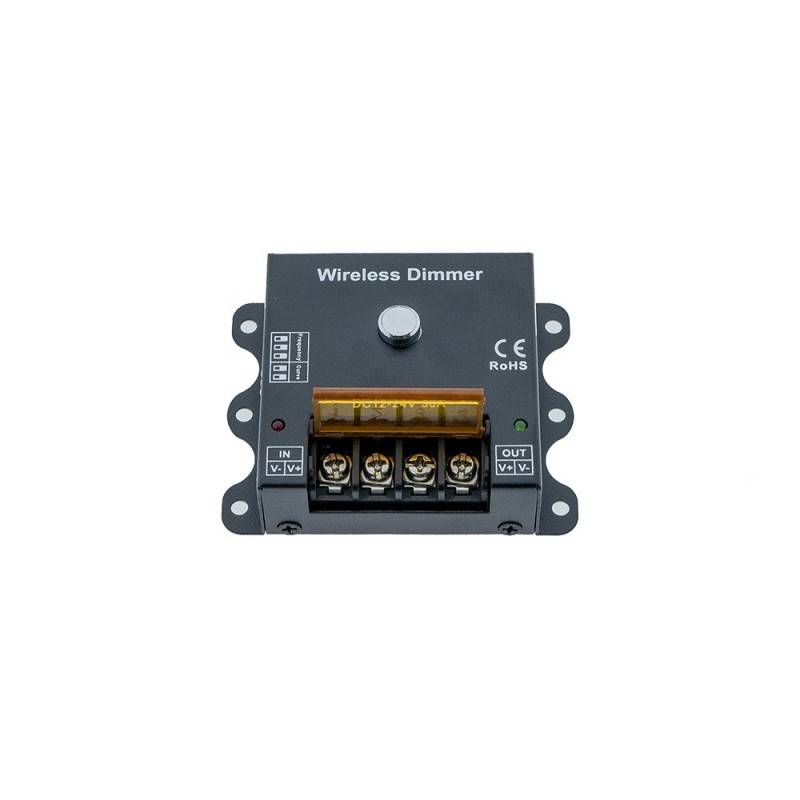

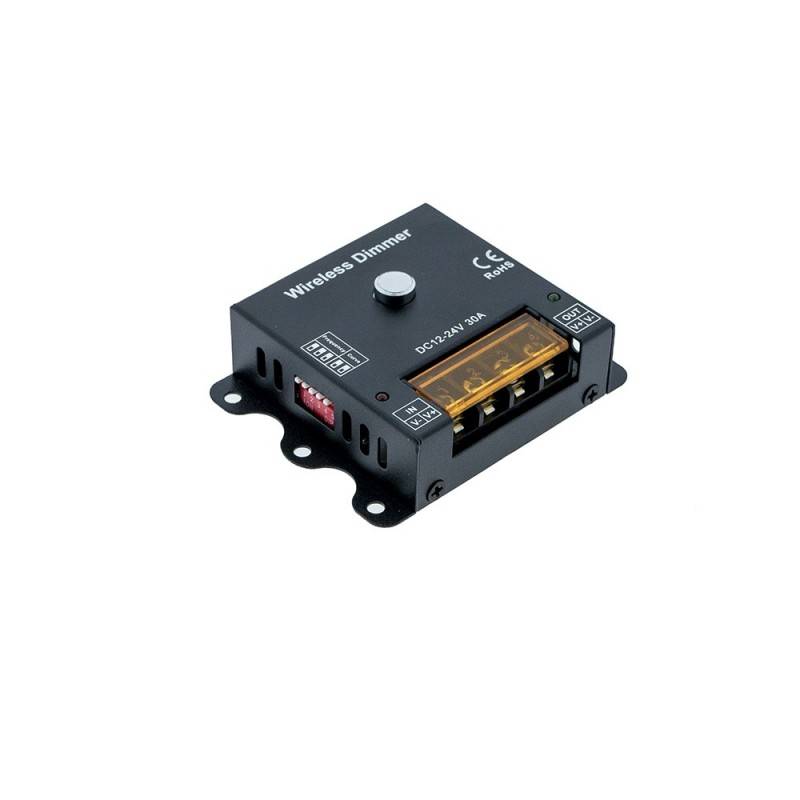

PWM wireless dimmer with adjustable frequency and dimming curve 12/24V 30A

SKU:B1623
Has superado el límite de unidades
In stock 196 units
Data sheet

Manual dimmer with push button and wireless remote control for dimming single color LED strips, 12/24V bulbs and all types of luminaires in general with 12/24V input. The dimmer allows output frequency variation from 300Hz to 10KHz and selection of linear or logarithmic dimming curve.

According to the selected frequency, the dimmer will allow up to a maximum current of 30A. Dimming occurs for each touch on the dimmer or knob, up to 10 brightness levels.

  • IN/OUT: 12/24V
  • Max. 30A
  • Single color
  • 1 channel
  • IP20
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Wireless and manual PWM dimmer with adjustable frequency and dimming curve.

For single-color 12/24V LED strips, max. 30A

Dimmer for single-color 12/24V LED strips and luminaires, with the possibility of varying the frequency and dimming curve. According to the frequency option selected (from 300Hz to 10KHz), a higher or lower load can be connected, being 30A the maximum load with the lowest frequency, and 10A the maximum load with the maximum frequency.

Benefits of correct frequency setting

The human eye cannot perceive flicker beyond 100 hertz, but electronic devices such as photo, video or mobile cameras usually record between 25 and 60 frames per second. Because of this, sometimes, when focusing on a point of light with the camera, we observe an annoying flicker. Adjusting the frequency and dimming curve reduces this effect as much as possible and, in addition to reducing flicker, provides a much more homogeneous and visually pleasing dimming transition.

Technical parameters

  • Operating temperature: -20°C to 60°C
  • Input/output voltage: 12-24VDC
  • Output: 1 channel
  • Wiring connection via terminal strip
  • Small dimensions: 81x64x28mm
  • Weight: 116g
  • Static consumption per use: <1W
  • Output current: <30A
  • Controller transmission frequency: 433.92MHz
  • Maximum control distance with remote control: approx. 20 meters

Instructions for use of the adjustable frequency wireless PWM controller

  1. Select the PWM frequency by adjusting the three pins on the left, marked 1-2-3.
  2. Select the regulation curve by adjusting the two pins on the right, labeled 4-5
  3. Connect the input and output load wires according to the V+/V- instructions, from the power supply and output to the LED strip.
  4. Connect the circuit to the power supply, and you can operate directly. Dimming is push-button operated, both via the dimmer button and the remote control. The device allows up to 10 different brightness levels.
  5. To switch on and off, simply press the button on the controller for 3 seconds or the POWER button on the remote control.

Technical issues to keep in mind

When the PWM frequency is at a minimum of 300Hz and the maximum connected load is 30A, the temperature of the controller does not normally exceed 55ºC. However, you should be aware that at high frequencies between 500Hz and 1000Hz, it is possible for the controller to reach temperatures up to 65ºC.

Note that the higher the PWM frequency, the output current will be reduced proportionally, according to the following table:

PWM freq. = 300Hz --> Max. 30A

PWM freq. = 3KHz --> Max. 20A

PWM freq. = 5KHz --> Max. 15A

PWM freq. = 10KHz --> Max. 10A

Instruction manual (in English):
