RF pushbutton mechanism Single-color dimmer switch for LED lighting 2 keys SUNRICHER - Perfect RF
SR-2833K2

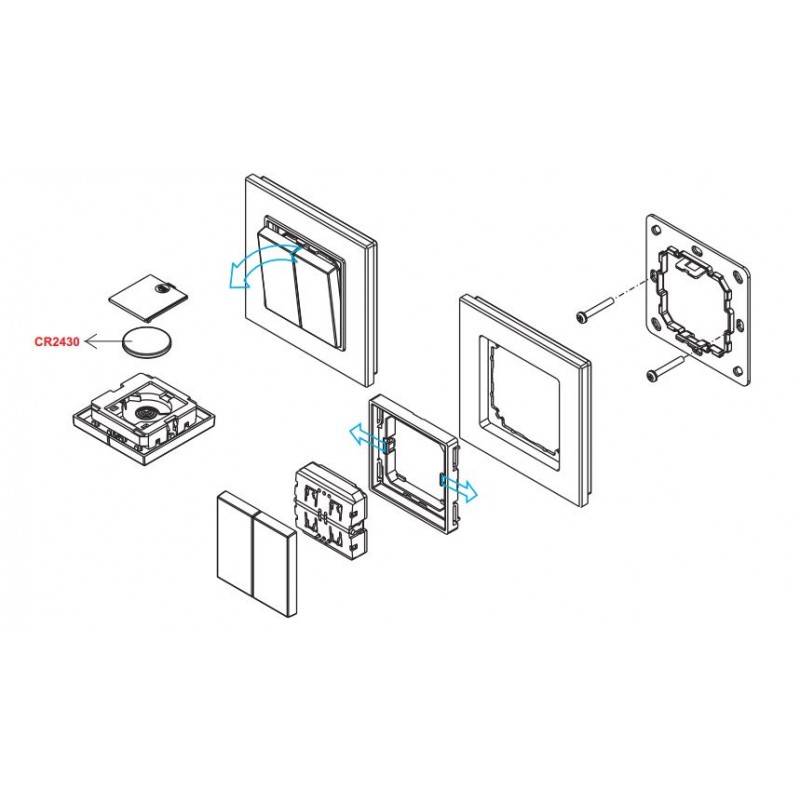

installation of single-color controller

RF pushbutton mechanism Single-color dimmer switch for LED lighting 2 keys SUNRICHER - Perfect RF

SKU:SR-2833K2
Has superado el límite de unidades
In stock 48 units
Data sheet

The RF&WiFi LED dimmer switch SR-2833K2 is a two-key push button dimmer switch that offers both switching and brightness adjustment functions for single color LED lights.

The dimmer switch offers smooth and accurate dimming from 0.1% to 100% without any flicker. Each controller can control 2 zones with endless receivers in each zone and the control distance can be more than 20 meters. The controller can be controlled by WiFi via APP on iOS and Android systems while the receivers work with WiFi-RF converter.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Two-key RF single color push button dimmer switch + WiFi SWITCH

The SR-2833K2 is a two-key push button RF LED dimmer switch that provides switching functions and brightness adjustment functions for single color LED lights.

The LED controller allows control of 2 zones with endless receivers in each zone. With a control distance of more than 20 meters. Compatible with SRP-1009-50CC.

The dimmer switch offers precise and smooth dimming from 0.1% to 100% without any flicker. The controller can be controlled by WiFi via APP on Android and iOS systems. The receivers work with the WiFi-RF converter.

Easy to install and uninstall with the sticker included on the back.

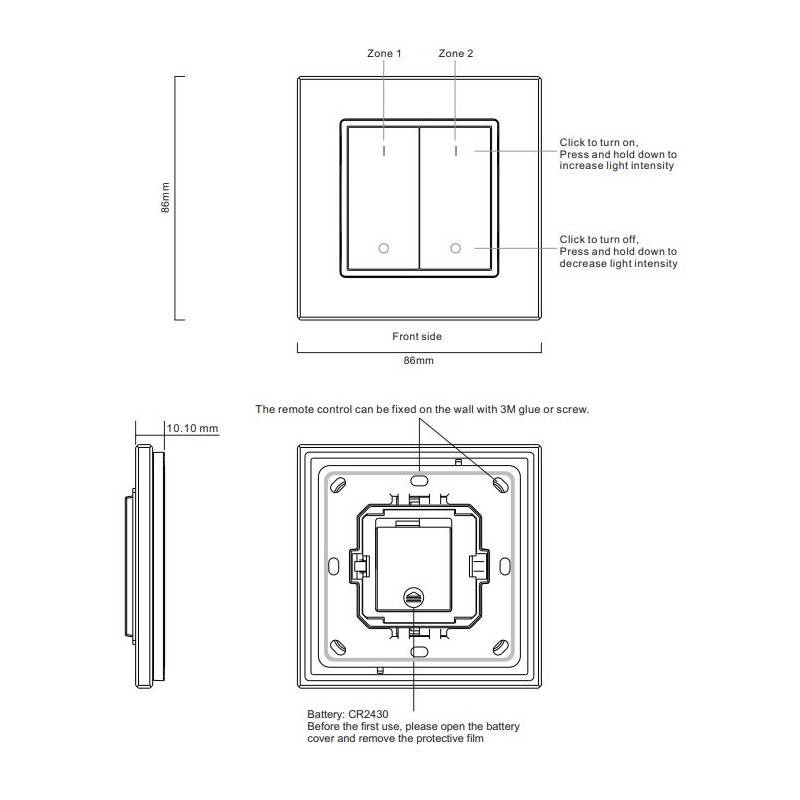

SR-2833K2

DALI dimming and is specially designed for dimmable LED lighting evenly, no dimming jumps, no flickering, and no noise.

Main features

  • Single color RF dimmer
  • Reliable and stable switch
  • Dimming control function, control range>20M.
  • Remote control battery has a long battery life that can last more than 2 years.
  • Turn on/off or turn on slowly, without any flash, for the comfort of human eyes.
  • Dimming range 0.1-100%.
  • Use with power repeater to expand the output power unlimitedly.
  • Allow to control one or two zones separately, in each zone can be configured endless receivers, each receiver can be controlled at most 8 different emitters.
  • One button dims and turns on/off all zones.
  • The receivers can work with WiFi-RF converter after installing the APP on the IOS and Android.
  • TUV CE certified.

interruptor de atenuación

Technical characteristics of the single color dimmer

  • 4.5V-DC
  • 433MHz-869.5MHz.
  • Dimensions: 86x86x14mm.
  • RF signal.
  • 2 zones.
  • IP20
  • Certifications: CE, RoHS, TUV.
  • Two-year warranty.

instalación regulador monocolor

Certificates
CE
ROHS
Warranty
5 years
SUNRICHER

Questions

P: Question: How to pair with the receiver
R: Answer: Press the button on the compatible controller (Learning key) and then press the switch.
