RF pushbutton mechanism Single-color dimmer switch for LED lighting SUNRICHER - Perfect RF
SKU:SR-2833K1
€61.25
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Single-key push-button dimmer mechanism with radio frequency signal.
It has a smooth, natural and precise dimming of the LEDs ranging from 0.1% to 100% brightness without any flickering.
It is capable of controlling a zone with as many receivers as desired. The remote control is usable up to 20 meters. The push-button control is easy to install or remove with an adhesive strip included with the dimmer.
The SR-2833K1 is a one-button push-button RF LED dimmer switch that offers switching functions and brightness adjustment functions for single-color LED lights.
DALI dimming and is specially designed for evenly dimmable LED lighting, with no dimming jumps, no flickering, and no noise.
Main features
- Single color RF dimmer
- Reliable and stable switch
- Dimming control function, control range>20M.
- Remote control battery has a long battery life that can last more than 2 years.
- Turn on/off or turn on slowly, without any flash, for the comfort of human eyes.
- Dimming range 0.1-100%.
- Use with power repeater to expand the output power unlimitedly.
- Enable to control one zone separately, endless receivers can be configured in each zone, each receiver can be controlled at most 8 different emitters.
- One button dims and turns on/off all zones.
- Receivers can work with WiFi-RF converter after installing the APP on the IOS and Android.
- TUV CE certified.
Technical characteristics of the single color dimmer
- 4.5V-DC
- 433MHz-869.5MHz.

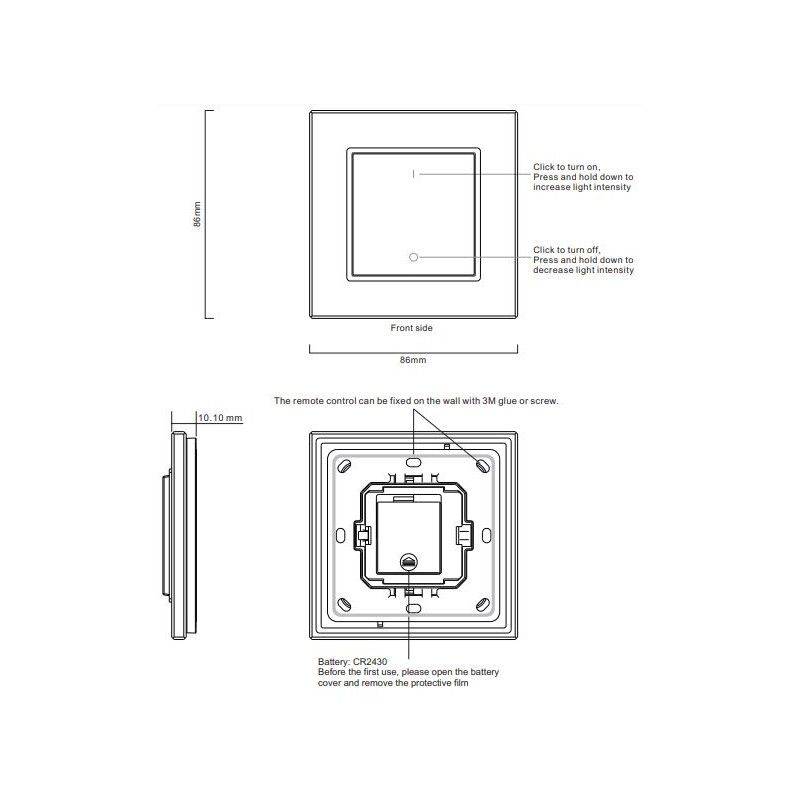

- Dimensions: 86x86x14mm.
- Radio frequency signal.
- 1 zone.
- IP20
- Certifications: CE, RoHS, TUV.
- Two-year warranty.
Nominal Voltage (V)
3V-DC
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
86x86x13
Detection range (m)
25000
Sensor
Yes
Colour control
Monocolor
Connectivity
Radiofrequency
Material
Plastic
Use Outdoor
No
Temperature range
0 ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
5 years
Number of zones
1
Questions
| P: Question: | Is the connection made with two wires or three wires? Is it possible to change the box with the one of a normal switch or is it necessary to make a complex installation? |
|---|
| R: Answer: | This switch is not wired, it is battery operated and is synchronized by radio frequency with compatible control models of the same brand, for example ref -D1009-AC. |
|---|
| P: Question: |
I would like to know if we have to buy the radio frequency receivers, or if they are already included. I bought this product yesterday. Thank you very much. Carlos Lopes |
|---|
| R: Answer: | The dimmer switch offers smooth and precise dimming from 0.1% to 100% without any flickering that can control 1 zone with infinite receivers and the control distance can be over 20 meters. It can be controlled by WiFi via APP on iOS and Android systems, while the receivers work with the WiFi-RF converter. |
|---|
| P: Question: |
Hello, is it a phase cut regulator? thank you |
|---|
| R: Answer: | This pushbutton is only an RF control pushbutton. It can be synchronized with several models of controllers for different uses. One of them is a controller for 220vac network regulation (ref. D1009AC-HP). |
|---|
| P: Question: |
Hello. How do you regulate the intensity of the leds? by pressing several times? to install it, how is the synchronization with the receiver? is it easy? Thanks |
|---|
| R: Answer: | The regulation with this push button is based on short presses to turn on/off and long presses to regulate the intensity of the light. Synchronization with its controller is simple, just press a small button on the controller and then the remote control. |
|---|
| P: Question: | Can it be used to regulate LED strips? |
|---|
| R: Answer: | Yes, the |
|---|
