Single-color dimmable RF rotary switch for LED lighting - SUNRICHER - Easy RF
SKU:D2805R
€39.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Designed with high strength tempered glass, which makes the control a mechanism with high durability and easy to clean.
With this rotary potentiometer mechanism you can dim towards dark or bright without any flicker ranging from 0.1% to 100% brightness.

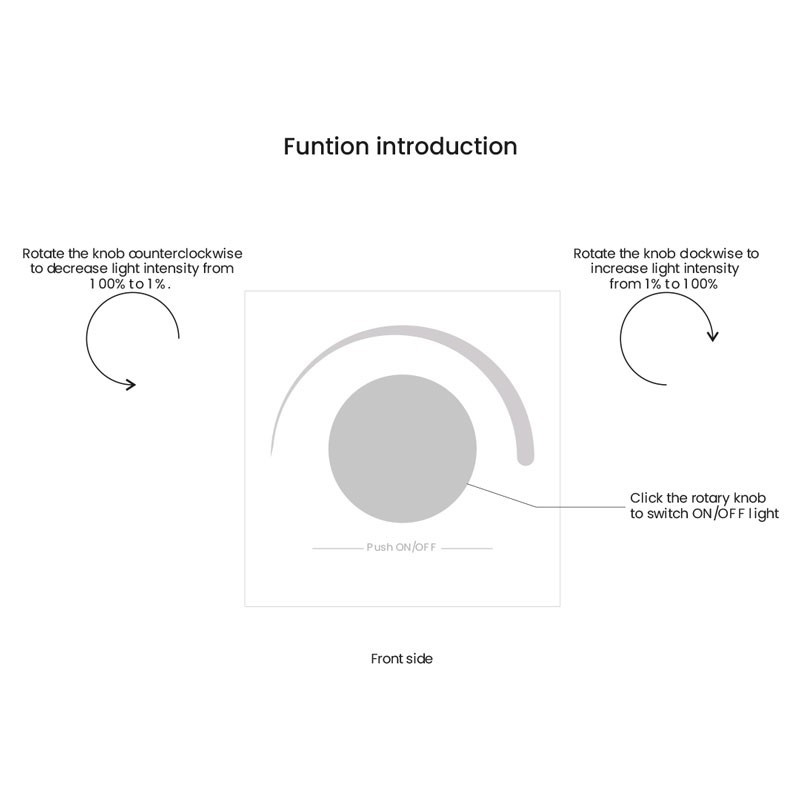

Each dimmer can control 1 zone with an endless number of receivers. To adjust the brightness, simply turn the knob clockwise to increase the brightness and counterclockwise to decrease the brightness. To turn on or off just click on the same rotary knob. The control range of the mechanism is up to 20 meters.
The battery included in the mechanism is of high durability, it can last up to 2 years without having to replace it, so it is only necessary to do it in very long periods of time.
- Stable on, off and dimmer function, control range ≥20M.
- Use a repeater to extend the output power unlimitedly.
- No flicker and flicker so it is very comfortable for human eye.
- Brightness dimming range 0.1-100%.
- Rotary knob to turn on, turn off and dim.
- Each receiver can be controlled by up to 8 remotes.
2018-07-09
Nominal Voltage (V)
3V-DC
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
86x86x13
Detection range (m)
25000
Sensor
Yes
Colour control
Monocolor
Connectivity
Radiofrequency
Material
Plastic
Use Outdoor
No
Temperature range
0 ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Number of zones
1
Questions
| P: Question: |
Good morning, I supplied for a construction site a TRIAC - RF regulation module, code D2501-AC and this RF module, code D2805R, We need to know how to synchronize them? Thank you! Felix |
|---|

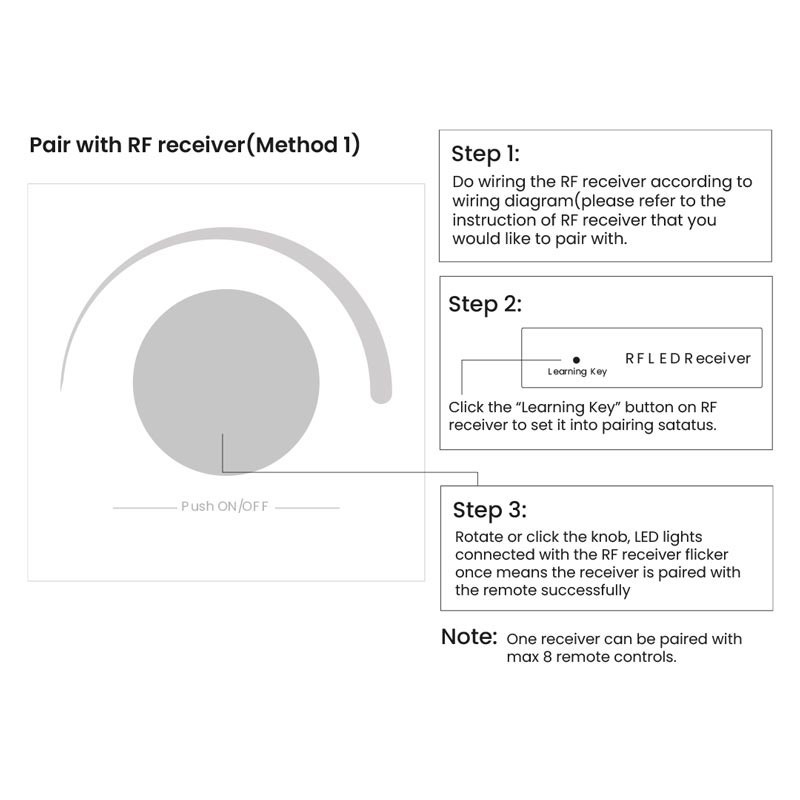

| R: Answer: | As indicated in the manual: Press the "Learning key" button on the D2501-AC controller once and then press the D2805R rotary knob. |
|---|
| P: Question: |
Good morning I would like to regulate the light intensity of two surface mounted halogen lamps with 7w led bulbs each. Is this dimmer suitable for me? Remote control to control the intensity of the lights. Reference:D2805R I suppose that the box to screw is standard. Thanks |
|---|
| R: Answer: | This model is only the control to synchronize the controllers of the same brand as those indicated in the accessories section. You will need a TRIAC dimming model. The bulb must be dimmable. |
|---|
| P: Question: |
Good evening, I have to illuminate a porch of 5x3 meters approximately. I would like to install recessed led spotlights and I would like to be able to control the intensity of the light. I would like the spotlights to be small and white. I would need your advice for this installation. Any other suggestions are welcome. Thanks |
|---|
| R: Answer: | This model is an RF (radio frequency) control to control the D2501AC model that can dim 220vac luminaires with TRIAC dimming (provided that the luminaire is dimmable). |
|---|
