Single color 12-36V dimmer

1 channelLED dimmer, with a maximum load of 8A. Constant voltage of 12-36V. Smooth dimming from 0.1% to 100% without any flicker can be very comfortable for human's eyes. In addition, this controller can be compatible with pulse controllers to simplify the control.

The single-color radio frequency dimmer enables flicker-free brightness adjustment. Pulse dimming function is available when connected with a pulse switch. Dimmer compatible with multiple remote controls for switching and dimming single color LED lighting.

COMPATIBILITY

Controls multiple zones separately or synchronously with an infinite number of receivers in each zone.

Receiver is connected directly to a dimmer or LED button. Use with the repeater to extend the output power unlimitedly. High reliability and stability.

Main features of the single color dimmer

• Voltage: 12-36V DC.
• Approximate range: 30 meters.
• Mini RF dimmer controller.

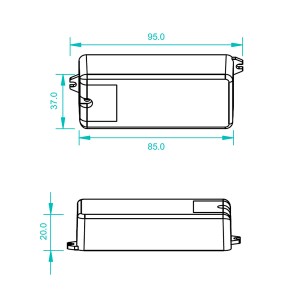

• Dimensions: 95mm length, 37mm width and 20mm height.
• 1 channel 12-36V constant voltage radio frequency controller, maximum 8A per channel.
• For dimming and switching single color LED lighting.
• Full compatibility with a variety of single color RF remote controls.
• Each receiver can be controlled by a maximum of 8 different remotes.
• Smooth brightness adjustment without any flickering.
• Multiple zones can be controlled synchronously or separately with an infinite number of receivers in each zone.
• Available radio frequency: 869.5/434/916.5Mhz.
• Smooth dimming from 0.1% to 100%.
• IP20

Wiring diagram

Multiple synchronized receivers
