SKU:SR-2836R
Has superado el límite de unidades
In stock 105 units
Data sheet

The Perfect RF - Sunricher LED rotary dimmer is a rotary dimmer that offers both switching and smooth brightness dimming functions for single color LED lighting. Designed with sleek and compact appearance, high strength tempered glass material and rotary knob, the LED dimmer offers smooth and precise dimming and switching functions without any flickering. It is quite easy to turn on/off by clicking the rotary knob and dim the brightness by turning the rotary knob. Compatible with RF receivers, which are available in constant voltage and constant current versions, the LED rotary dimmer is capable of controlling different types of LED lighting.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Designed with high strength tempered glass, which makes the control mechanism with high durability and easy to clean.


With this rotary potentiometer mechanism you can dim towards dark or bright, Smooth dimming from 0.1%-100% without any flicker can be very comfortable for human eyes. It is quite easy to turn on/off by clicking the rotary knob and dim the brightness by turning the rotary knob.

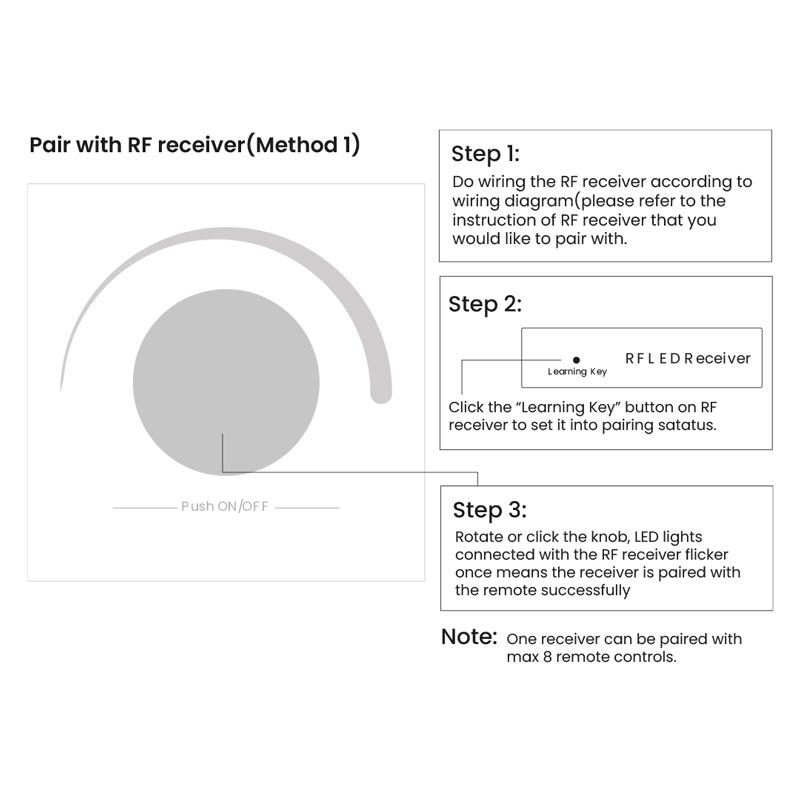

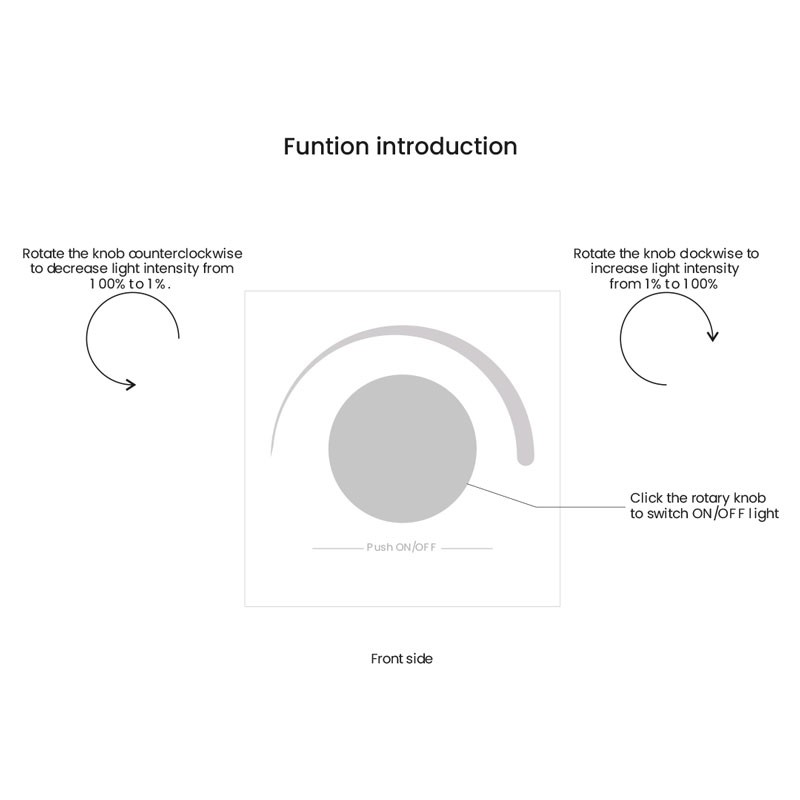

Each dimmer can control 1 zone with endless receivers. To adjust the brightness you only need to turn the knob clockwise to increase the brightness and counterclockwise to decrease the brightness. To turn on or off just click on the same rotary knob. The control range of the mechanism is up to 20 meters.

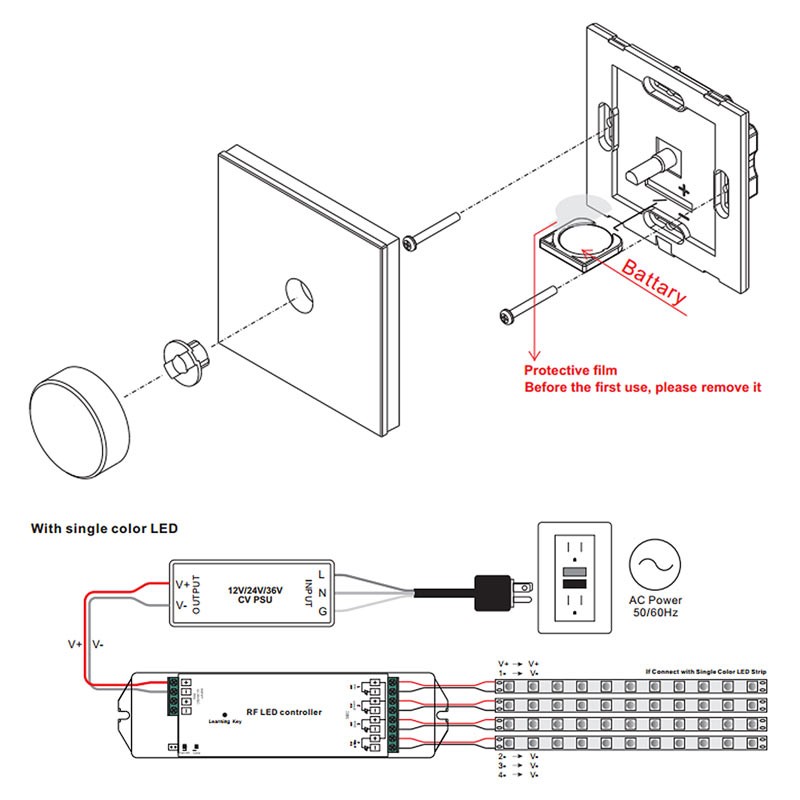

The battery included in the mechanism is of high durability, it can last up to 5 years without having to replace it, so it is only necessary to do it in very long periods of time.

  • Stable on/off and dimmer function, control range ≥20M.
  • Uses a repeater to extend the output power unlimitedly.
  • No flicker and flicker so it is very comfortable for human eye.
  • Brightness dimming range 0.1-100%.
  • Rotary knob to turn on, turn off and dim.
  • Each receiver can be controlled by up to 8 remotes.
Nominal Voltage (V)
3V-DC
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
60.3x60.3x60.3x19.4mm
Detection range (m)
25000
Sensor
Yes
Colour control
Monocolor
Material
Glass
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Number of zones
1
