"Sunricher" Touch control panel - 4 zones - Single color

"Sunricher" Touch control panel - 4 zones - Single color - Perfect RF

SKU:SR-2830A(AC)
Has superado el límite de unidades
In stock 2 units
Data sheet

The Sunricher recessed touch control panel offers complete lighting control for 100-240V single-color LED luminaires.

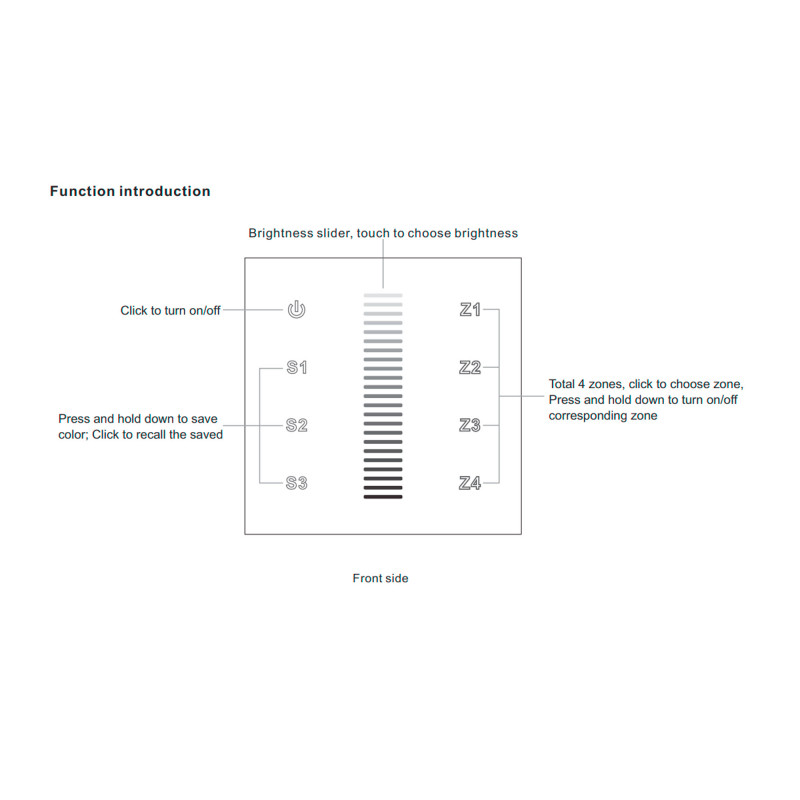

Its elegant high-sensitivity glass touch interface includes a bar for adjusting brightness quickly and intuitively.

It can control up to 4 zones with the ability to save 3 scenes per zone.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The Sunricher Touch Control Panel features a stylish white design and an ultra-sensitive glass panel that allows precise adjustment of monochrome lighting. Additionally, it features a backlighting system for easy location in low-light conditions.

It can control up to 4 zones either individually or synchronized with multiple 2.4G RF controllers in each zone.

It has the ability to record up to 3 scenes per zone and offers 256 levels of flicker-free brightness adjustment.

The panel can be controlled via WiFi through the app, on IOS or Android mobile devices.

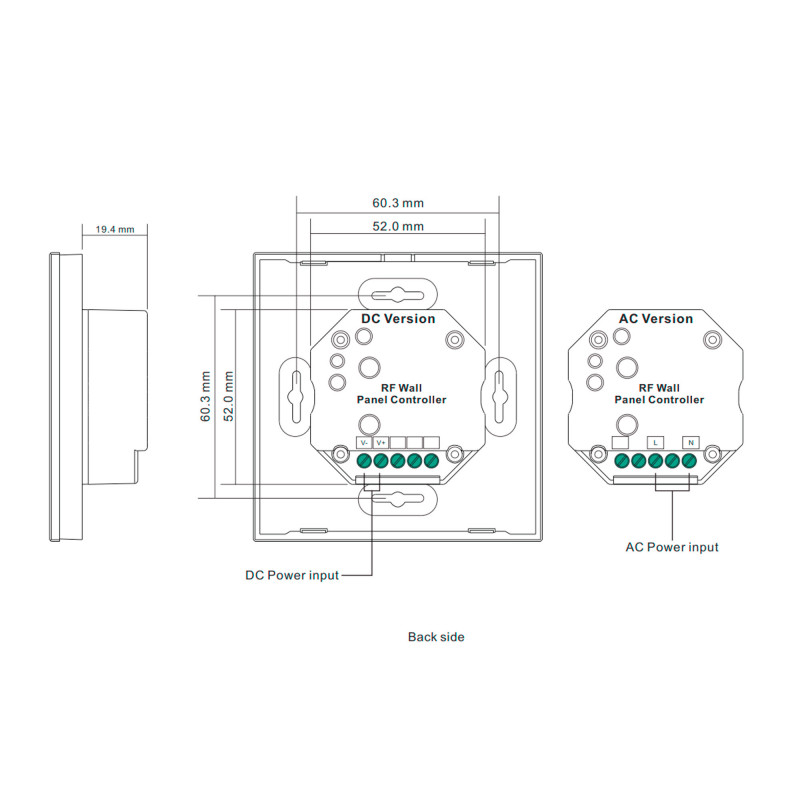

Its standard dimensions fit into a universal (EU) flush-mounted box.

Product features:

  • Voltage: 100-240V AC
  • 4 zones
  • Input signal: Touch + RF 2.4GHz
  • Output signal: RF 2.4GHz

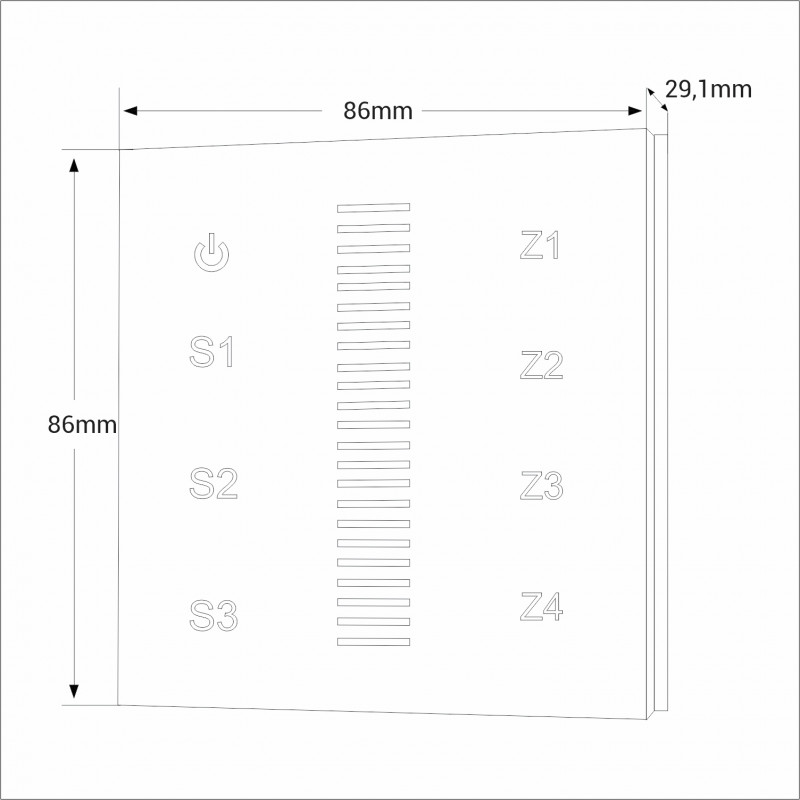

  • Dimensions: 86 x 86 x 29.1 mm
  • Indoor use: IP20
Nominal Voltage (V)
100 - 240 V/AC
IP
IP20
Dimensions (mm) Lxlxh
86 x 86 x 29.1
Dimmable
Yes
Colour control
Monocolor
Connectivity
RF
Material
Glass
Use Outdoor
No
Temperature range
-10~40°C
Certificates
CE
ROHS
Warranty
5 years
