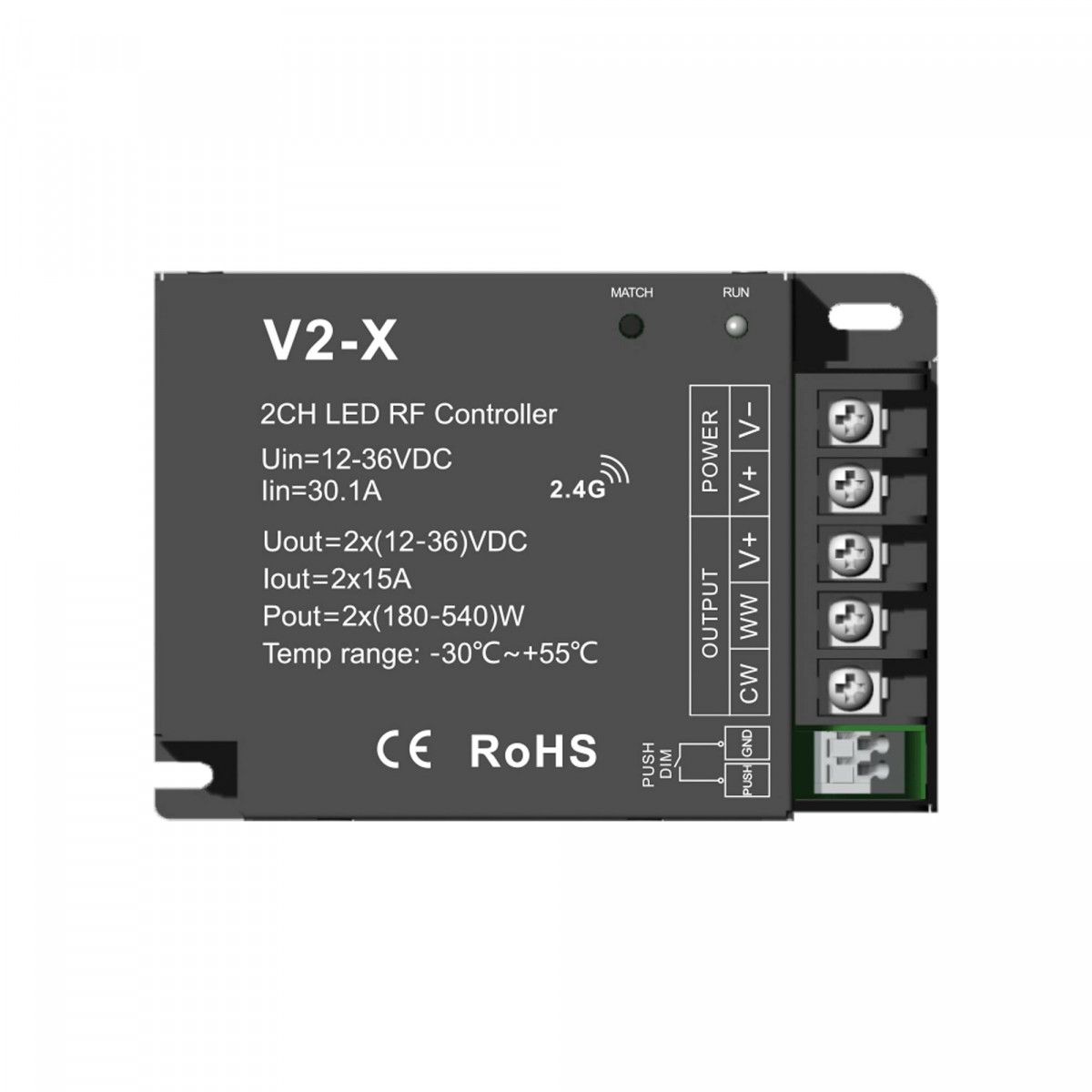

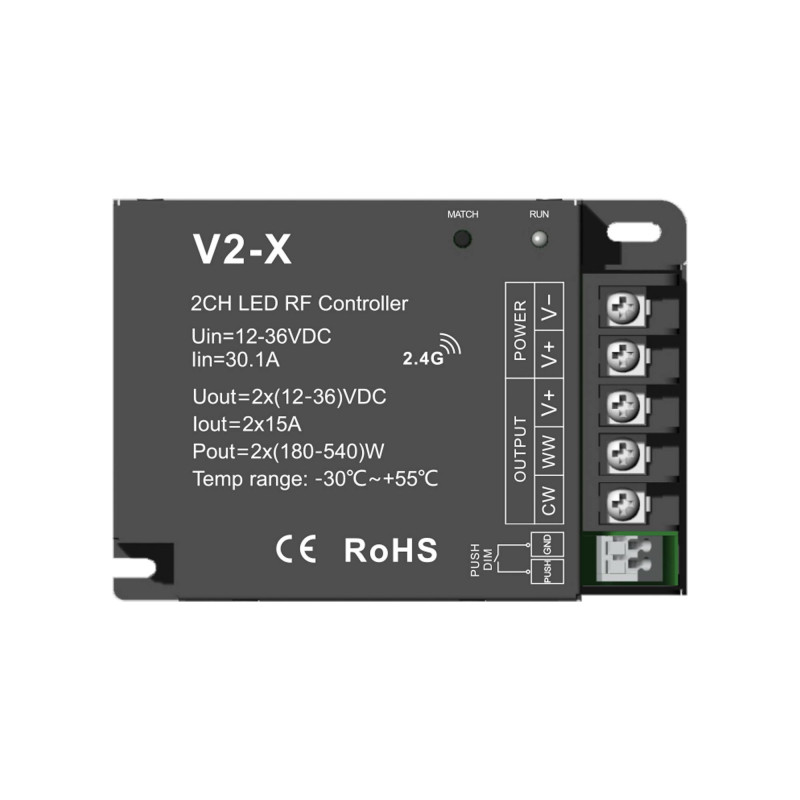

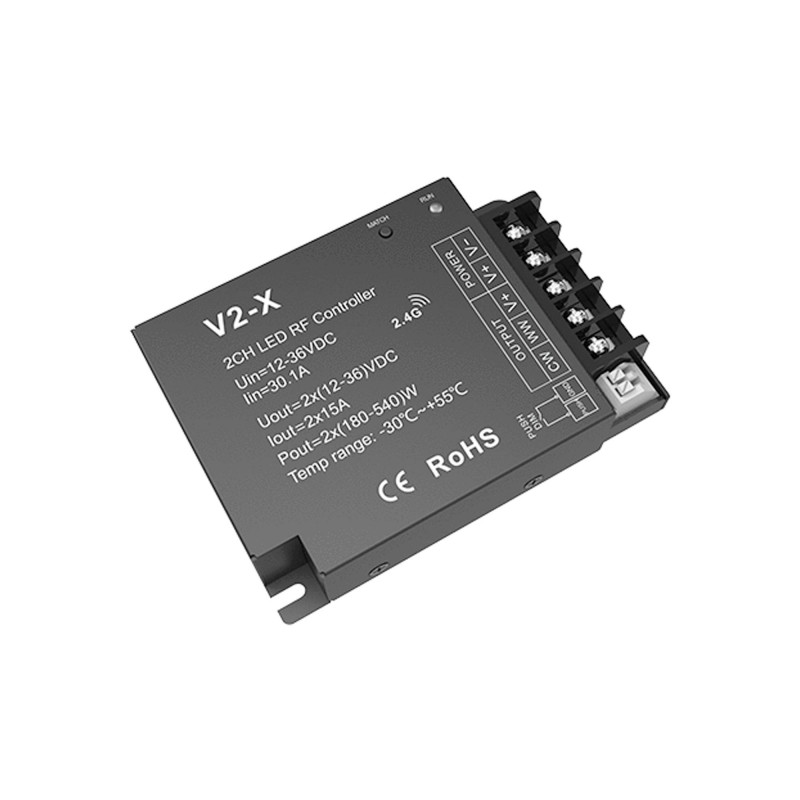

CCT Controller - 12-36V DC - 2 channels - 15A/channel - RF 2.4GHz - PUSH dimmer - Skydance

2-Channel CCT Controller: Maximum Flexibility and Control

This controller is a versatile solution for the management of LED luminaires in domestic and commercial environments.

• Adjustable illumination: Allows selection of 3 color temperatures: warm white, neutral white and cool white.


• Flicker-free dimming: Offers dimming from 0-100% in 4096 levels.


• Remote control: Compatible with CCT or single color RF 2.4GHz Skydance remote controls.


• Multiple control: A single controller can accept up to 10 remote controls, and one remote can control an unlimited number of controllers.


• High load capacity: Supports up to 15A per channel.

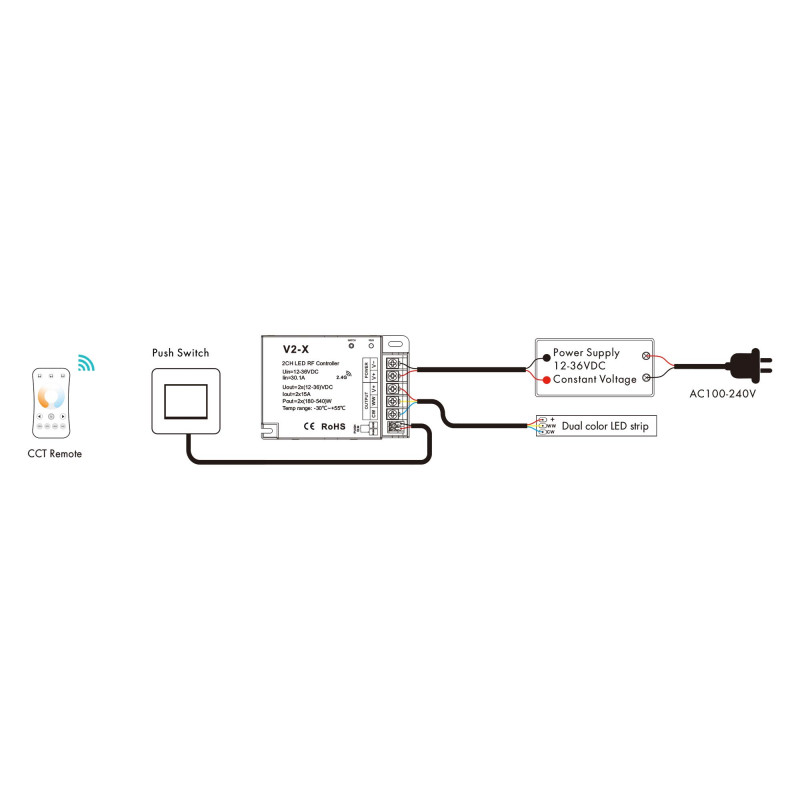

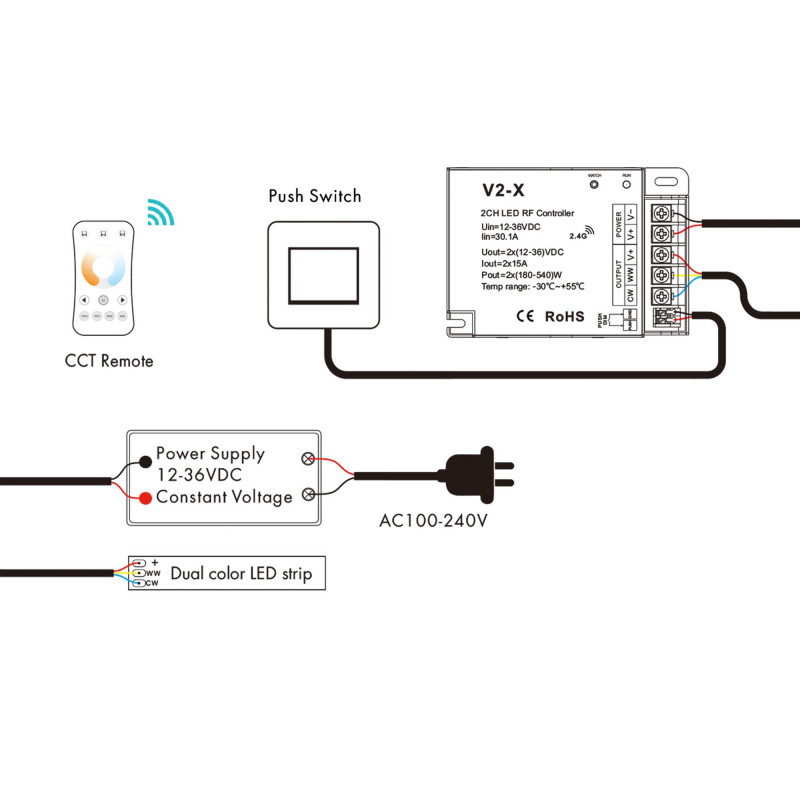

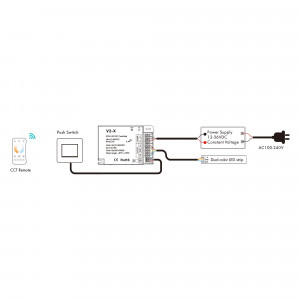

• PUSH dimming: Can be PUSH dimmed by connecting to an external switch for ON/OFF and 0-100% dimmer functions.


• Safety protection: Equipped with overheating, overload and short circuit protection.




Innovative functions:

• Auto-transmission: Extends the remote control range up to 15 meters.


• Auto-synchronization: Synchronizes multiple receivers within 15 meters for uniform illumination.



Technical specifications:

✔ Input voltage: 12-36V DC.
✔ Output current: 2x(15A Max).
✔ Transmission frequency: 2.4GHz.
✔ Control Distance: 15m
✔ Operating Temperature: -30°C to +55°C
