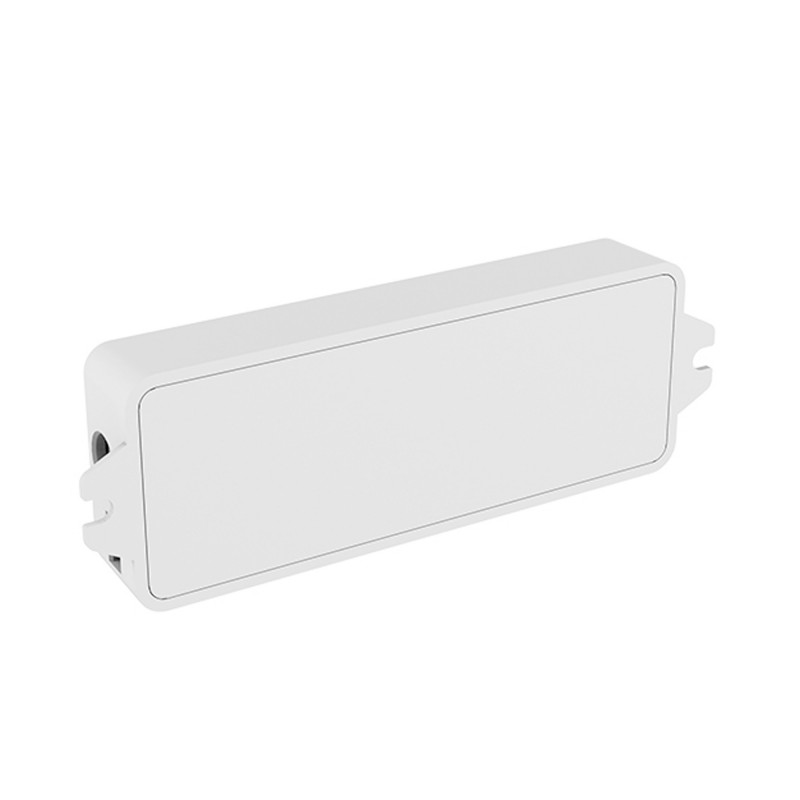

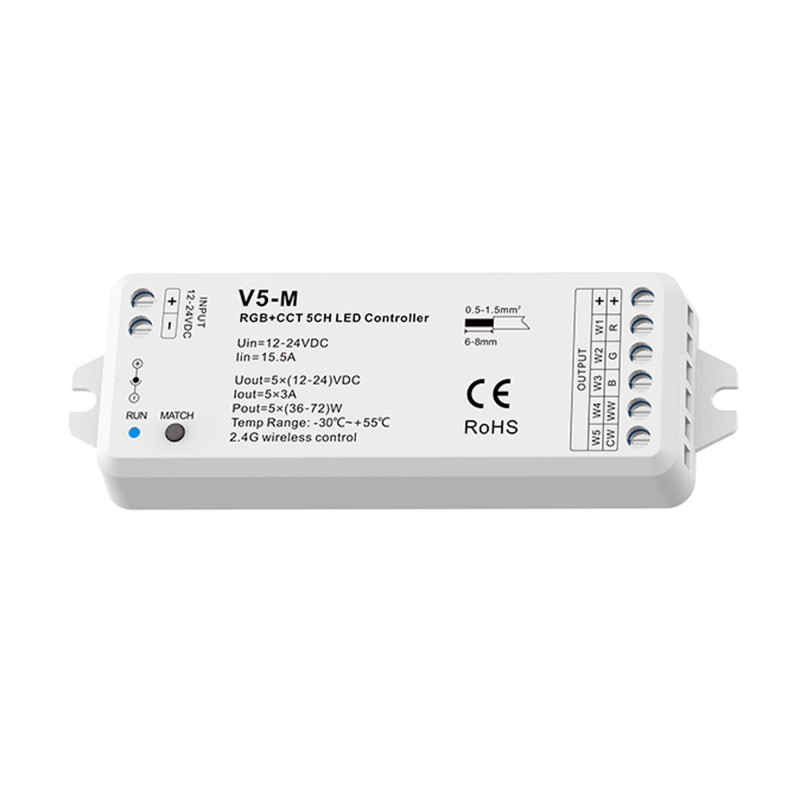

RGB + CCT Controller - 12-24V DC - 5 channels - 3A/channel - RF 2.4GHz - Skydance

5-channel RGB +CCT Controller: Complete and efficient control

This controller is a versatile solution for managing LED luminaires in domestic and commercial environments.

• Compatibility: Compatible with 12-24V RGB + CCT LED strips.


• Dynamic modes: 10 preset modes, including jumps and smooth transitions.


• Flicker-free dimming: Offers 0-100% dimming in 4096 levels.

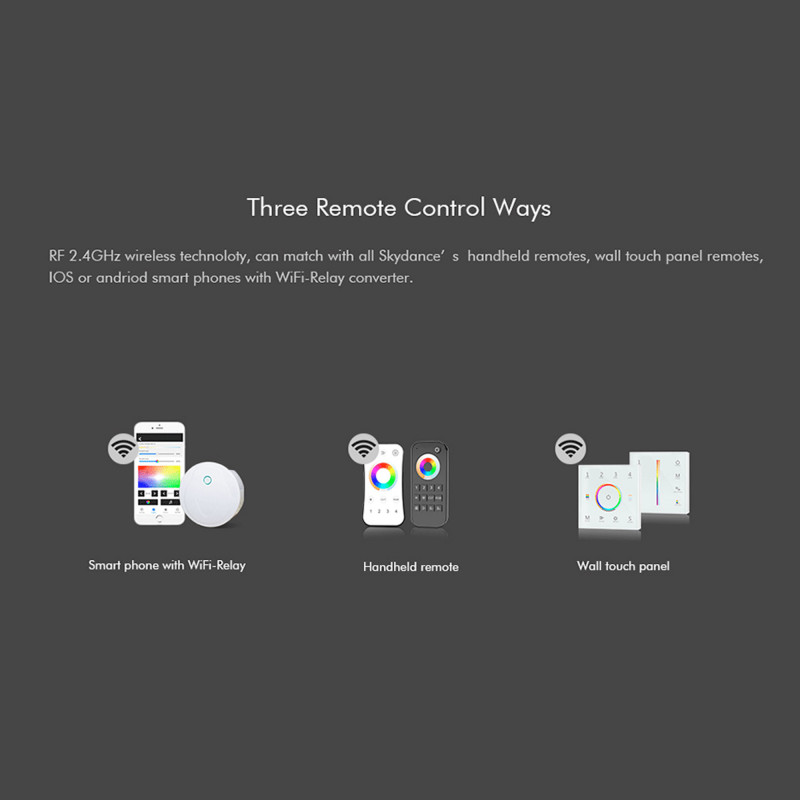

• Remote control: Compatible with Skydance 2.4GHz RF remote controllers.

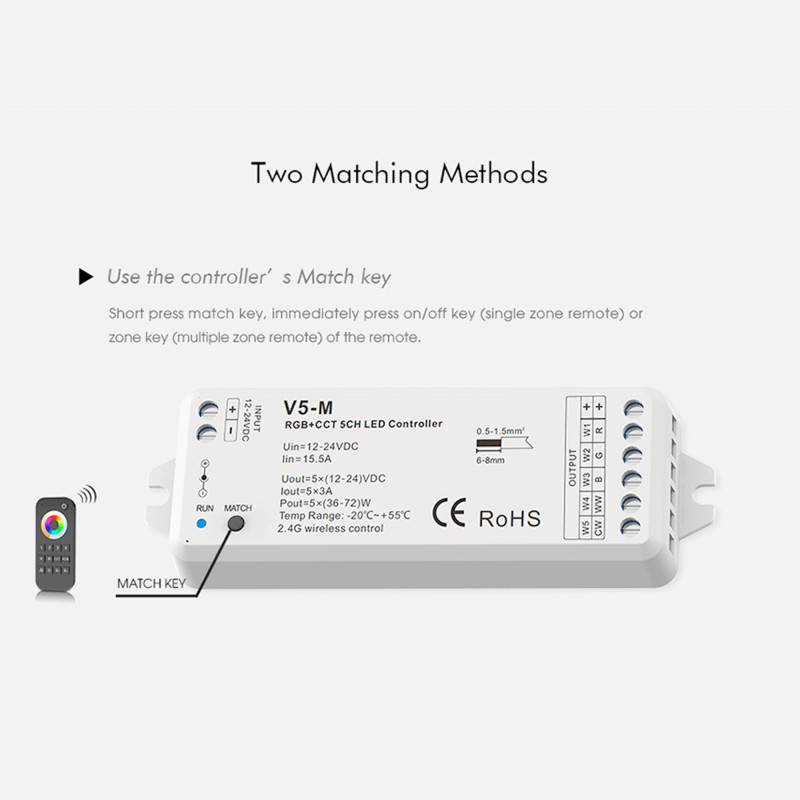

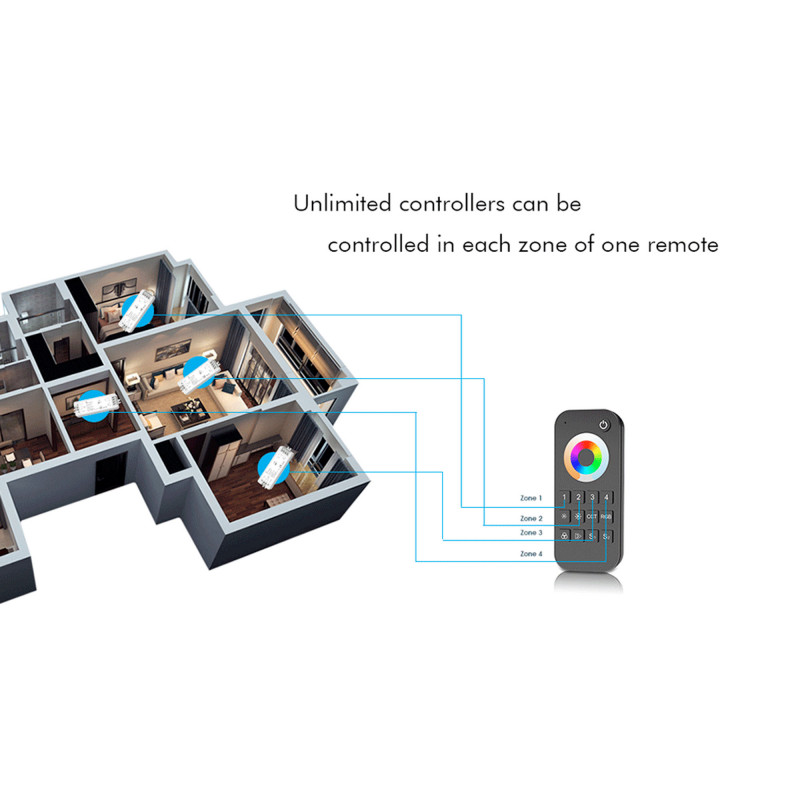

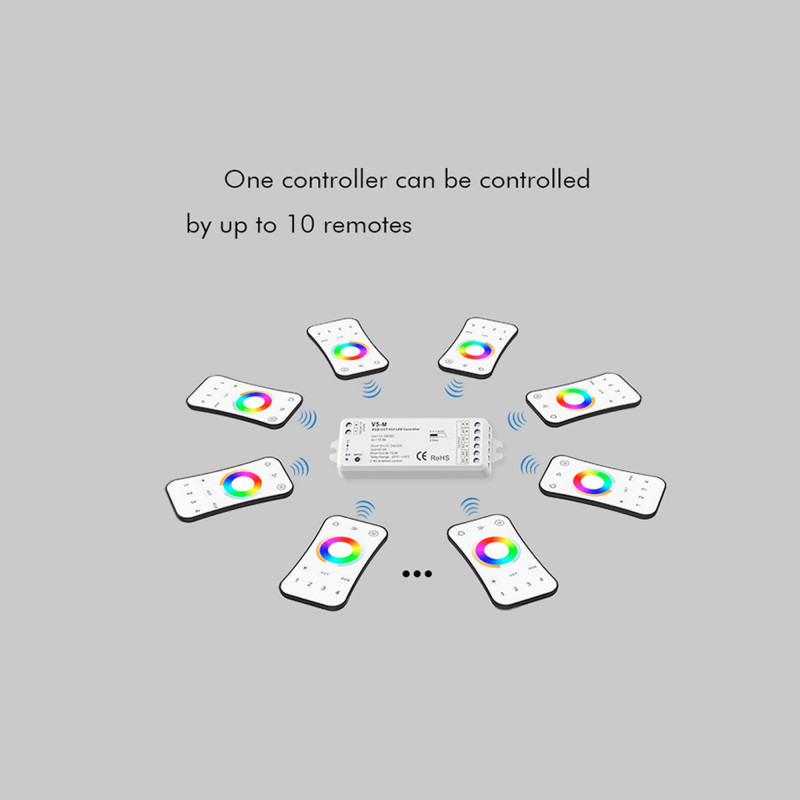

• Multiple control: A single controller can accept up to 10 remote controllers, and one controller can control an unlimited number of controllers.


• High load capacity: Supports up to 3A per channel.

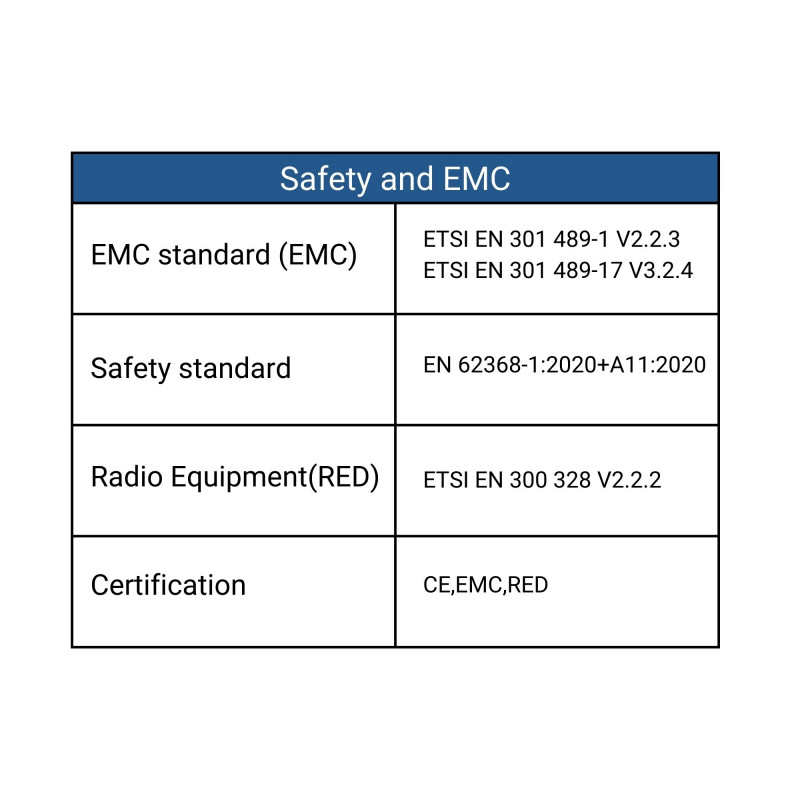

• Safety protection: Equipped with overheating, overload and short circuit protection.




Innovative functions:

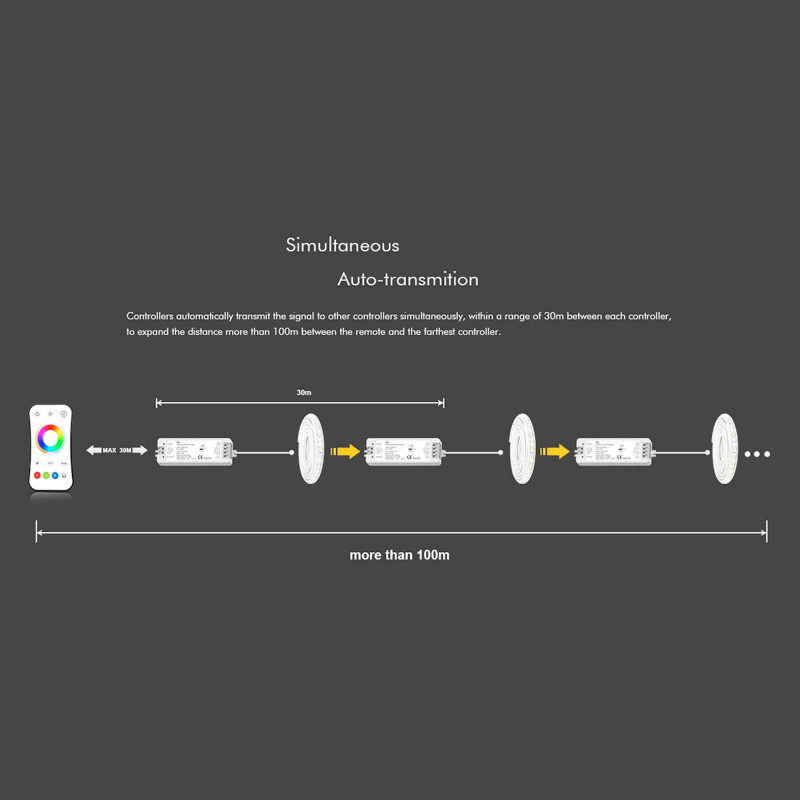

• Auto-transmission: Extends the remote control range up to 30 meters.

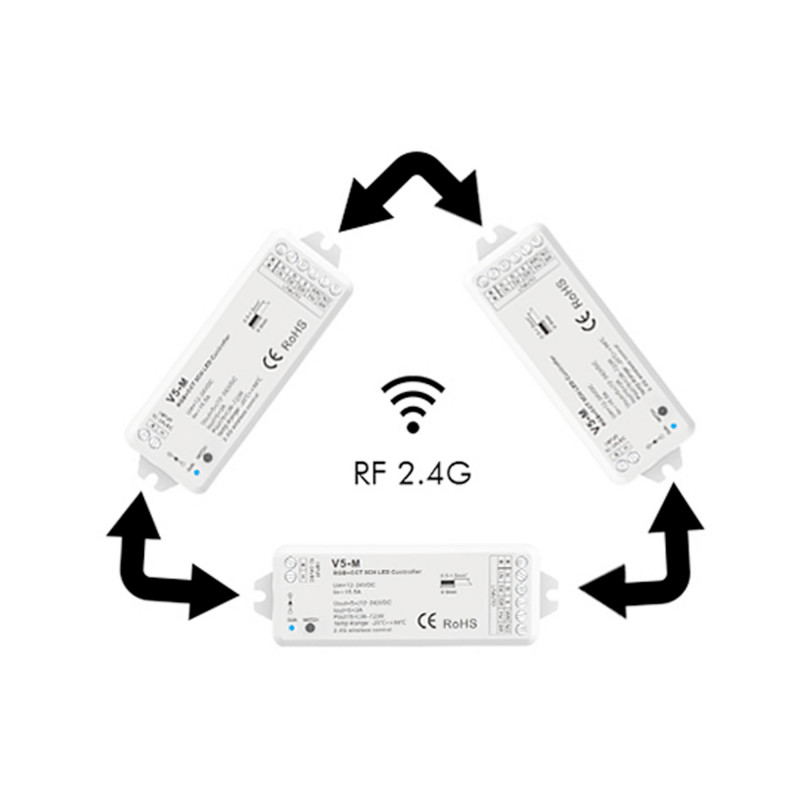

• Auto-synchronization: Synchronizes multiple receivers within 30 meters for uniform illumination.



Technical specifications:

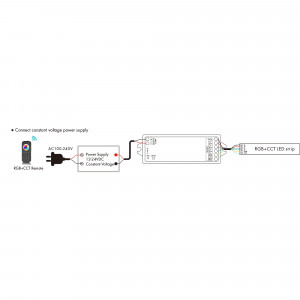

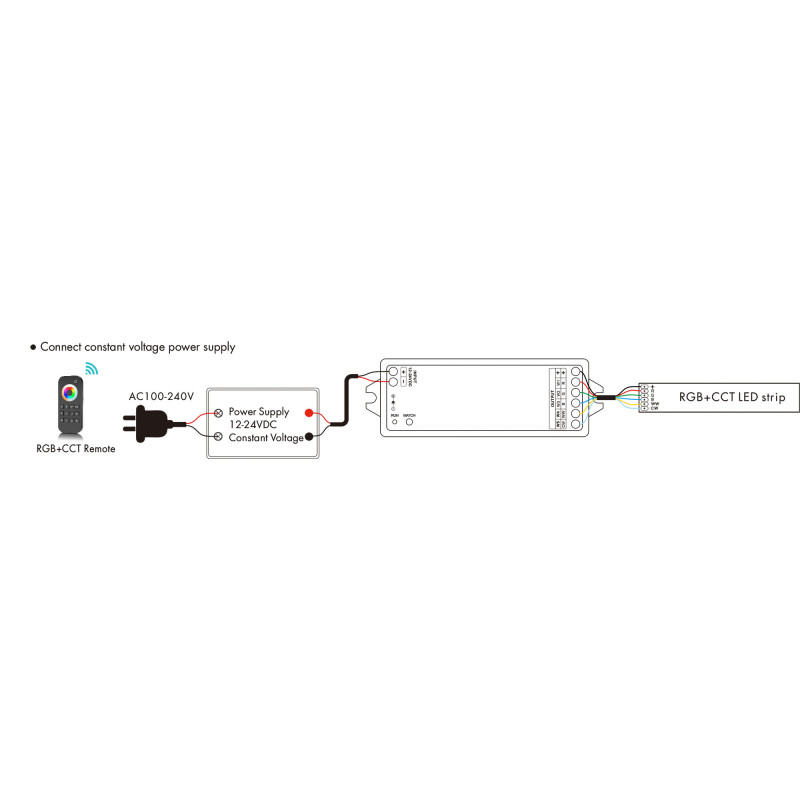

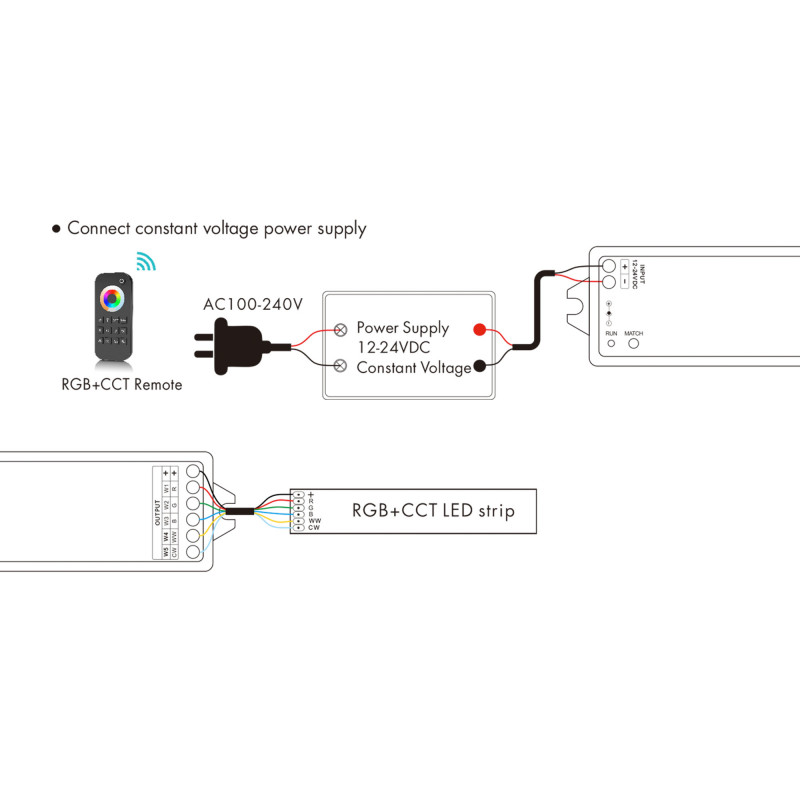

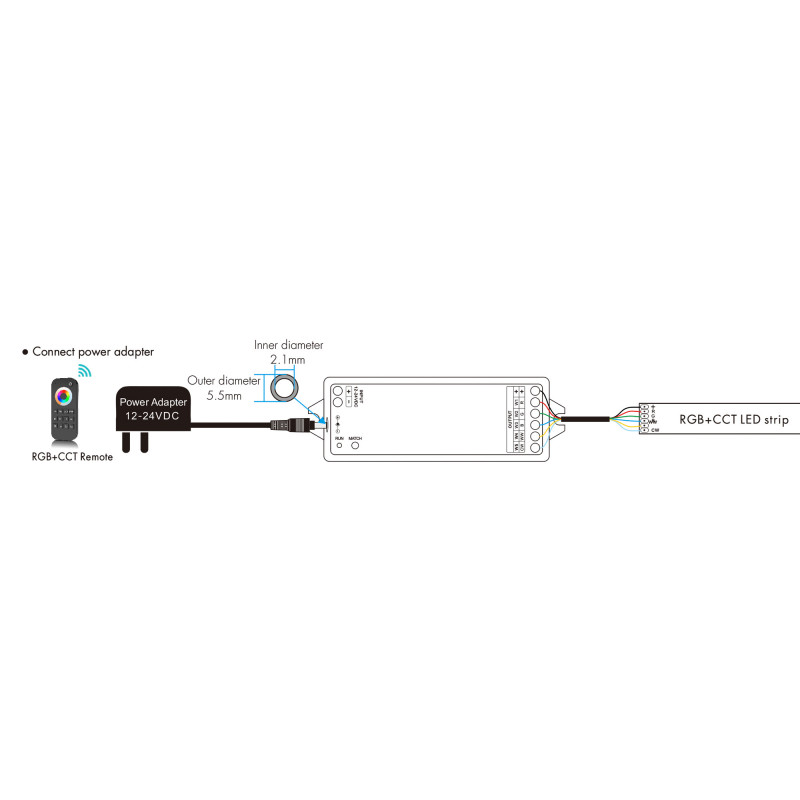

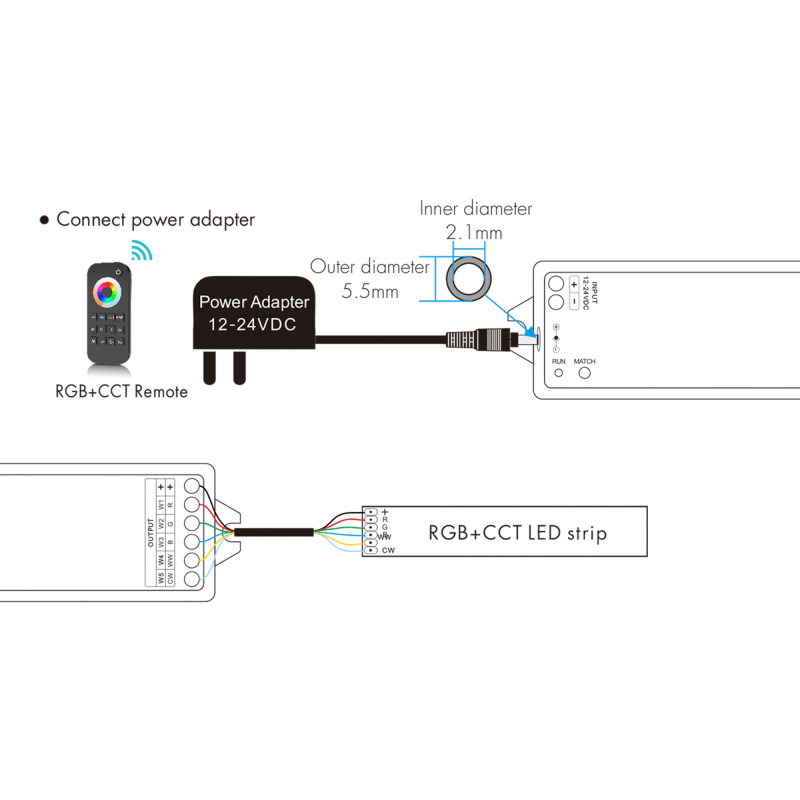

✔ Input voltage: 12-24V DC.
✔ Output current: 5 x 3A/channel
✔ Transmitting frequency: 2.4GHz
✔ Control Distance: 30m
✔ Operating Temperature: -30°C to +55°C
