Dali DC Dimmer 12-36V 8A/channel (4 channels)
DALI Dimmer SR-2303BEA Constant Voltage.
The SR-2303BEA DALI Dimmer is a constant voltage LED dimming controller with 4 channels of 8A per channel output. It complies with standard DALI protocol with 4 DALI addresses to control 4 channels separately.
Assigns DALI address automatically by master controllers or manually, with digital numeric display. Achieve 0%-100% smooth dimming with the SR-2303BEA DALI dimmer using logarithmic dimming, which is perfect for human vision.
It converts a standard DALI signal to a 12-36V-DC PWM signal for operating LED strips or similar. It can also be used to control RGB or RGBW strips.
The DALI dimming and is specially designed for dimmable LED lighting evenly, with no dimming jumps, no flickering, and no noise.
This DALI controller is compatible with SR-2300TS-DIM (4A); SR-2300TS-CCT ((4A (2ch)); SR-2300TS-RGB (4A).
Compatible with Tridonic software. App for users to control their individual luminaires via wifi network.
Main features
- Constant voltage DALI dimmer with 4 channels, 8A per output channel available in 12V-DC, 24V-DC and 36V-DC.

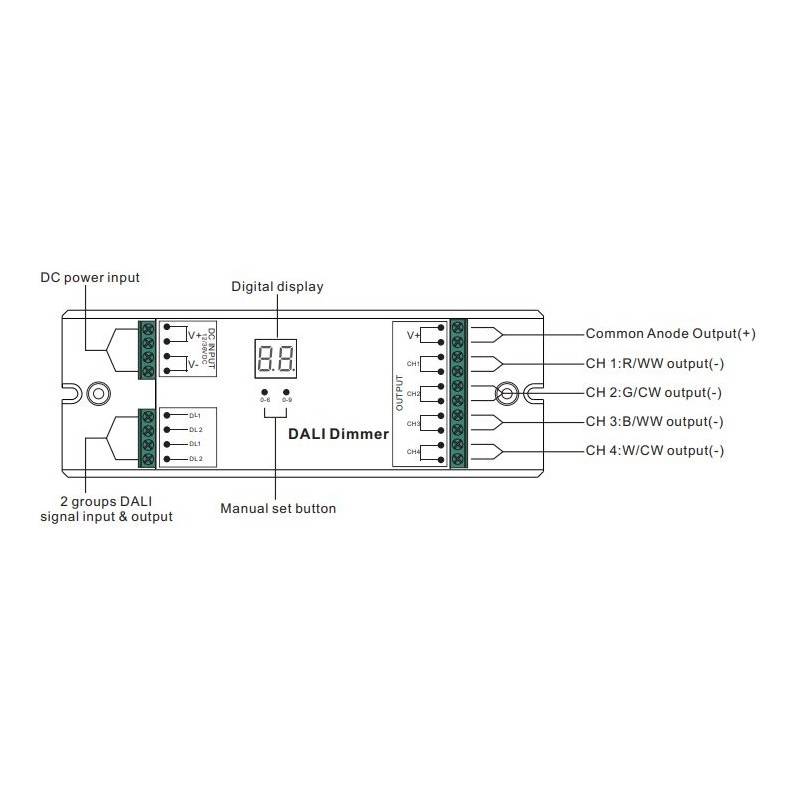

- Manual/automatic DALI address setting.
- 4 DALI channels, 4 channels work separately.
- Dimming range from 0%-100% by logarithmic characteristics.

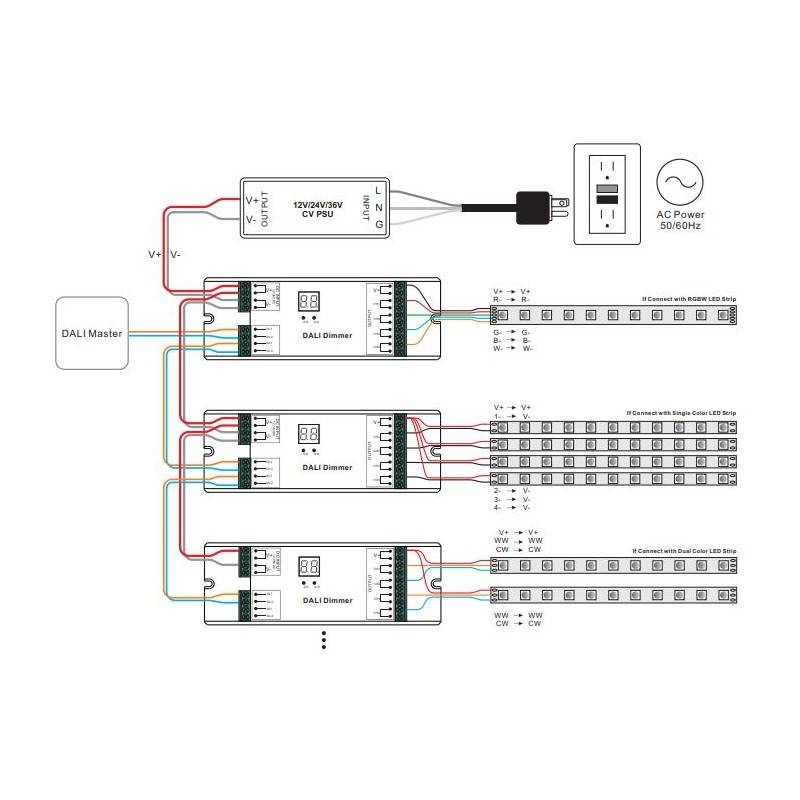

- To work with LED lights to establish a DALI lighting system.
- To work with power repeaters to expand the output unlimitedly.
- Compatible with Soft Tridonic; SR-2300TS-DIM (4A); SR-2300TS-CCT (2CH); SR-2301TS-RGBW (4A).
- DALI certified.
- TUV CE certified.
Technical characteristics of DALI DC Dimmer 8A/Channel (4ch in 1)
- 12-36V-DC
- Output current: 4x8A
- Output power: 4x(96-288)W.
- Constant voltage.
- Dimensions: 310x30.5x21mm
- IP20
- Certifications: CE, RoHS, TUV.
- Two-year warranty.
ROHS
Questions
P: Question: |
How to install dimmable led spotlights with the Dali dimmer ? The spotlights can be 220v connection? The Dali dimmer is connected to the 220v mains or has the input through a transformer? How many rooms can I control with a Dali dimmer? |
---|
R: Answer: | This model is a Dali controller for 12vdc and 24vdc LED strips. It is necessary to have installed a control bus under DALI technology protocol and a control master. A professional installer is required. Maybe you are looking for a TRIAC controller for dimmable spotlights at 220vac, for example Ref. D2501AC. |
---|
