IC Pixel RGB/RGBW LED music controller with remote control - 5-12V DC - 600 pixels

SKU:SP106E
Has superado el límite de unidades
In stock 248 units
Data sheet

The pixel LED music controller IC pixel features a small design, adaptable to narrow spaces. It also includes an RF controller and a 3-pin JST connector, easy to connect to the power supply and digital LED strips.

It has an input voltage from 5 to 12V DC and can control up to 600 pixels.

From the RF remote control it is possible to select any effect or scene from 25 preset patterns, adjusting brightness and speed.

It allows you to create amazing LED effects to the rhythm of the music.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The LED IC music controller allows you to create eye-catching lighting effects to the rhythm of music in a very simple and intuitive way.

It is compatible with numerous types of single-wire LED ICs such as: WS2811, SK6812-RGBW, SK6812, WS2812B, UCS1903, etc.

It incorporates 25 preset patterns. Brightness and speed can be adjusted as required. It also has memory function in case of accidental power off.

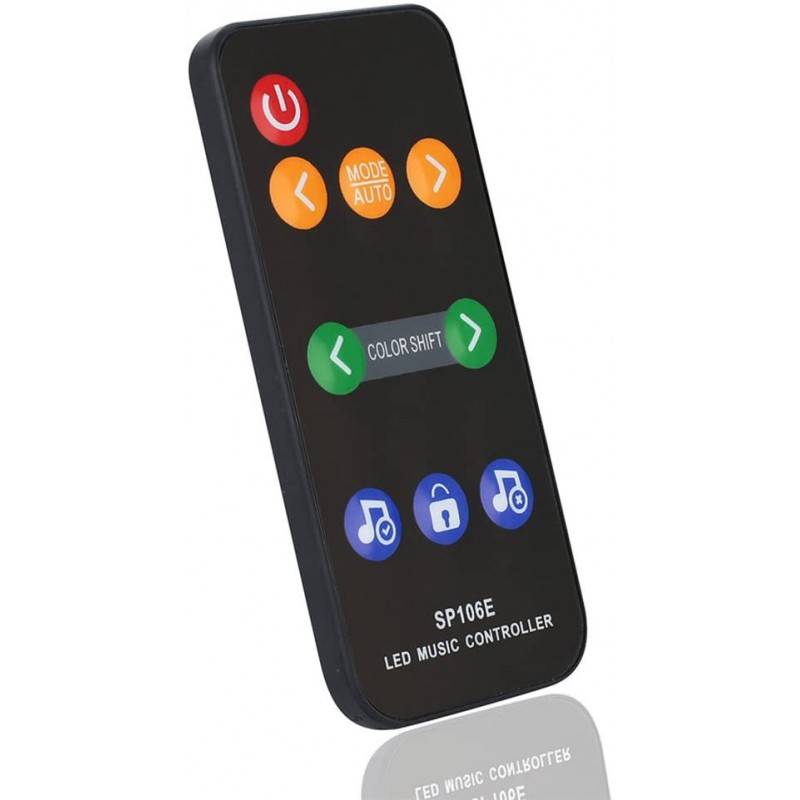

Easily controlled by the 9-key RF remote control. The controller is battery operated (included).

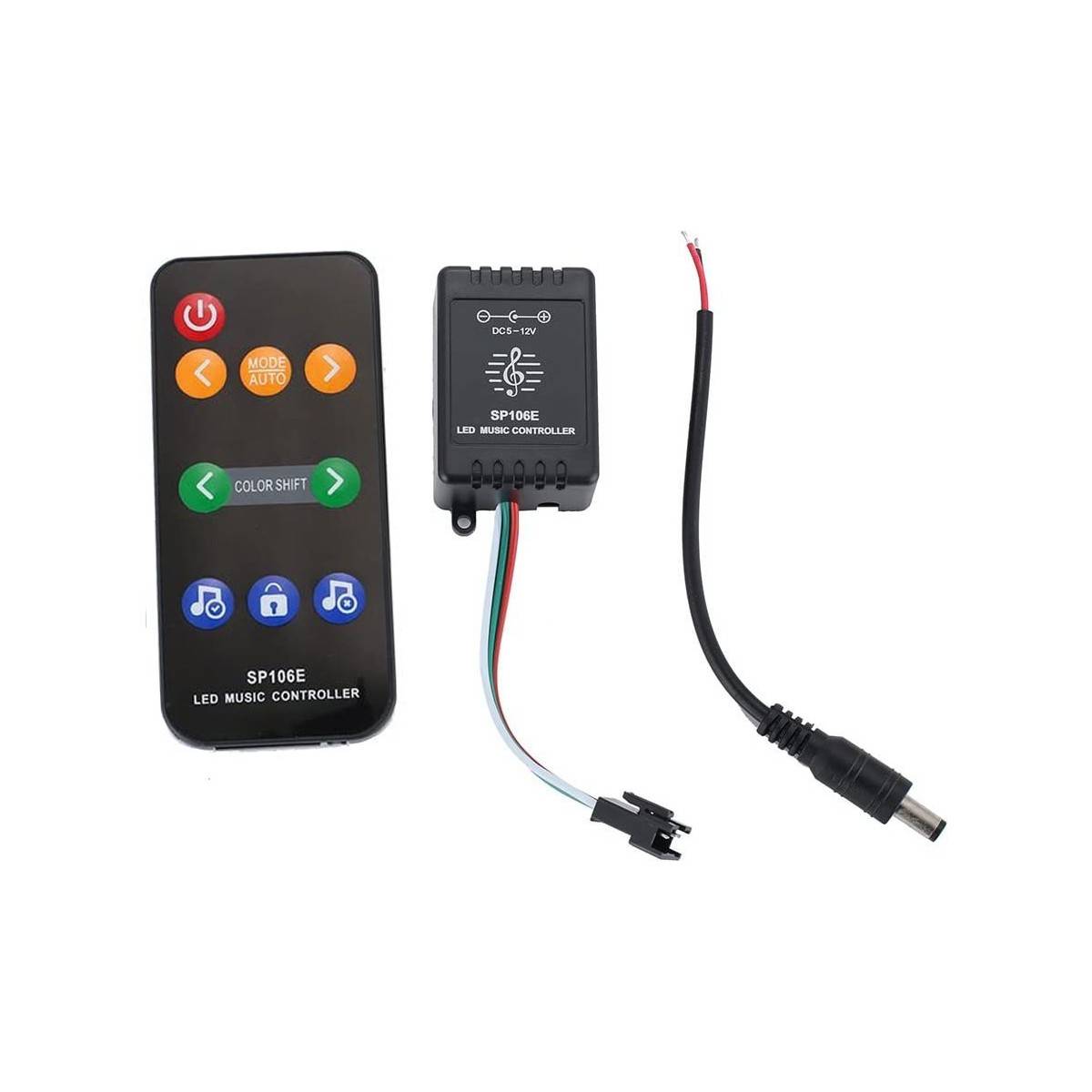

Included in the packaging are: 1 controller, 1 DC connector, 1 3-pin JST female connector, 1 RF remote control and instructions for use.

Main product features:

  • Input voltage: 5-12V DC
  • Pixels: 600
  • Connector: 3 pins
  • Control mode: RF remote control (included)
  • IP20: indoor use
  • Controller dimensions: 20 x 14 x 9 mm
  • Controller dimensions: 34 x 16 x 0.4 mm

Nominal Voltage (V)
5 -12V DC
Lifetime (h)
30000
IP
IP20
Dimensions (mm) Lxlxh
45
control: 34x16x0.4
Weight (g)
45
Material
Plastic
Use Outdoor
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: I wanted to know if with a single controller I can control 10 m of led rgb ic, the model that you have on your page. Thank you. Best regards
R: Answer: With this controller you can control 12V IC LED strips up to 10 meters.
