LED Controller IC pixel Bluetooth RGB/RGBW- 5-24V DC - 1024 Pixels
Bluetooth RGB/RGBW pixel IC LED controller RGB/RGBW- 5-12V DC - 1024 Pixels
LED Hue" application

LED Controller IC pixel Bluetooth RGB/RGBW- 5-24V DC - 1024 Pixels

SKU:SP110E
Has superado el límite de unidades
In stock 197 units
Data sheet

The LED IC controller is designed to control RGB/RGBW LED IC strips remotely from cell phone.

It has an input voltage from 5 to 24V DC and can control up to 1024 pixels.

It is possible to select any effect or scene from 120 preset patterns and allows brightness adjustment.

It is easily controlled by Bluetooth 4.0 through the "LED Hue" application that must be downloaded to the cell phone.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The WiFi LED IC controller allows you to create eye-catching effects in a very simple and intuitive way.

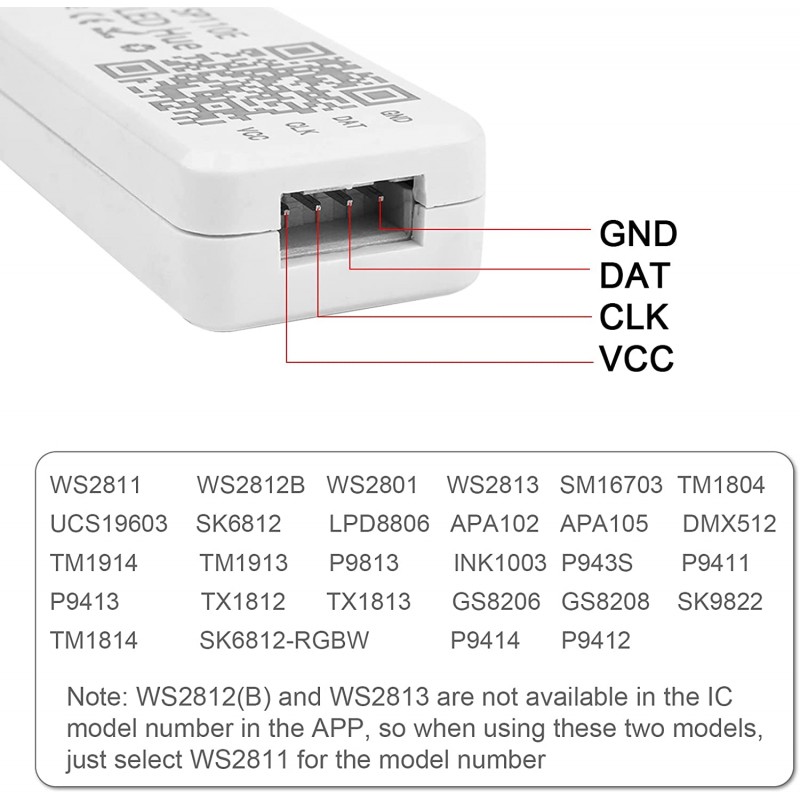

It is compatible with a wide variety of single and dual wire LED IC types: WS2812B, WS2813, SK9822, APA102, SK6812, LPD8806, DMX512, 1903, etc.*.

It incorporates a variety of preset patterns to create amazing effects. It is possible to adjust the brightness according to the needs.

It is controlled by the "LED Hue" app which is compatible with any cell phone running Android OS (version 4.4 onwards) or IOS (version 10.0 onwards). It can be downloaded from Google Play Store or from the QR code plasticized on the product.

Main product features:

  • Input voltage: 5-12V DC
  • Pixels: 1024
  • Connector: 3 pins
  • Control mode: Bluetooth 4.0
  • Control application: "LED Hue
  • IP20: indoor use

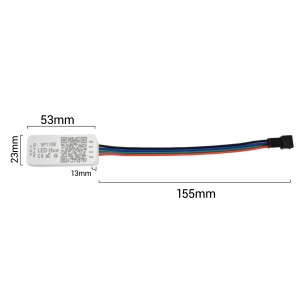

  • Controller dimensions: 53x23x13mm
  • Connector cable dimensions: 155mm

*This product is not compatible with our B1574RGB and B1575RGB LED IC strips.

Nominal Voltage (V)
5 -12V DC
IP
IP20
Hue
RGB
RGB-W
Connectivity
Bluetooth
Use Outdoor
No
Temperature range
-20℃~+60℃
Certificates
CE
ROHS
Warranty
3 years
Barcelona LED

Questions

P: Question: Dear Ladies and Gentlemen,

we are interested in the article
https://www.barcelonaled.com/de/led-steuerung-und-einstellung/steuerung-und-einstellung-rgb-12-24v/led-controller-ic-pixel-bluetooth-rgb-rgbw-5-24v-dc-1024-pixel.html?utm_source=google&utm_medium=cpc&utm_campaign=Alemania-todos&gclid=EAIaIQobChMIoPWDmfXXgQMVGJKDBx1idwI0EAQYAiABEgIZtPD_BwE

Is there a description of the API so that we can control the device ourselves via Bluetooth?

Regards,
Robert Binsack

R: Answer: Good morning,

No, unfortunately not.
Regards

Barcelona LED: Benajamin| 02/10/2023
