RGB/RGBW LED strip controller with 150W power supply - 24V DC - WIFI+2.4G - IP67
RGB/RGBW LED strip controller with 150W power supply - 24V DC - WIFI+2.4G - IP67
RGB/RGBW LED strip controller with 150W power supply - 24V DC - WIFI+2.4G - IP67

RGB/RGBW LED strip controller with 150W power supply - 24V DC - WIFI+2.4G - IP67

SKU:WP4-P150
Has superado el límite de unidades
In stock 73 units
Data sheet

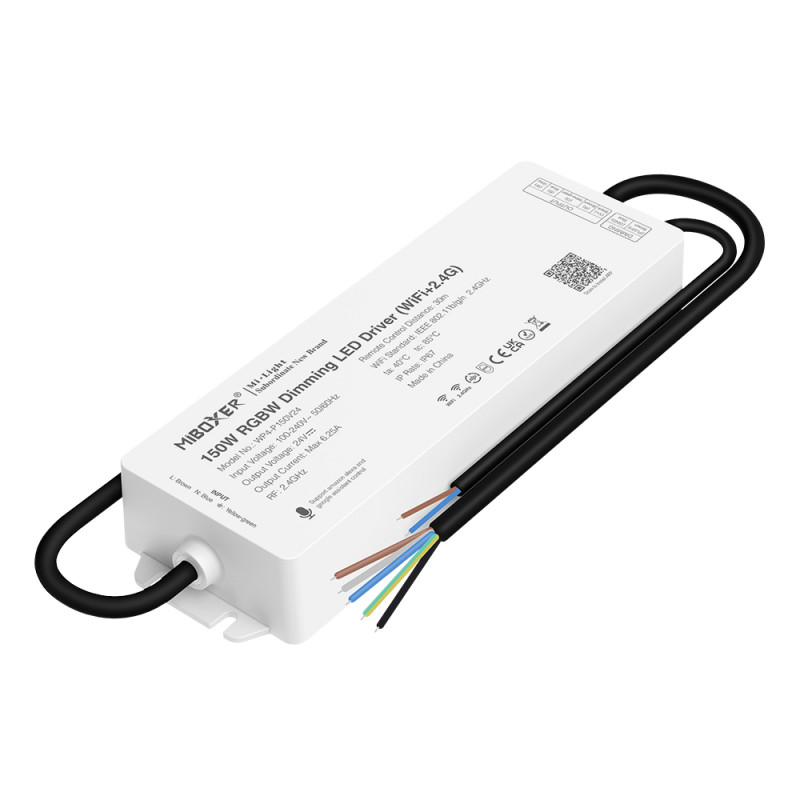

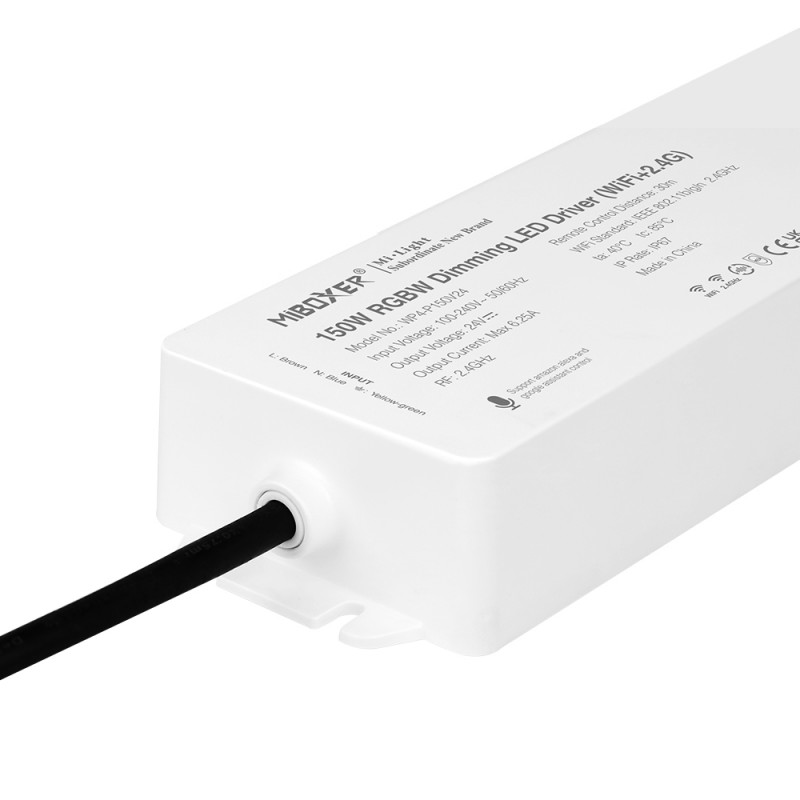

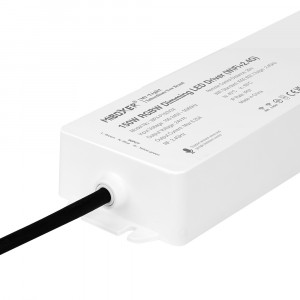

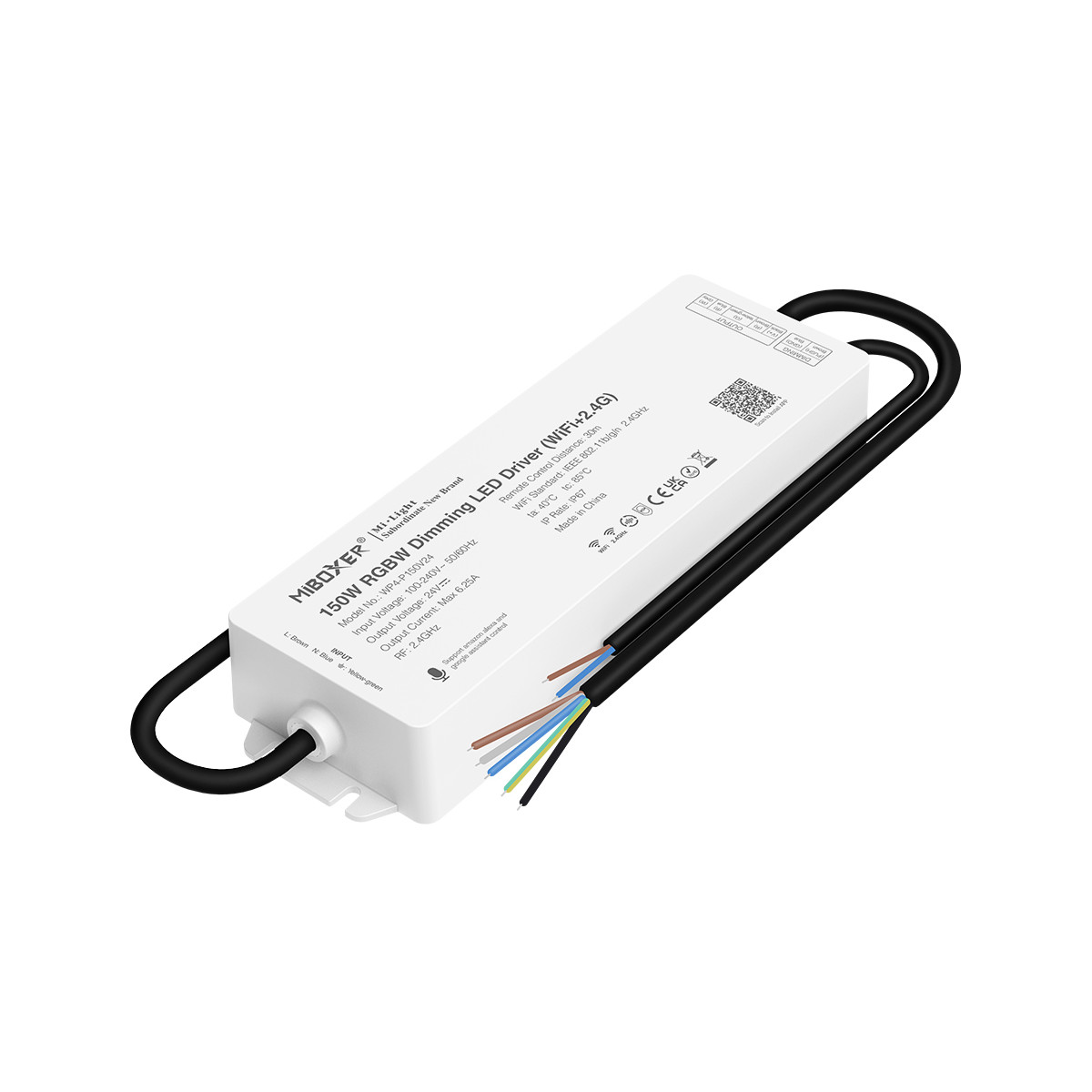

MiBoxer waterproof LED strip controller with built-in 150W power supply.

With dual functionality, it acts as a controller allowing adjustments for brightness, saturation, color temperature, among others; and as a power source supports 24V LED strips with a power capacity of up to 150W and an intensity of 6.25A.

It's compatible with RGB and RGBW LED strips. It can be controlled via WiFi through the TUYA app, voice devices such as Alexa and Google, or via a compatible remote control (2.4GHz RF).

In addition, its IP67 protection rating makes it suitable for outdoor use

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

This controller offers a complete solution for powering and controlling 24V RGB and RGBW LED strips. By incorporating an internal power supply, it eliminates the need to purchase an additional one.

It enables the distant management of LED strips using a MiBoxer RF remote control. The 2.4Ghz communication provides fast response, without interference. The maximum distance between the remote and the nearest controller is 30 meters.

Additionally, the LED strips can also be controlled via WIFI if a compatible WIFI adapter is connected. Supports management via "TUYA" app and via voice control (Alexa, Google Assistant).

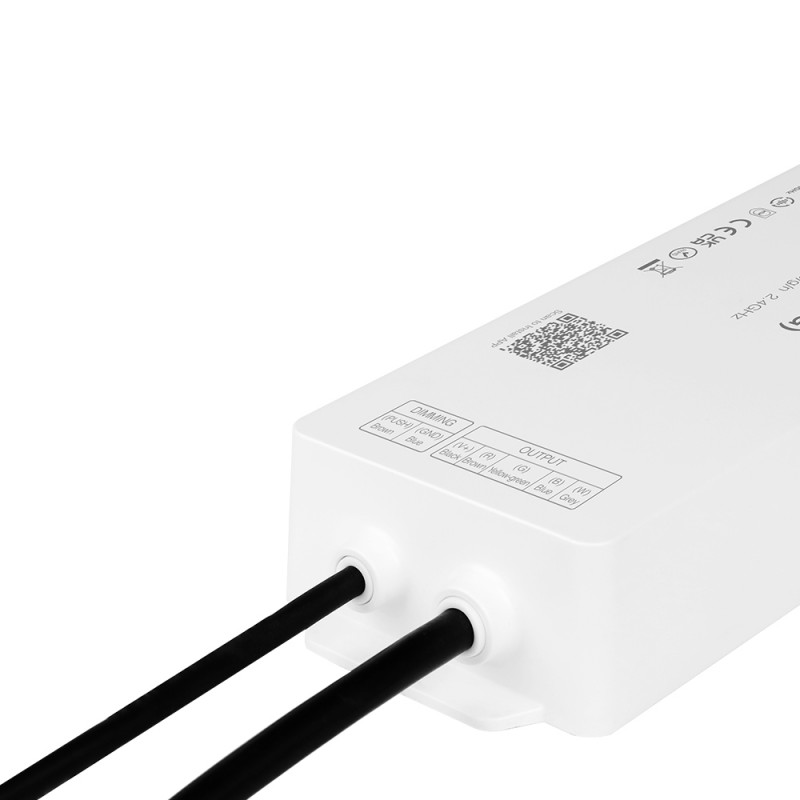

Supports PUSH dimming.

As a power source, it features an output capacity of up to 150W, ensuring a steady and efficient supply of power for 24V-operating LED strips.

It features IP67 rating, which makes it resistant to external factors such as rain and dust.

Product features:

  • Input voltage: 100-240V AC
  • Output voltage: 24V DC
  • Control distance: 30 meters
  • Maximum current: 6.25A
  • Communication: WiFi / 2.4GHz / Bluetooth
  • RGB / RGBW

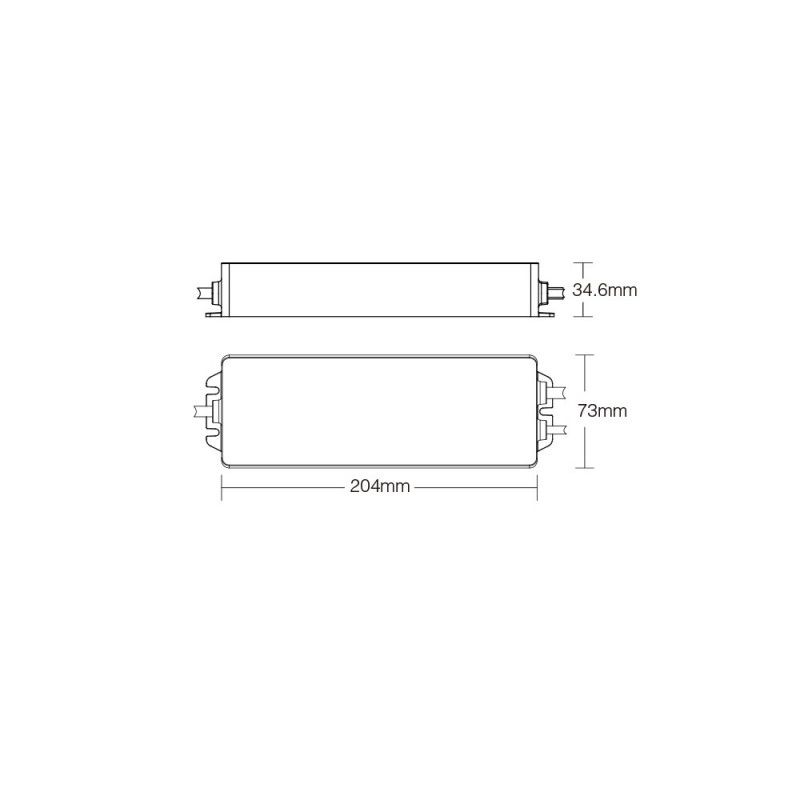

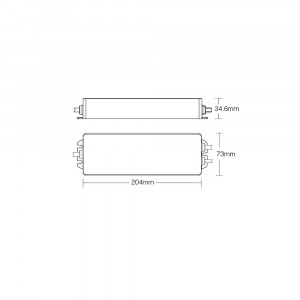

  • Dimensions: 204 x 73 x 34,6 mm
  • IP67: outdoor use

Nominal Voltage (V)
100 - 240 V/AC
IP
IP67
Dimensions (mm) Lxlxh
204 x 73 x 34.6
Control system
PUSH
Output voltage (V)
24V
Connectivity
Bluetooth
RF
Wifi
Use Outdoor
Yes
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
6.25
Control Distance
30m
