LED Strip Controller 2 in 1- Single color - Dual white - 12/24V DC - 2.4G - WiFi - MiBoxer - FUT035W+
LED Strip Controller 2 in 1- Single color - Dual white - 12/24V DC - 2.4G - WiFi - MiBoxer - FUT035W+
LED Strip Controller 2 in 1- Single color - Dual white - 12/24V DC - 2.4G - WiFi - MiBoxer - FUT035W+

LED Strip Controller 2 in 1- Single colour - Dual white - 12/24V DC - 2.4G - WiFi - MiBoxer - FUT035W+

SKU:FUT035W+
Has superado el límite de unidades
In stock 136 units
Data sheet

The MiBoxer 2 in 1 LED dimmer controller - 12/24V DC is a device that allows to control single color LED strips and CCT. It uses PWM technology and 2.4GHz wireless communication. It supports a voltage range from 12V to 24V and allows you to adjust brightness, saturation, color temperature, etc.

It has 2 output modes (single color/dual white) and can be controlled remotely via WiFi using the TUYA app or voice devices such as Alexa and Google. It can also be used with a compatible remote control.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The single/dual color controller allows remote control of LED strips using a MiBoxer RF controller (Compatible references: FUT006 and FUT007). The 2.4Ghz communication provides a fast response, without interference. The maximum distance between the remote and the nearest controller is 30 meters.

In addition, the LED strips can also be controlled via WIFI if a compatible WIFI adapter is connected. Supports control via "TUYA" app and via voice control (Alexa, Google Assistant).

It allows to change the output mode from "single color" to "dual white" through one button.

The installation of the controller is very simple, it is powered at 12-24 V DC via a Jack connector or can be connected via cable directly into the V+/V- ports. A maximum output current of 12A is obtained, which is usually the current at which most LED Strips on the market operate.

Precautions

  • Verify that the input voltage power supply is compatible with the controller.
  • Try not to use the controller in a place of large metal area or strong electromagnetic wave nearby, otherwise the remote control distance will be affected.

Product features:

  • Voltage: 12-24V-DC
  • Control distance: 30 meters
  • Control current: Max 12A/Channel
  • Communication: WiFi / 2.4GHz / Bluetooth
  • Compatible controllers: Ref. FUT007 and FUT006
  • 2 output types: single color / dual white

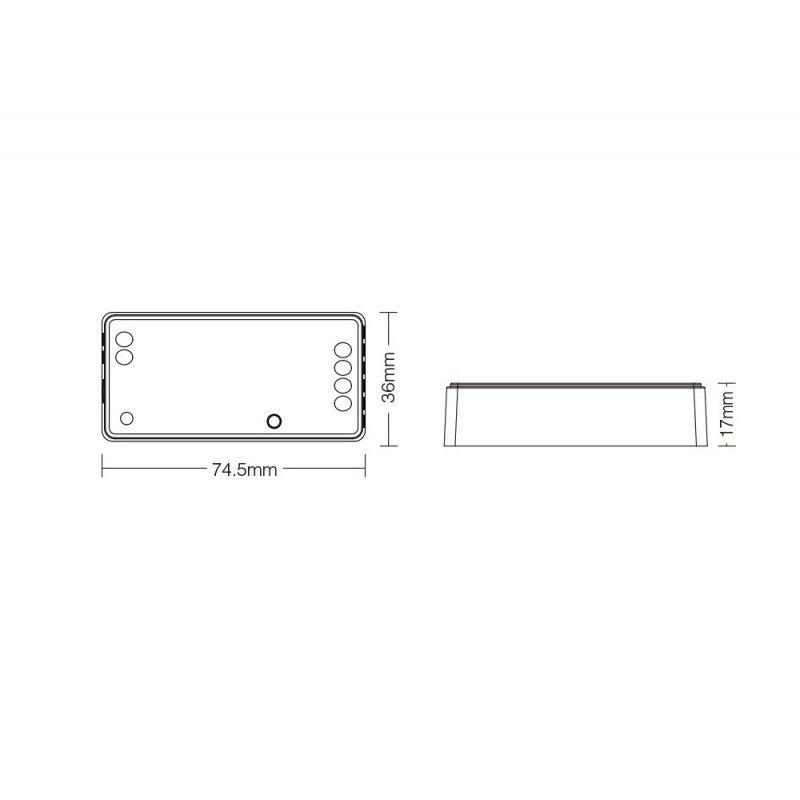

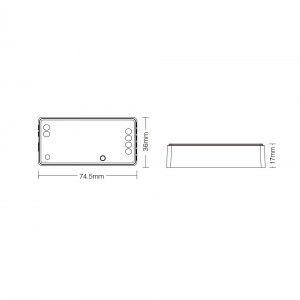

  • Dimensions: 74,5 x 36 x 17 mm

Nominal Voltage (V)
12-24V
IP
IP20
Dimensions (mm) Lxlxh
74,5x36x17
Colour control
CCT
Monocolor
Connectivity
Bluetooth
RF
Wifi
Material
Plastic
Use Outdoor
No
Temperature range
-10~40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
12
Control Distance
30m
