3 in 1 LED strip controller - RGB - RGBW - RGB+CCT - 12/24V DC - 2.4G - MiBoxer - FUT037S+

3 in 1 LED strip controller - RGB - RGBW - RGB+CCT - 12/24V DC - 2.4G - MiBoxer - FUT037S+

SKU:FUT037S+
Has superado el límite de unidades
Out of stock
Data sheet

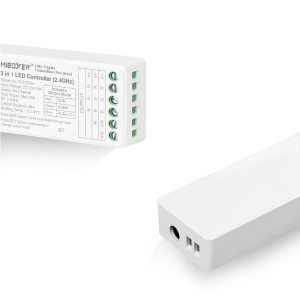

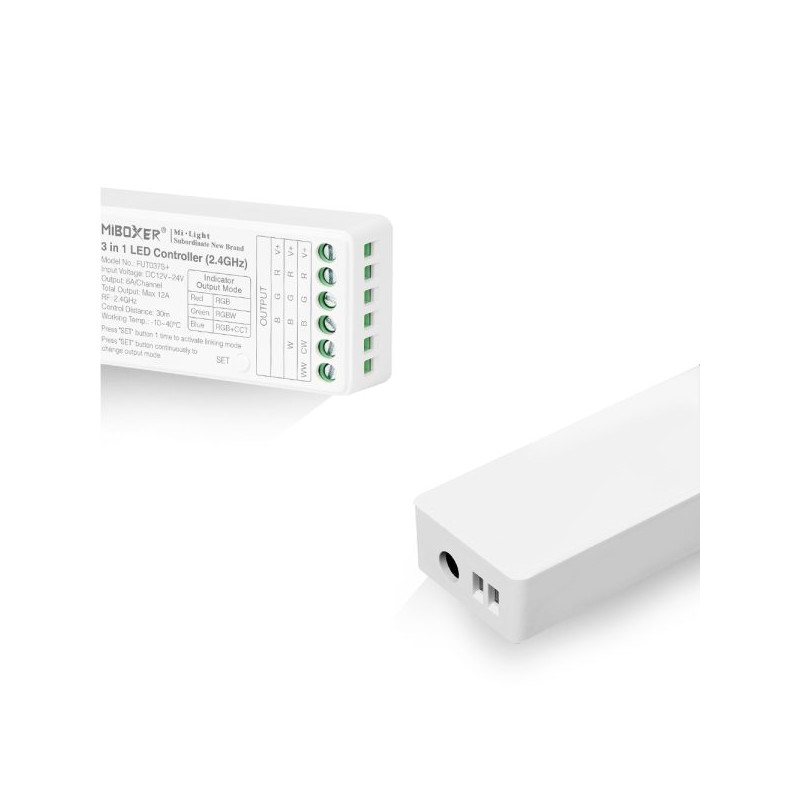

The MiBoxer 3 in 1 LED dimmer controller - 12/24V DC is a device that allows you to control RGB, RGBW + CCT LED strips.

It uses PWM technology and 2.4GHz wireless communication. It supports voltage range from 12V to 24V and allows you to adjust brightness, saturation, color temperature, etc.

It has 3 output modes (RGB, RGBW and RGB+CCT) and can be controlled by a compatible remote control.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The 3-in-1 controller allows remote control of LED strips using a MiBoxer RF remote.

The 2.4Ghz communication provides fast response, without interference. The maximum distance between the remote and the nearest controller is 30 meters.

It allows to change the output mode from "RGB" to "RGBW" and "RGB + CCT" through one button.

The installation is very simple, it's powered at 12-24V DC through a Jack connector or it can be directly connected via cable to the V+/V- ports. A maximum output current of 12A is obtained, which is usually the current at which most LED Strips on the market operate.

Supports PUSH dimming and DMX control (Only for RGB+CCT output mode, need DMX512 LED transmitter).

Also supports smartphone app control and voice control (requires 2.4 GHz gateway).

Preautions

  • Verify that the voltage input of the power supply is compatible with the controller.
  • Avoid using the controller in an area with a large metal suface or strong electromagnetic waves nearby; otherwise, the remote control distance may be affected.

Product features:

  • Voltage: 12-24V DC
  • Control distance: 30 meters
  • Control current: Max 12A/Channel
  • Communication: 2.4GHz
  • Compatible remote controls: Ref. FUT092 and FUT096
  • 3 output types: RGB / RGBW / RGB + CCT
  • Dimensions: 74,5 x 36 x 17 mm

Nominal Voltage (V)
12-24V
IP
IP20
Dimensions (mm) Lxlxh
74.5 x 36 x 17
Colour control
RGB
RGB+CCT
RGBW
Connectivity
RF
Material
Plastic
Use Outdoor
No
Temperature range
-10~40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
12
Control Distance
30m
