LED Strip Controller 3 in 1- RGB- RGBW - RGB+CCT - WiFi+2.4G

LED Strip Controller 3 in 1- RGB/RGBW - RGB+CCT - 12/24V DC - 2.4G - WiFi - MiBoxer - FUT037W+

Name: LED Strip Controller 3 in 1- RGB- RGBW - RGB+CCT - WiFi+2.4G
Brand: Mi Light
SKU: FUT037W+
Price: 26.99 EUR
Availability: InStock

SKU:FUT037W+

€26.99 Tax included

In stock 62 units

Data sheet

The MiBoxer 3 in 1 LED dimmer controller - 12/24V DC is a device that allows you to control RGB, RGBW + CCT LED strips. It uses PWM technology and 2.4GHz wireless communication. It supports a voltage range from 12V to 24V and allows you to adjust brightness, saturation, color temperature, etc.

It has 3 output modes (RGB, RGBW and RGB+CCT) and can be controlled remotely via WiFi using the TUYA app or voice devices such as Alexa and Google. It can also be used with a compatible remote control.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

The 3-in-1 controller allows remote control of LED strips using a MiBoxer RF controller (Compatible products FUT092 and FUT096). The 2.4Ghz communication provides a fast response, without interference. The maximum distance between the remote and the nearest controller is 30 meters.

In addition, the LED strips can also be controlled via WIFI if a compatible WIFI adapter is connected. Supports control via "TUYA" app and via voice control (Alexa, Google Assistant).

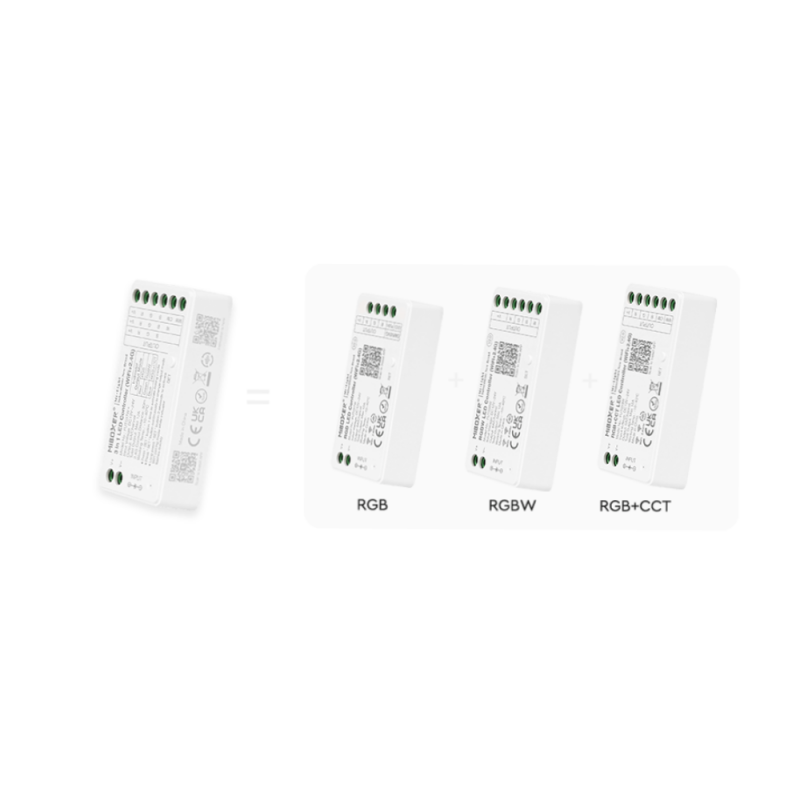

Supports switching output mode from "RGB" to "RGBW" and "RGB + CCT" through one button.

Supports PUSH dimming.

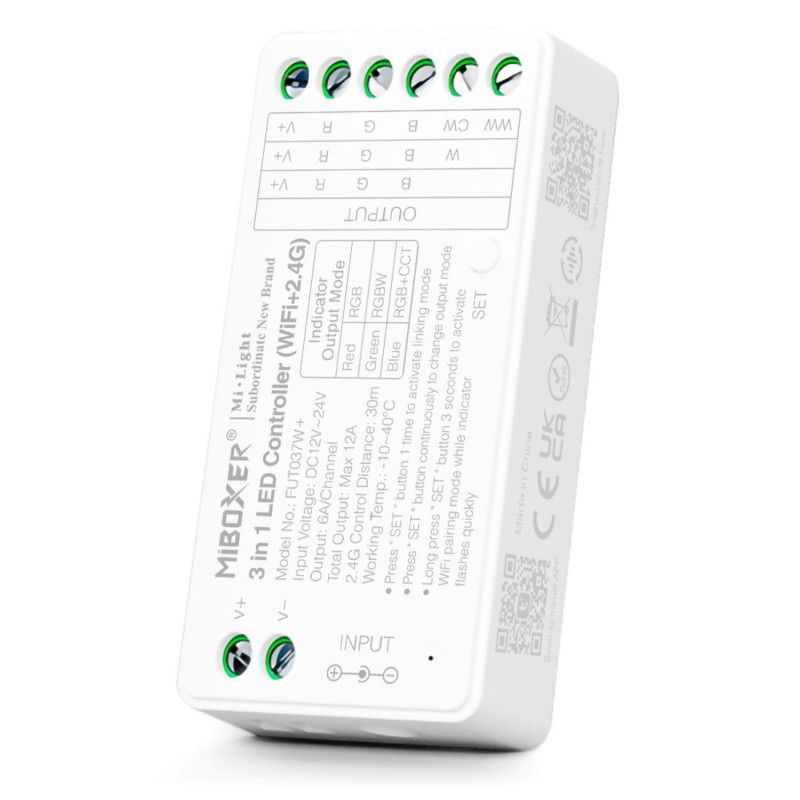

The installation of the controller is very simple, it can be powered using a 12-24V DC source through a jack connector, or alternatively, you can connect it directly using cables to the V+ and V- ports. A maximum output current of 12A is obtained, which is usually the current at which most LED Strips on the market operate.

Precautions

Verify that the power supply's input voltage is suitable for use with the controller.
Try not to use the controller in a place of large metal area or strong electromagnetic wave nearby, otherwise the remote control distance will be affected.

Product features:
