SKU:SK-V3-L
Has superado el límite de unidades
In stock 22 units
Data sheet

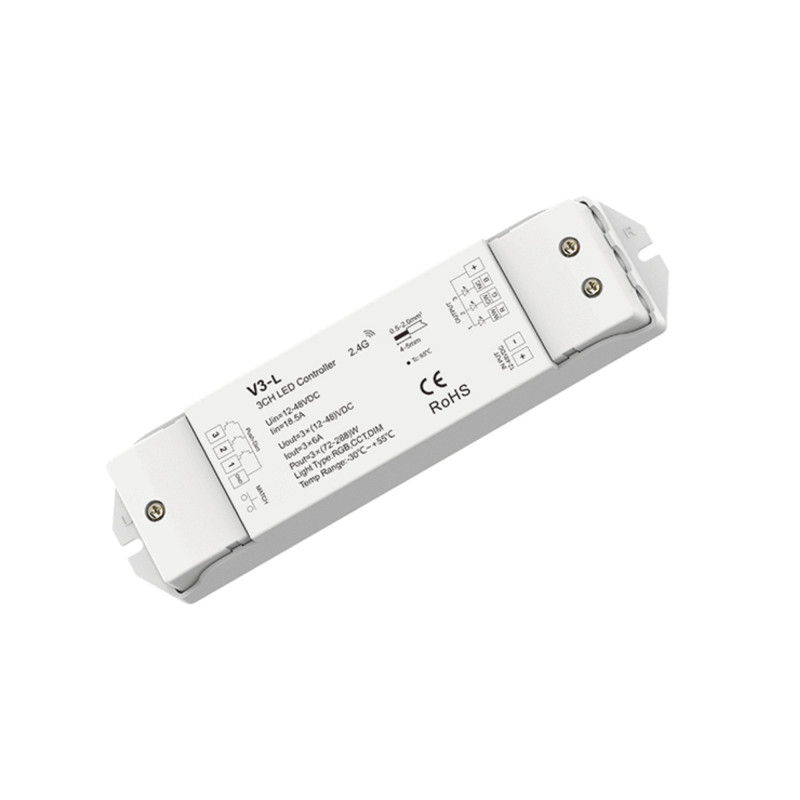

3-channel RGB/CCT/Single colour controller for 12-48V LED luminaires.

It features 10 preset dynamic modes.

It offers smooth dimming from 0 to 100% without flickering and is compatible with 2.4G Skydance RGB or CCT RF remote controls.

It's PUSH dimmable.

It features 'auto-transmission' and 'auto-synchronization' functions, allowing it to send signals to other controllers and synchronize them when they are controlled by the same remote control.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

RGB / CCT / Single colour Controller 12-48V DC -18A - RF 2.4G - PUSH dimmer

This RGB/CCT/Single colour controller is a versatile and comprehensive solution for light management in both domestic and commercial environments.

It allows for the control of RGB, CCT and signle colour LED luminaires from 12 to 48V DC.

It incorporates 10 predefined dynamic modes, ranging from jumps to smooth color transitions.

It offers smooth, flicker-free dimming from 0-100% in 4096 levels.

It allows adjusting the lighting from anywhere in the room, thanks to its compatibility with RF 2.4G remote controls for one or multiple zones (see related products). Moreover, a single controller can accept up to 10 remote controls.

It supports a maximum load capacity of 18A (6A/channel).

To ensure safety and durability, it's equipped with protection against overheating, overload and short circuits.

Innovative functions:

  • Auto-transmission: One controller can send signals to another one within 30 metres, extending the range of the remote control.
  • Auto-synchronization: Several controllers within 30 metres can work together when controlled by the same remote control, ensuring uniform lighting.


It's important to consider that the communication distance between controllers can reach up to 30 metres, but the presence of metallic materials or strong signal sources such as WiFi routers or microwave ovens can affect the range. It's recommended that, for indoor applications, the distance between controllers should not exceed 15 metres to ensure optimal operation.

    • "Light on/off fade time" function: offers the option to select a dimming time when turning the light on or off, with a smooth 3-second transition that provides a more pleasant and comfortable lighting experience.


PUSH dimming:

This product accepts up to 3 PUSH buttons and allows for various functions such as color adjustments, changes in hue, dimmer control from 0-100%, etc.

Single colour (3 channels)

Button 1

Press ON/OFF to activate channel 1, press and hold 1-6 sec. for UP/DOWN dimming.

Button 2

Press ON/OFF to activate channel 2, press and hold 1-6 sec. for UP/DOWN dimming

Button 3

Press ON/OFF to activate channel 3, press and hold 1-6 sec. for UP/DOWN dimming

CCT (Dual white)

Button 1

Press ON/OFF to turn on lights, press and hold 1-6 sec. for UP/DOWN dimming

Button 2

Press ON/OFF for the 3 color temperatures (WW, NW, CW). Press and hold for 1-6 sec. for UP/DOWN temperature adjustment.

Button 3

Not valid

RGB

Button 1

Press ON/OFF to turn lights on, hold down 1-6 sec. for UP/DOWN dimming

Button 2

Press ON/OFF to change dynamic modes, press and hold 2 sec. to adjust speed (1-10 levels)

Button 3

Press ON/OFF to change static RGB colors (24 options), press and hold 1-6 sec. to adjust saturation.

Product features:

  • Input and output voltage: 12-48V DC
  • 3 channels
  • Output current: 18A: 6A/Channel
  • Dimmable by PUSH
  • 0-100% brightness dimming
  • Compatible with 2.4G RF remote controls
  • Power: 3x(72-288)W
  • Max. control distance: 30m
  • IP20: indoor use
  • Logarithmic dimming curve
  • PMW frequency: 1000Hz (default)

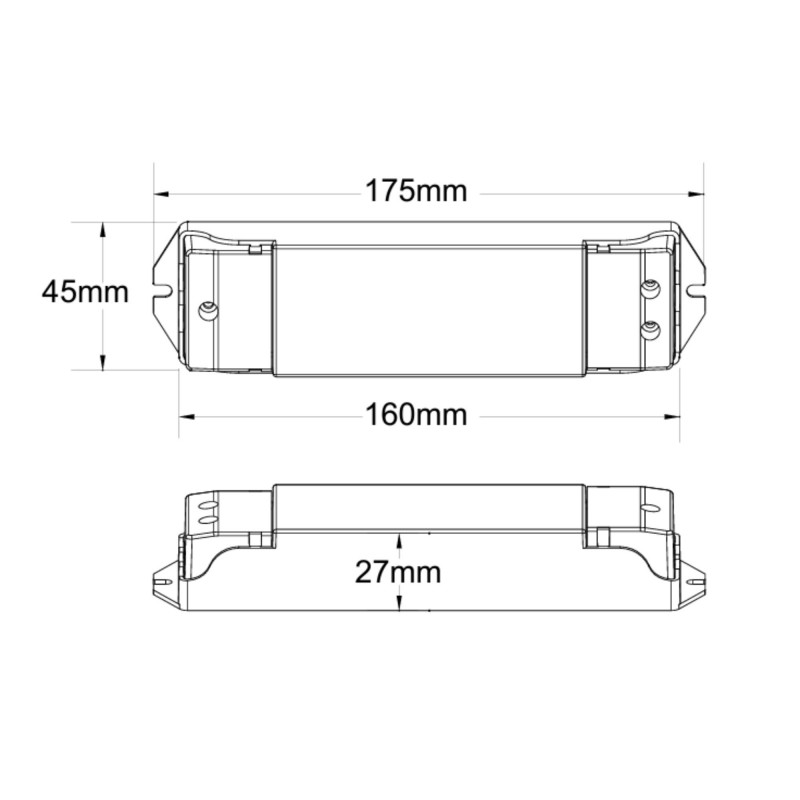

  • Dimensions: 175 X 45 X 27 mm

Nominal Voltage (V)
12-48VDC
IP
IP20
Dimensions (mm) Lxlxh
175 X 45 X 27
Colour control
RGB+CCT
Connectivity
RF
Number of channels
3
Use Outdoor
No
Certificates
CE
ROHS
Warranty
5 years
Maximum intensity (A)
6A/canal
Control Distance
30m
Skydance
