RGB + CCT touch control panel - 4 zones - White - MiLight

SKU:B4-RGBCCT
Has superado el límite de unidades
In stock 83 units
Data sheet

The Milight touch control panel offers complete lighting control for 12-24V RGB + CCT LED luminaires.

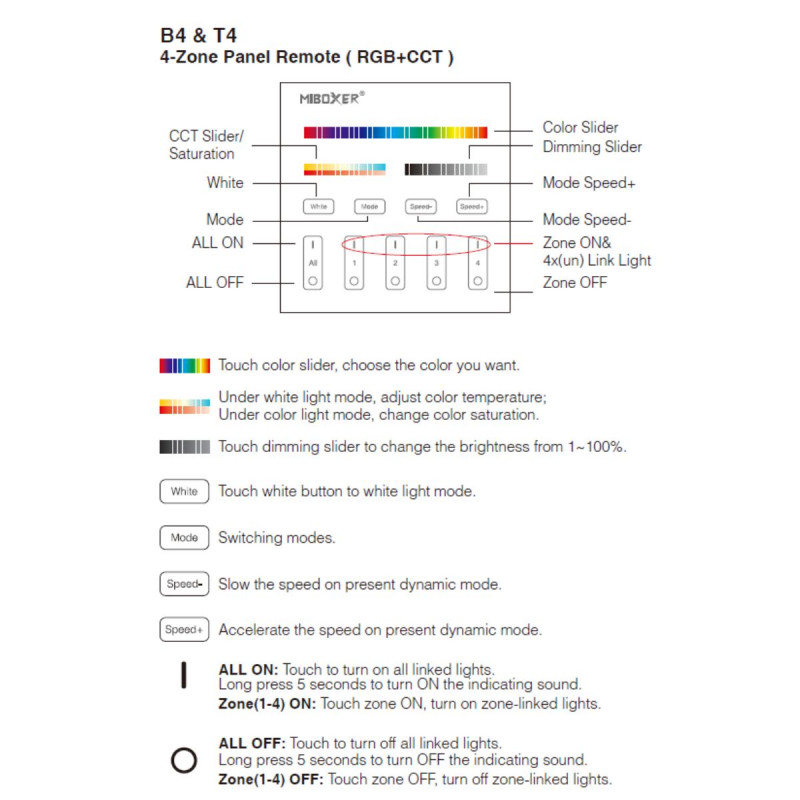

With a sleek, high sensitivity touch interface it allows you to adjust brightness, saturation, color, speed in scenes and dynamic modes, etc.

Compatible with Mi-Light/MiBoxer line of LED controllers.

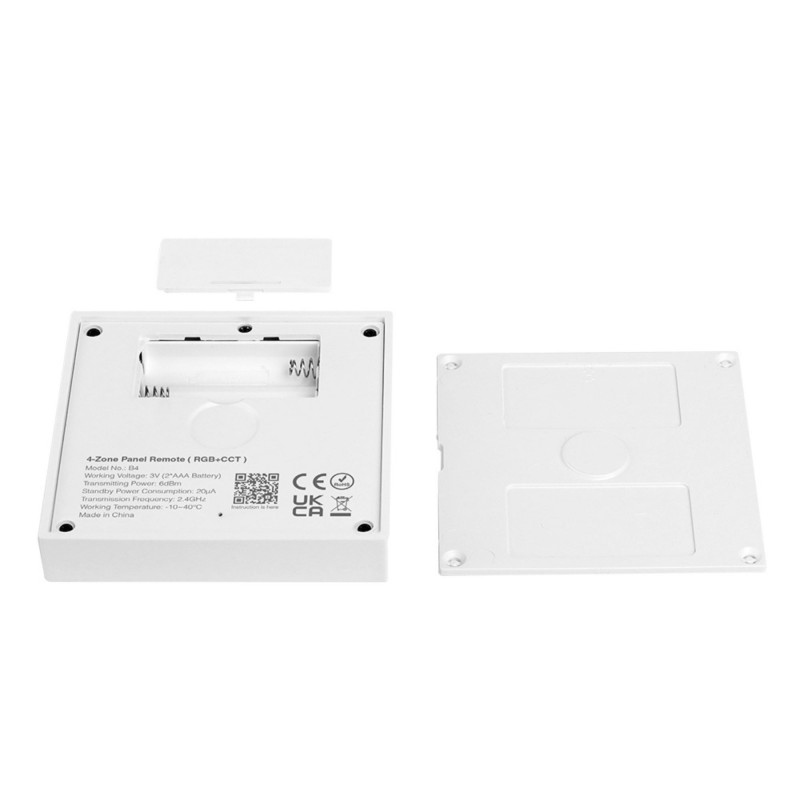

** Powered by 2 AAA batteries - NOT included**.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  commercial@barcelonaled.fr

Elegant and Practical Design

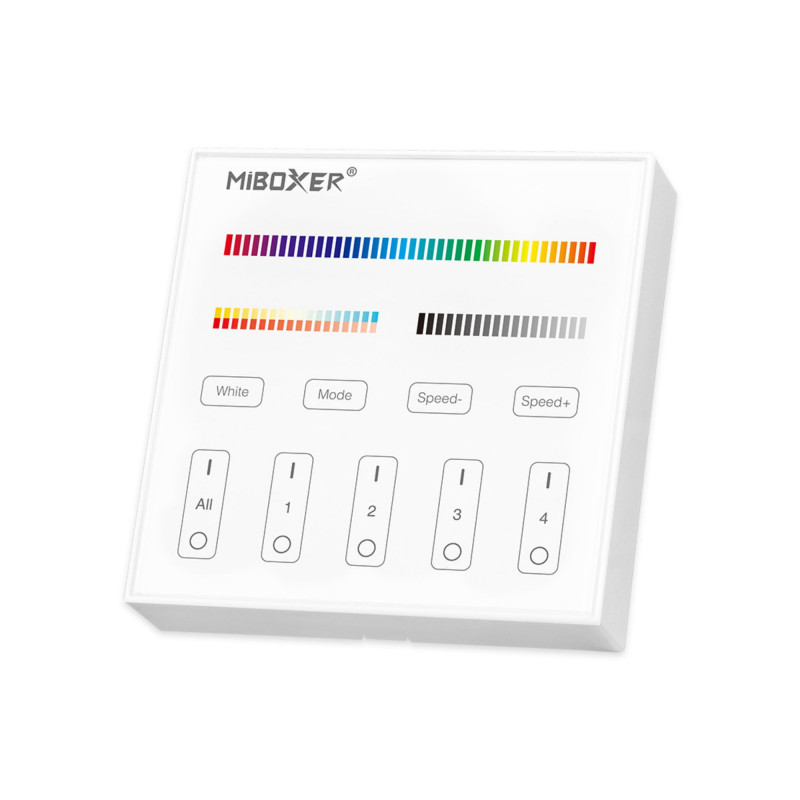

The Milight Touch Panel stands out for its modern and elegant white design, capable of elevating the aesthetics of any space.

Its backlit capacitive touch screen allows precise and intuitive control of RGB + CCT lighting with a range distance of up to 30m.

It features high speed 2.4GHz RF transmission with low power consumption.

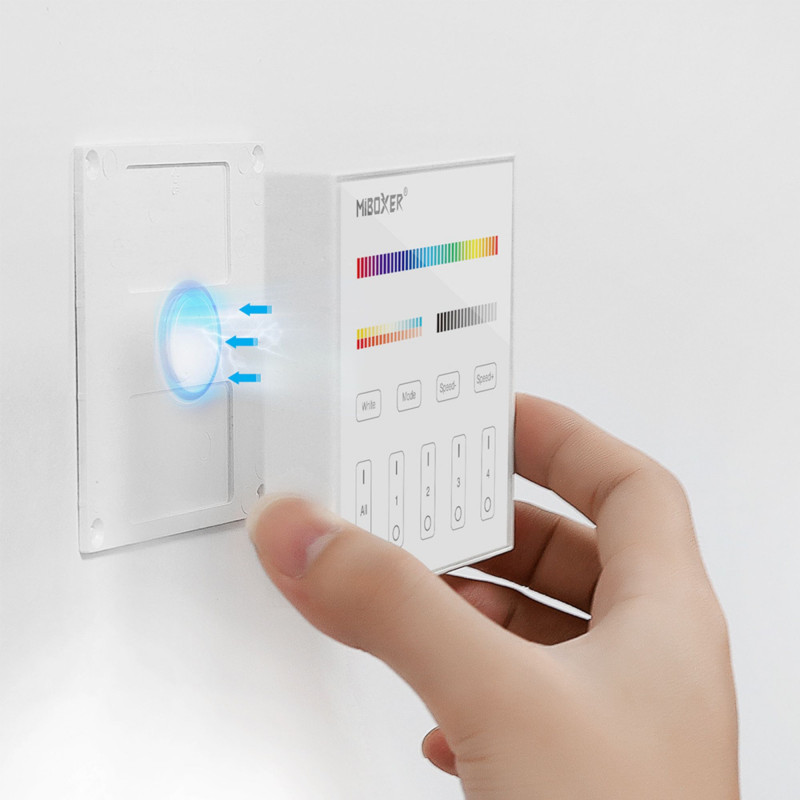

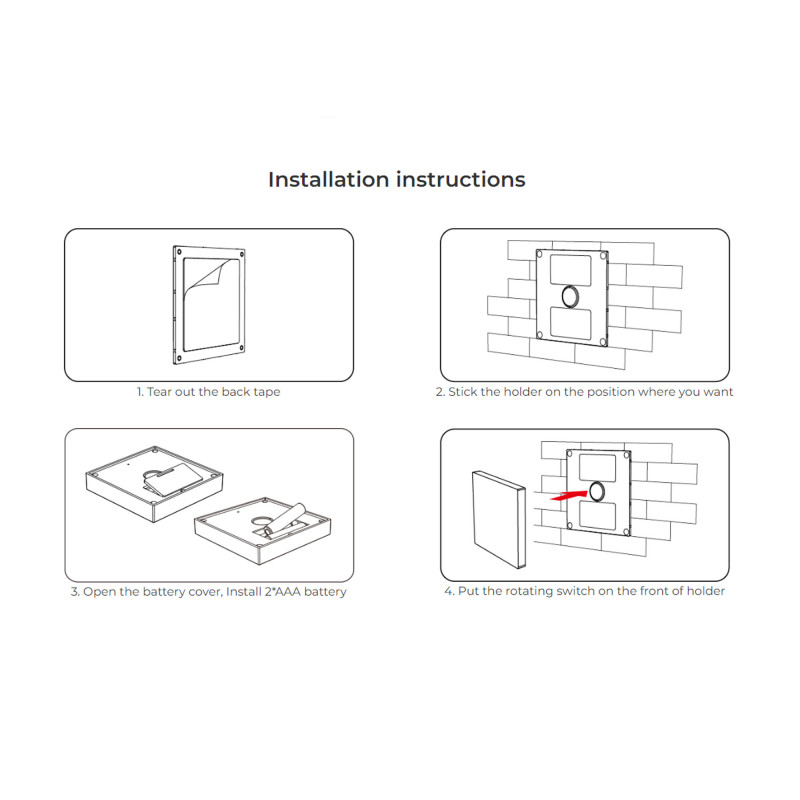

Installation is easy: the self-adhesive base is fixed to the wall and the panel is placed on the wall and firmly attached by magnetism.

Versatile Lighting Control

This touch panel allows the control of 4 zones together or independently, giving rise to lighting customizations for each space and controlled ignition, in line with the latest trends in interior lighting.

Through simple touches, it allows adjustment of brightness, colors and color temperature from warm white to cool white.

With full control over more than 16 million colors, you can customize lighting for any occasion. From cozy dinners to vibrant events, this panel gives you the freedom to create the perfect ambiance.

Featured features:

    • 4-zone control.
    • 9 dynamic programs available.
    • Confirmation sound when any key is pressed.
    • Compatible with RGB + CCT LED luminaires.
    • In CCT mode allows to adjust the color temperature between 2700K to 6500K.
    • Allows to change the speed of the dynamic programs.

Main product features:

  • 4 zones
  • Input signal: Touch
  • Output Signal: RF 2.4GHz
  • Powered by 2 AAA batteries (not included)

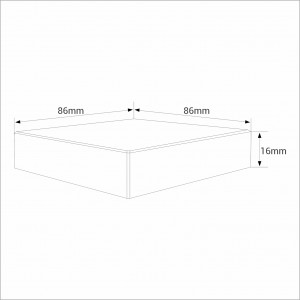

  • Dimensions: 86 x 86 x 16 mm
  • Color: white
  • Indoor use: IP20
Lifetime (h)
30000
IP
IP20
Dimensions (mm) Lxlxh
86 X 86 X 16
Dimmable
Yes
Colour control
RGB+CCT
Material
Front panel: Tempered glass
Polycarbonate
Use Outdoor
No
Temperature range
-10~40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
