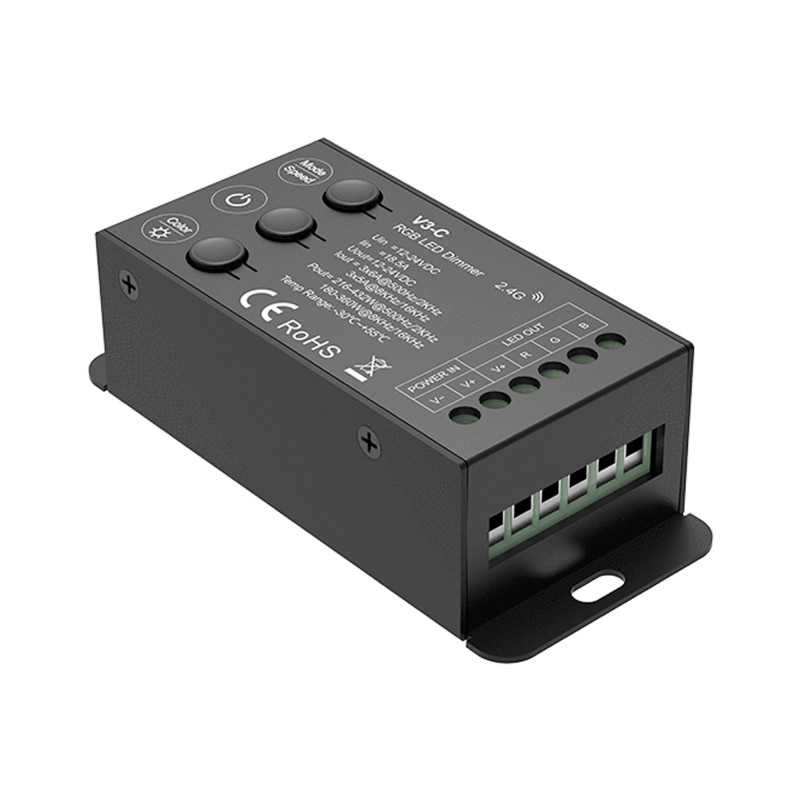

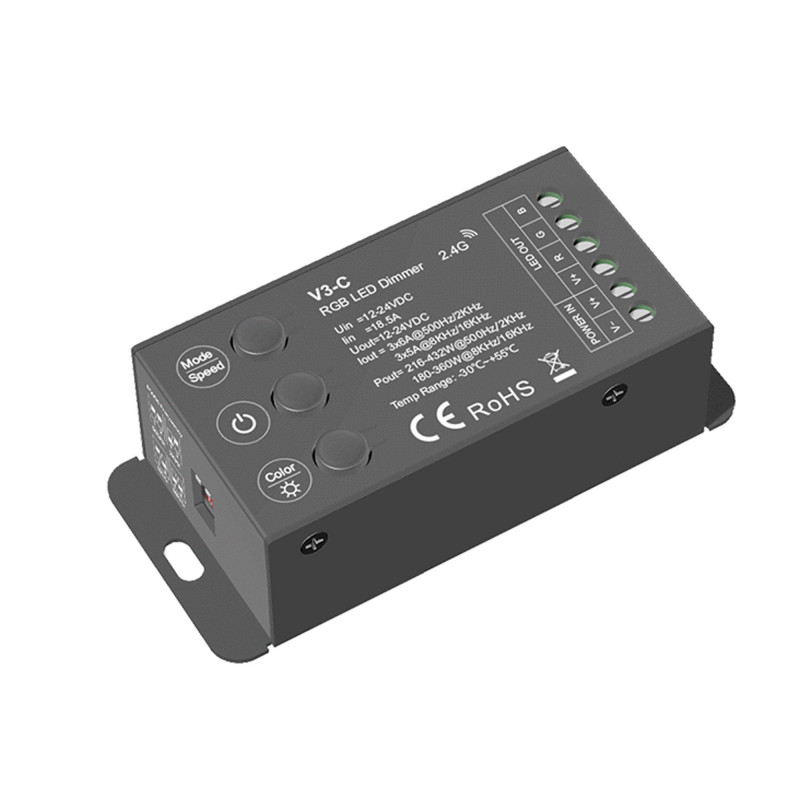

RGB Controller - 12-24V DC - 3 channels - RF 2.4GHz and button control - Skydance
3-channel RGB controller: Versatile lighting control
This controller is a versatile solution for managing LED luminaires in home and commercial environments.
- Compatibility: Compatible with Skydance 2.4GHz RF RGB remote controls.
- Dynamic modes: 10 preset modes in RGB mode, including jumps and smooth transitions.
- Flicker-free dimming: Offers 0-100% dimming in 4096 levels.
- Multiple control: A single controller can accept up to 10 remote controllers, and one controller can control an unlimited number of controllers.
- Load capacity: 3x6A (500Hz/2KHz) - 3x5A (8KHz/16KHz).
- PWM frequency adjustment: PWM frequency can be adjusted in four levels: 500Hz, 2KHz, 8KHz and 16KHz. This feature allows to reduce the noise of the output current.
- Safety protection: Equipped with overheating, overload and short-circuit protection.

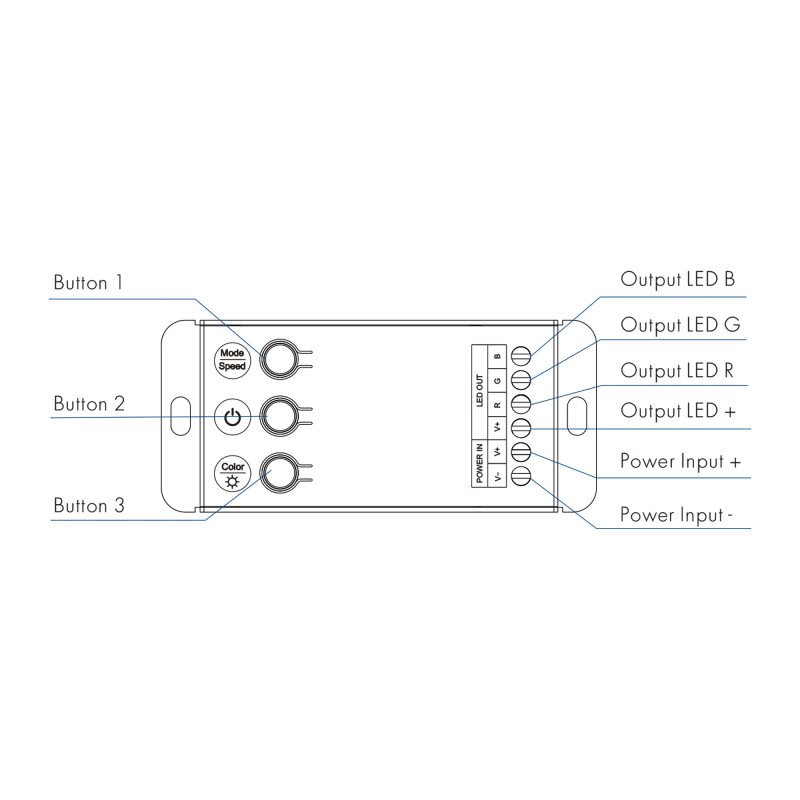

Control via built-in buttons
The 3-channel RGB controller allows versatile lighting management through built-in buttons. This device includes three functional buttons:
- On/Off: Allows the lights to be turned on or off.
- Speed:
- Short press: switches between 10 dynamic modes.
- Long press (2 seconds): Adjusts the speed in 10 levels.
- Color:
- Short press: Switches between 24 static RGB colors.
- Long press (1-6 seconds): Continuously adjusts brightness in 256 levels.
Technical specifications:
✔ Input voltage: 12-24V DC.
Output current: 3x6A (500Hz/2KHz) - 3x5A (8KHz/16KHz)
✔ Transmitting frequency: 2.4GHz
✔ Control Distance: 30m
✔ PWM Frequencies: 500Hz/2KHz/8KHz/16KHz/16KHz
✔ Operating Temperature: -30°C to +55°C

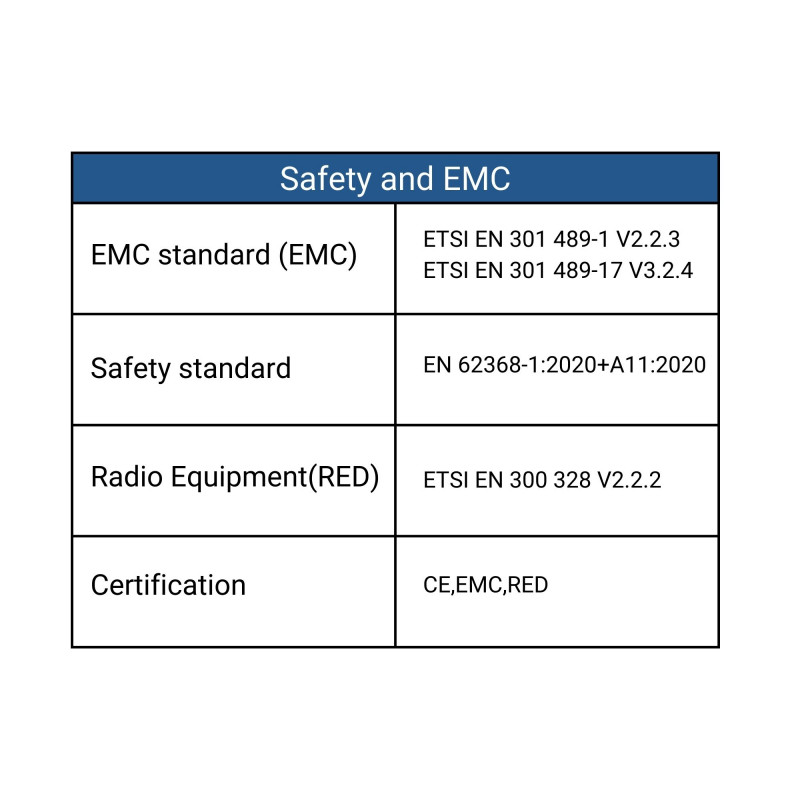

ROHS
