Mini RGB + CCT controller - WiFi + Bluetooth - 5-24V DC - 3.5A
Mini RGB + CCT controller - WiFi + Bluetooth - 5-24V DC - 3.5A
Mini RGB + CCT controller - WiFi + Bluetooth - 5-24V DC - 3.5A

Mini RGB + CCT controller - WiFi + Bluetooth - 5-24V DC - 3.5A

SKU:CTL-AAW-RGBCCT-34
Has superado el límite de unidades
In stock 174 units
Data sheet

Compact smart RGB + CCT controller for 5-24V DC LED strips.

Through WiFi or Bluetooth it allows full control from your mobile device via Smart Life or Tuya App.

In addition, it's compatible with virtual assistants such as Amazon Alexa and Google Assistant.

It provides a comprehensive range of options to customize the lighting of RGB + CCT LED strips, allowing you to choose the tone of white light or the desired RGB color from millions of options, along with their possible combinations.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

This controller enables innovative and intuitive lighting management from your cell phone, via WiFi or Bluetooth connection.

It offers a full range of options to customize the lighting of RGB + CCT LED strips, being able to select the white light shade or the desired RGB color from millions of options, and their possible combinations.

From static color to dynamic effects such as dimming, flickering and gradual change, it offers a full range of options to customize your lighting experience.

Compatible with Smart Life apps, Tuya App and voice commands such as Amazon Alexa and Google Assistant.

Its compact design ensures easy integration into any space, without compromising power or functionality.

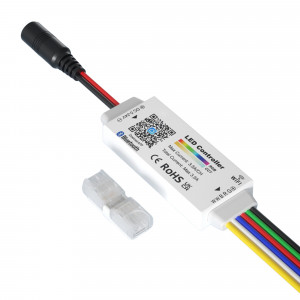

The controller features a female input jack and the two output cables ready to make the corresponding connections. It includes two quick connectors to LED strip for easy connection.

Product features:

  • Output voltage: 5-24V DC
  • Max. current: 3.5A
  • Max. power: 5V-17.5W / 12V-42W / 24V-84W
  • Output channels: 5
  • Color control: RGB + CCT
  • Brightness adjustment range: 10%~100%
  • Bluetooth 5.2
  • WIFI 2.4GHz
  • PWM frequency 20KHz
  • Overload and short-circuit protection

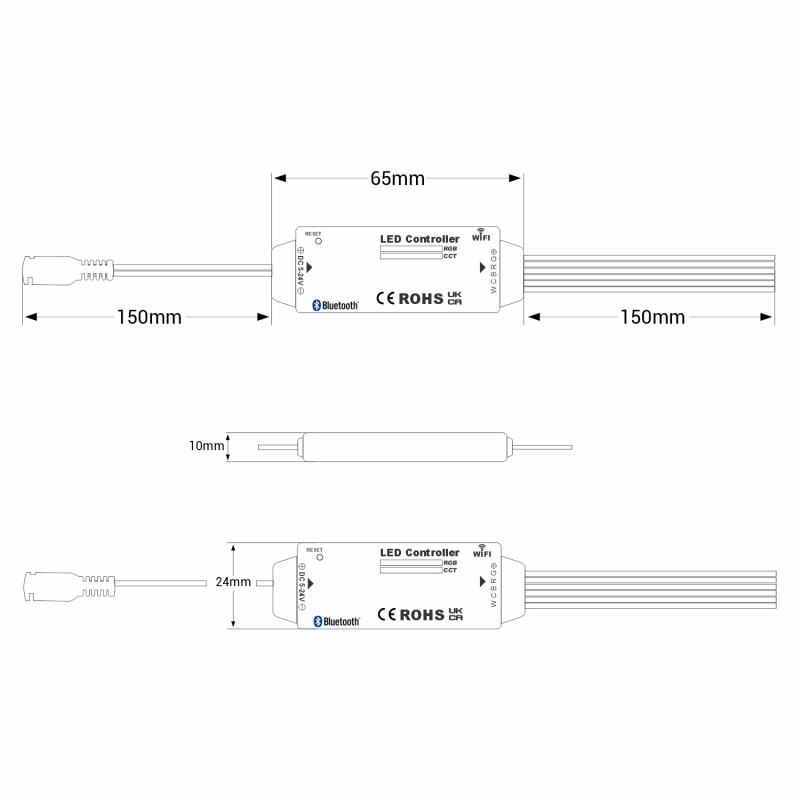

  • Cable length: 150mm
  • Cable gauge: 0.52mm 2 / 20AWG
  • Indoor use: IP20

Nominal Voltage (V)
5-24V
IP
IP20
Dimmable
Yes
Colour control
RGB+CCT
Connectivity
Bluetooth
Wifi
Number of channels
5
Material
Polycarbonate
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
3,5
