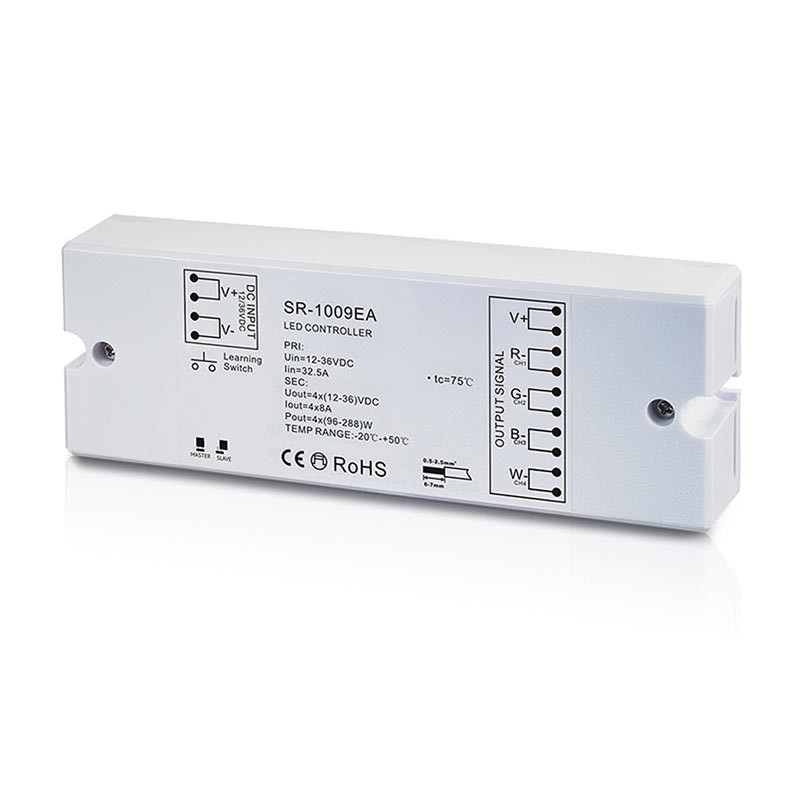

RGB/RGBW Dimmer PMW Controller - 12-36V DC (4 channels 8A/channel) - SUNRICHER RF Receiver - Perfect RF

RGB/RGBW Dimmer PMW Controller - 12-36V DC (4 channels 8A/channel) - SUNRICHER RF Receiver - Perfect RF

SKU:SR-1009EA
Has superado el límite de unidades
In stock 57 units
Data sheet

Dimmable RGB/RGBW controller for LED strips, designed with durable materials and excellent insulation to make it safe, reliable and durable.

It has 4 channels with a maximum of 8A each and supports a voltage range of 12-36V DC.

It incorporates PWM control technology and is compatible with a wide variety of remote controls, allowing it to control LED strips or single color, RGB and RGBW LED luminaires.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The RGB / RGBW Dimmer Controller offers full compatibility with a wide variety of single-color, two-color or RGB/RGBW RF remote controls.

For RGB and RGBW LED strip lighting, the controller has different functions, on the one hand, it allows us to regulate the brightness for each color channel (R, G, B, W) and on the other hand, it allows us to choose any tone in the RGB spectrum, so you can generate an infinity of incredible colors and shades.

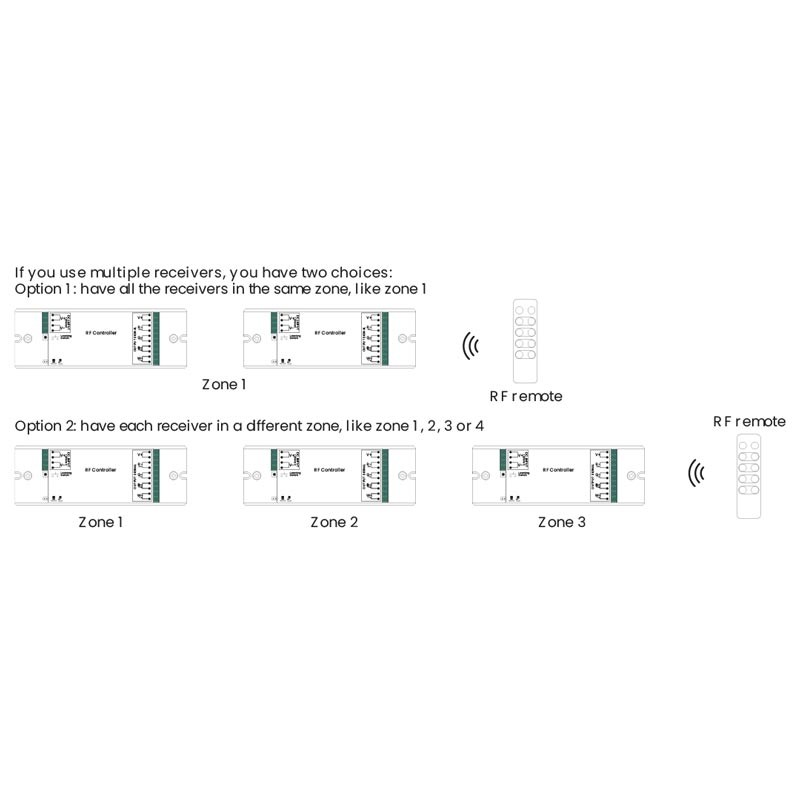

It has the possibility to illuminate by zones, independently or synchronized, with a variable number of receivers.

Each receiver can be controlled by a maximum of 8 remote controls.

Applications:

It allows to control LED strip lighting in commercial premises such as bars, restaurants, hotels, discotheques or shop windows. It is also suitable for home use and can be controlled by Android or iOS apps while working with a Wifi-RF converter.

Main product features:

  • Voltage: 12-36V DC
  • Channels: 4
  • Current control: Max 8A/Channel
  • Total Output Max: 32A
  • Maximum compatibility with single-color, two-color, RGB and RGBW remote controls
  • Adjustable brightness for each color
  • WiFi control via Android and iOS apps
  • Dimensions: 170 x 59 x 29mm

Nominal Voltage (V)
12-36V DC
Power (W)
384-1152
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
170x59x29mm
Sensor
Yes
Colour control
RGBW
Number of channels
4
Material
Plastic
Temperature range
-20℃~+50℃
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
8A / canal
SUNRICHER
