Name: RGBW controller for LED strips with RF touch panel - 5-24V/DC
Brand: Barcelona LED
SKU: RF86-04
Price: 18.95 EUR
Availability: OutOfStock

SKU:RF86-04

€18.95 Tax included

Out of stock

Data sheet

The RGBW controller for LED strips allows to control the lighting of LED strips by means of a soft and highly sensitive touch panel.

In addition, it saves user settings and can be easily installed on the wall using two adhesive strips (included) or two screws (not included).

Compatible with most RGBW LED strips on the market. Maximum range: 15 m.

Ideal for creating environments with customized lighting and convenient control.

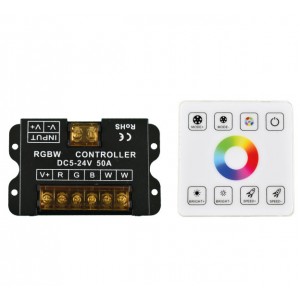

** Includes a controller, a touch panel, 2 adhesive strips and a manual**.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

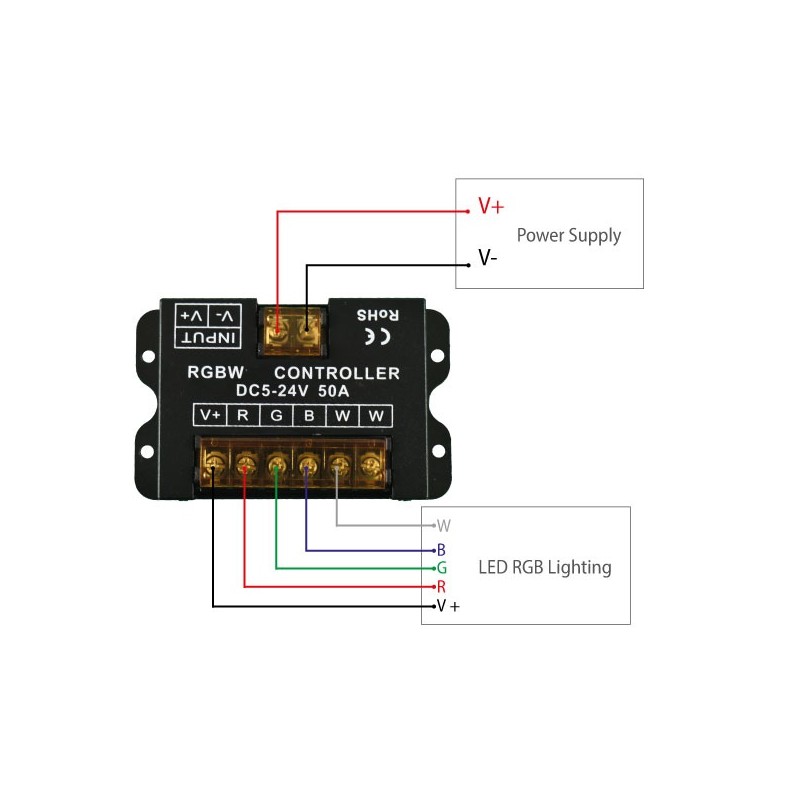

This RGBW LED strip controller is compatible with most RGBW LED light fixtures from 5V to 24V with a maximum current of 50A.

The wall mounted touch panel features a stable capacitive touch screen with high quality LED dimming. It allows a gradual control of brightness and color. It offers the possibility to set dynamic modes of RGBW LED strips, including fade, fade + flash, strobe and flash. Settings are retained when the lights are turned off.

By using RF, it works wirelessly, so it does not require changing any existing electrical circuits. The control distance is 15 meters.

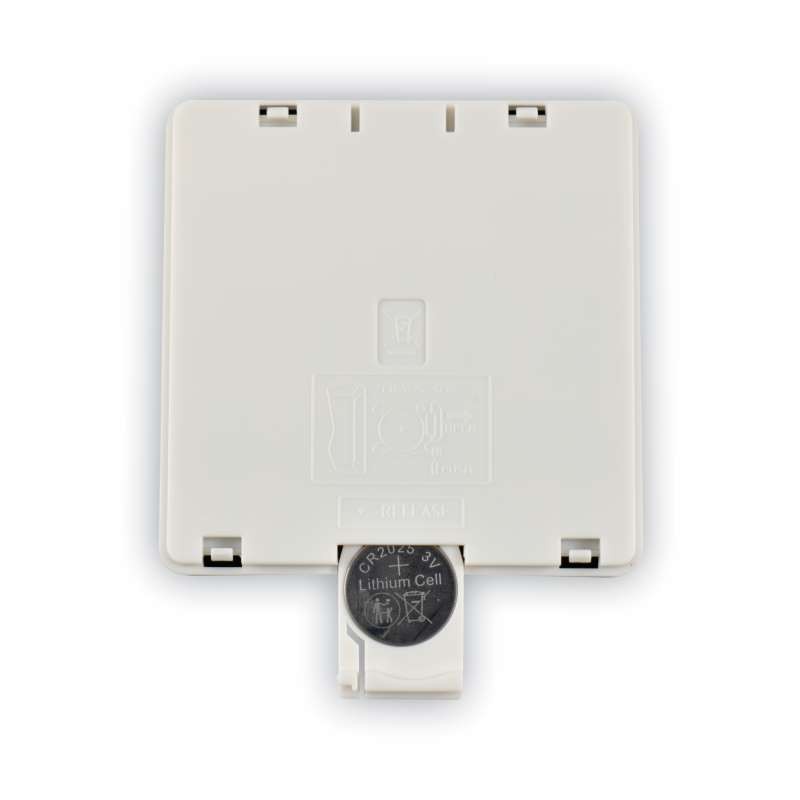

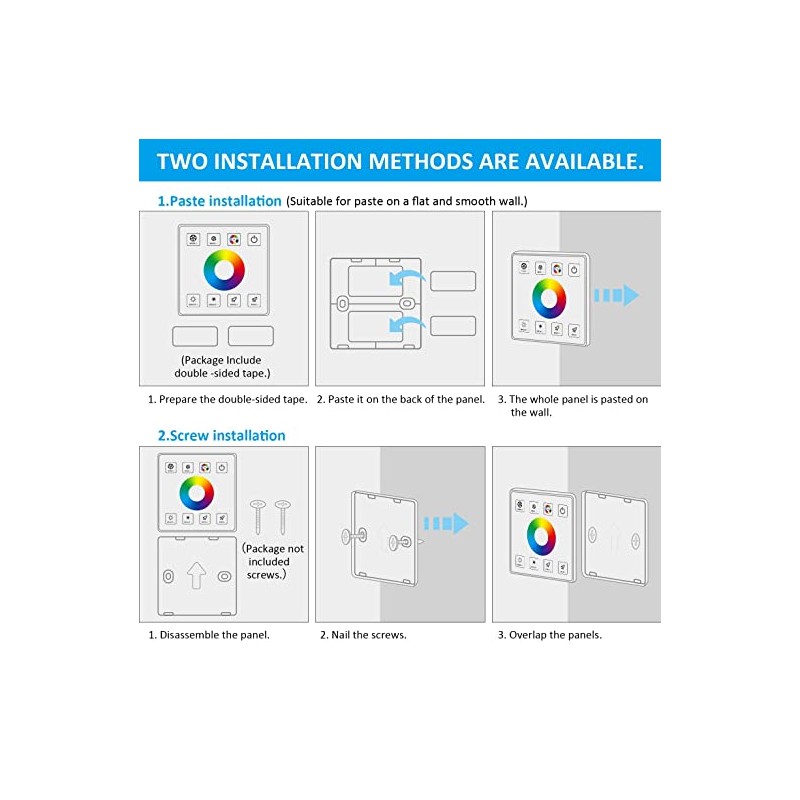

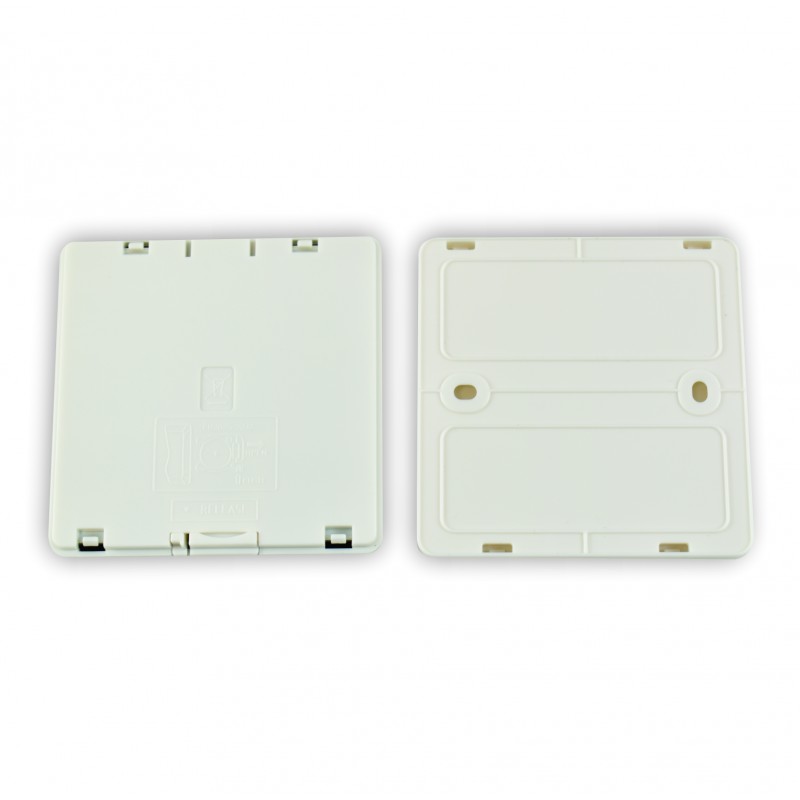

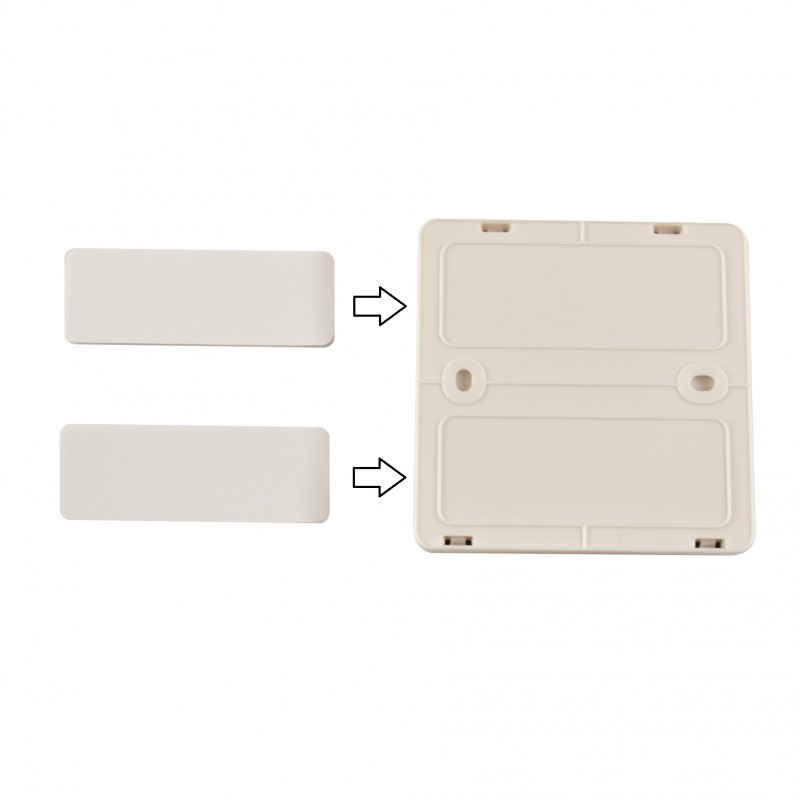

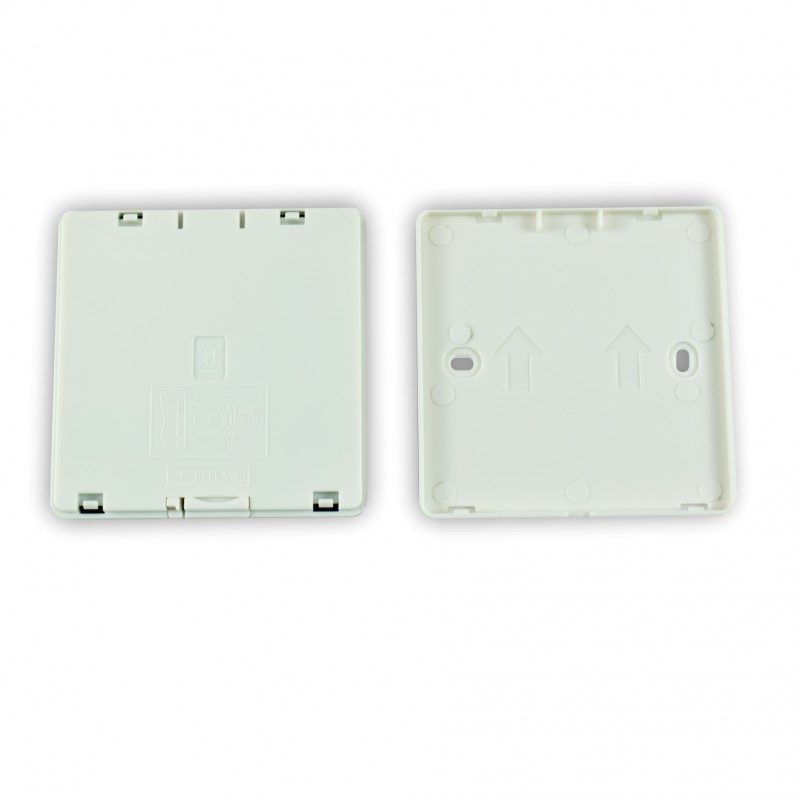

The panel also offers two easy ways for wall installation: using the double-sided adhesive tapes (included), or using two screws (not included). It is powered by a 3V CR2025 battery (included).

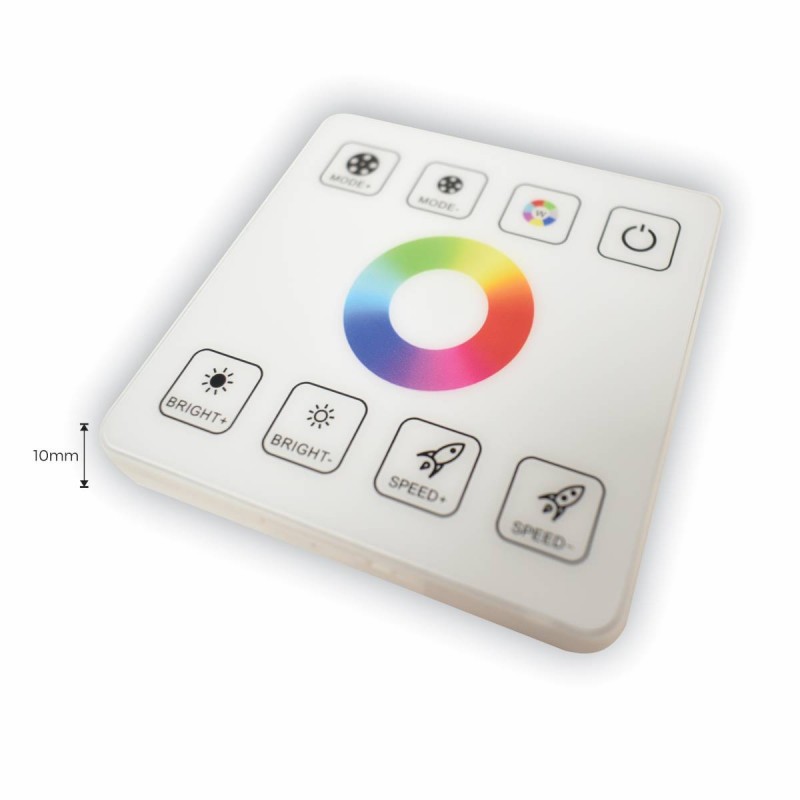

With its ultra-slim and classic design, this controller blends into any environment and allows for complete and simple lighting customization.

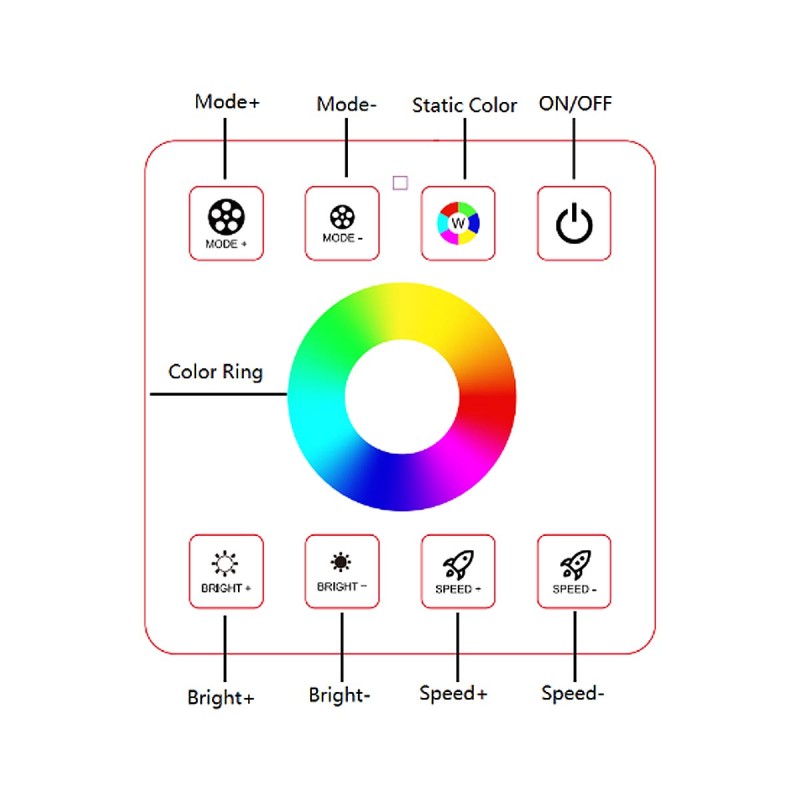

Note:

- Brightness and speed can be adjusted in each mode.

- Static colors: red, green, blue, yellow, purple, cyan. 31 levels of color temperature.

- BRIGHTNESS: Brightness +/- Key (10 levels)

- SPEED: Speed +/- key (10 levels)

Code for strip matching:

- Long press the MODE+ key for 5 seconds after the controller is turned on and the light bar will flash slowly for 3 times.

Code to clear code pairing:

- Long press and hold the MODE- key for 5 seconds after the remote is turned on and the light bar will flash rapidly for 3 times.
