RGBW dimmable RF 12-24V-DC recessed touch mechanism for 4 zone LED lighting - SUNRICHER Perfect RF
SKU:SR-2820-DC
€67.45
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
RGBW recessed touch mechanism - 12/24VDC - RF transmission - 4 zones

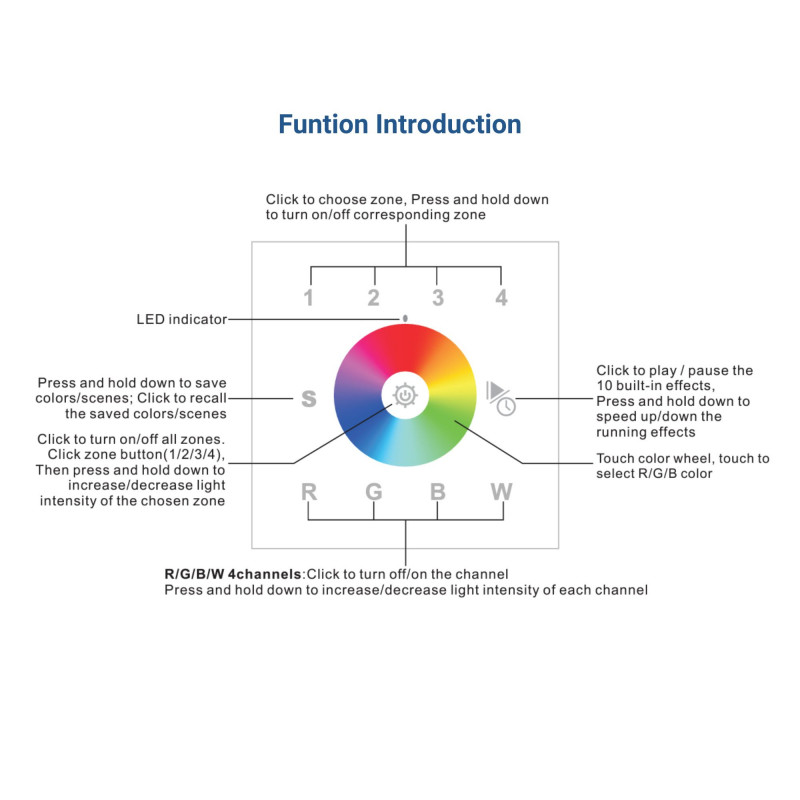

This controller features a great design with a sleek appearance and an easy to use interface for any type of user.
Each controller has the ability to dim up to four zones independently or synchronize them and you can place as many receivers as you want in each zone to be illuminated.
The RGBW TOUCH RGBW TOUCH MECHANISM comes with 10 sets of dynamic presets that can be easily paused and resumed during use.
You can also save your own settings separately for up to 4 scenes per zone. With this type of mechanism it is possible to dim each of the four channels individually and generate millions of colors in the RGBW color spectrum.
- User-friendly interface and easy operation.
- Operation return function (if the product is switched off or disconnected, the last used configuration is saved).
- Control of up to 4 zones. Each zone can be configured with an infinite number of receivers.
- Each receiver can be controlled by up to 8 different remotes.
- Set of 3 scenes for each zone. This allows you to create programs with different functions and save them.

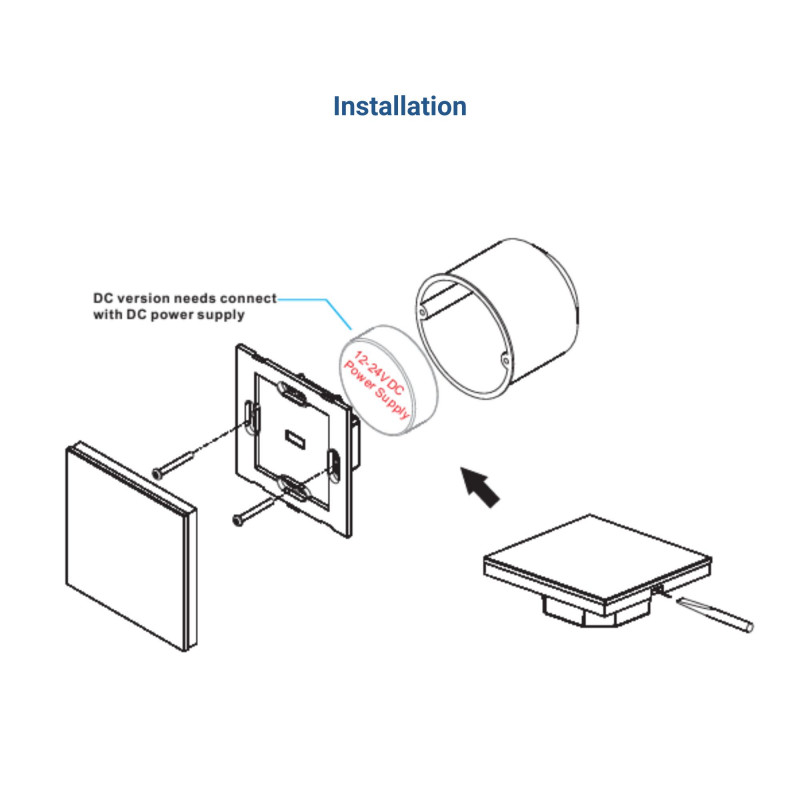

- It is necessary to connect the controller to a 12vdc or 24vdc power supply.
2018-07-09
Nominal Voltage (V)
12-24V
Lifetime (h)
35000
IP
IP20
Dimensions (mm) Lxlxh
86x86x13
Detection range (m)
25000
Colour control
RGBW
Connectivity
Radiofrequency
Material
Plastic
Use Outdoor
No
Temperature range
0 ~ +40°C
Frequency of use
Intensive
Energy efficiency class
F
Certificates
CE
ROHS
ROHS
Warranty
5 years
Questions
| P: Question: | I have lost the manual, could you send it to me in PDF, it is urgent thanks |
|---|
| R: Answer: | Manual web externa Sunricher |
|---|
| P: Question: | The wall controller has a controller in the ceiling? how many meters maximum per channel and if it is necessary amplifier for when they go more meters than normal. Mounting scheme, I have to mount 18 meters of rgbw led strip. |
|---|
| R: Answer: | This RGB wall panel is powered by a 12vdc source and is a remote control to operate the RGBW strip controller, ref. D1009FA. by radio frequency. It has an RF range of about 20m. The 24v strips can not do more than 10mts linear, you will need amplifier between strips depending on the installation. |
|---|
| P: Question: |
Good afternoon, I want to use a dimmer said on the wall, rgb type, but I want the same regulator to serve for two lateral LED strips on the wall and for two LED spotlights on the ceiling. Is it possible with this dimmer? Thank you. |
|---|
| R: Answer: | This rgb dimmer can be synchronized with various D1009FA controllers for 12v and 24v strips, but does not control GU10 RGB bulbs. The B3-RGBW model can be used for GU10 strips and bulbs. |
|---|
