Name: Single Color/CCT/RGB Controller 12-24V DC -3 channels -4A/ch
Brand: Skydance
SKU: SK-V3
Price: 19.49 EUR
Availability: InStock

SKU:SK-V3

€19.49 Tax included

In stock 50 unidades

Data sheet

3-channel Single Color / CCT / RGB controller for 12-24V LED luminaires.

It offers smooth dimming from 0 to 100% flicker-free and is compatible with RF 2.4GHz Skydance single color, CCT, RGB remote controls.

In RGB mode it features 10 preset dynamic modes.

With auto-transmit and auto-sync functions that allow efficient and synchronized control.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

3-Channel Single Color/ CCT/ RGB Controller: Maximum Flexibility and Control

This controller is a versatile solution for managing LED luminaires in domestic and commercial environments.

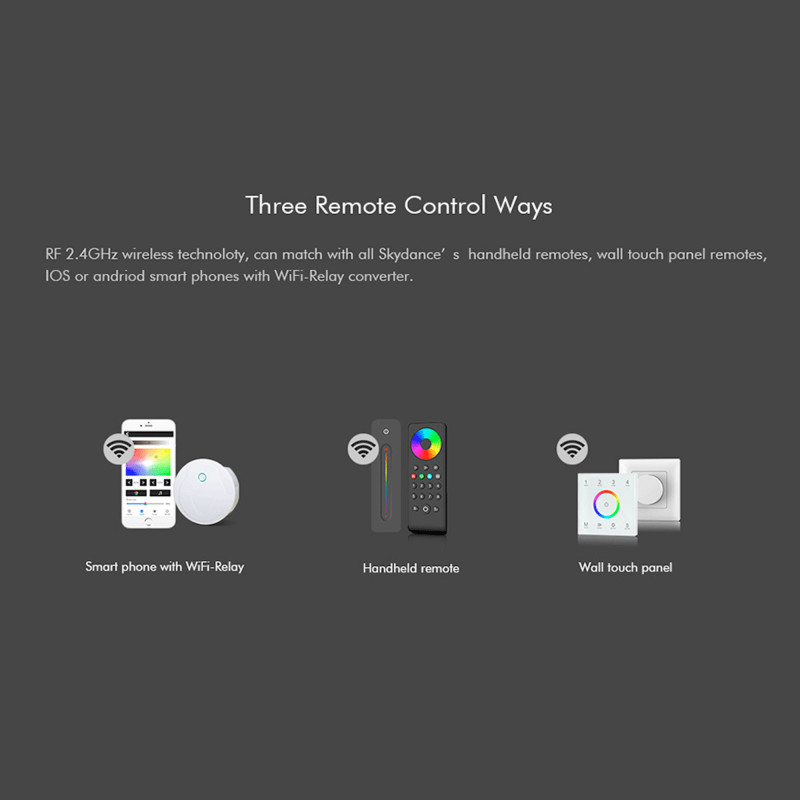

Compatibility: Compatible with Skydance single color, CCT, RGB RF 2.4GHz remote controls.
Dynamic modes: 10 preset modes in RGB mode, including jumps and smooth transitions.
Flicker-free attenuation: Offers 0-100% attenuation in 4096 levels.

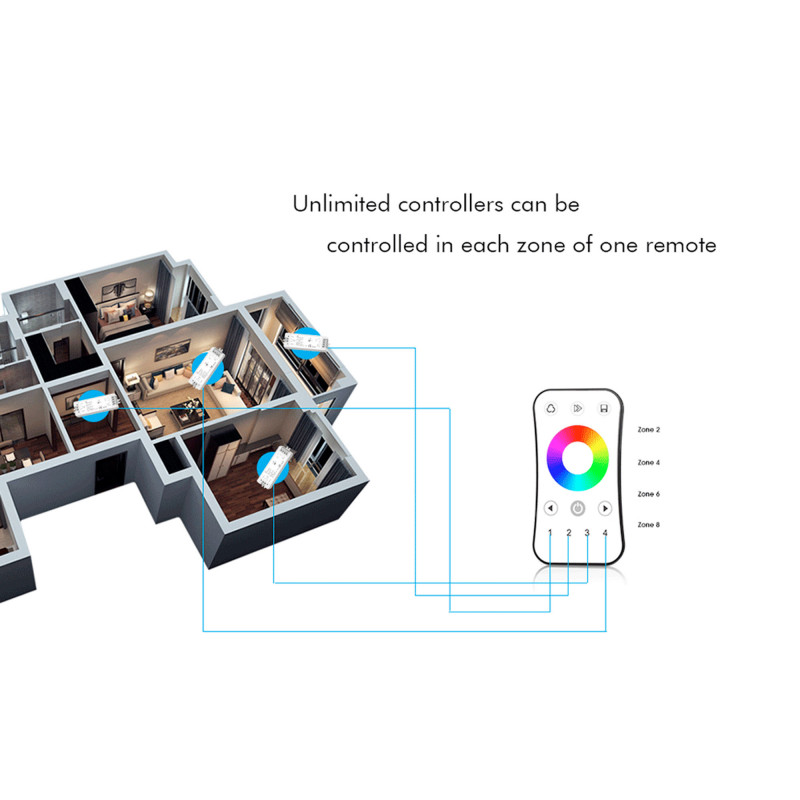

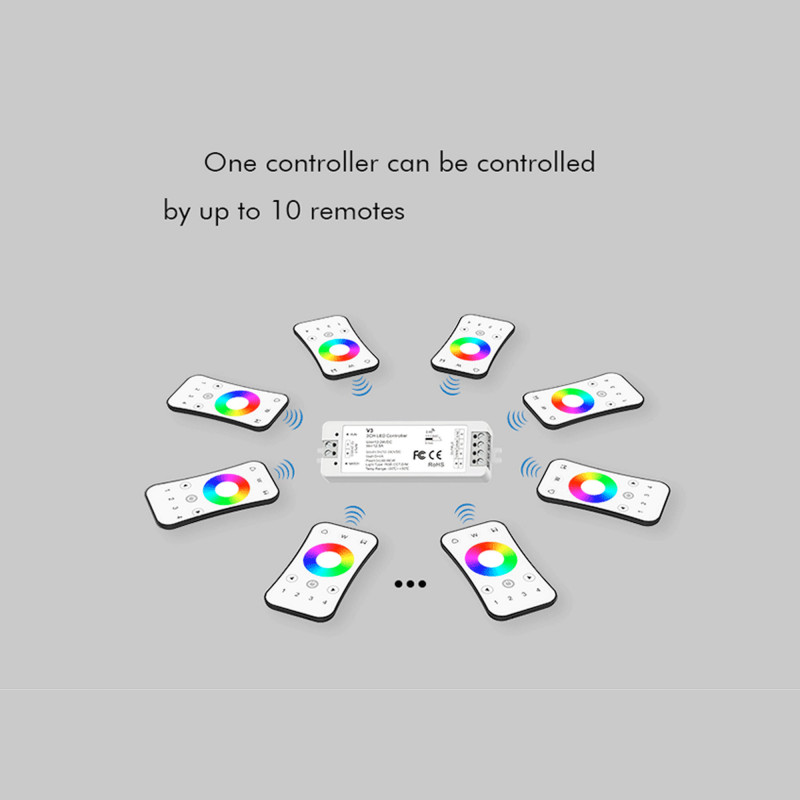

Multiple control: A single controller can accept up to 10 remote controllers, and one controller can control an unlimited number of controllers.
High load capacity: Supports up to 4A per channel.
Safety protection: Equipped with overheating, overload and short circuit protection.

Innovative functions:

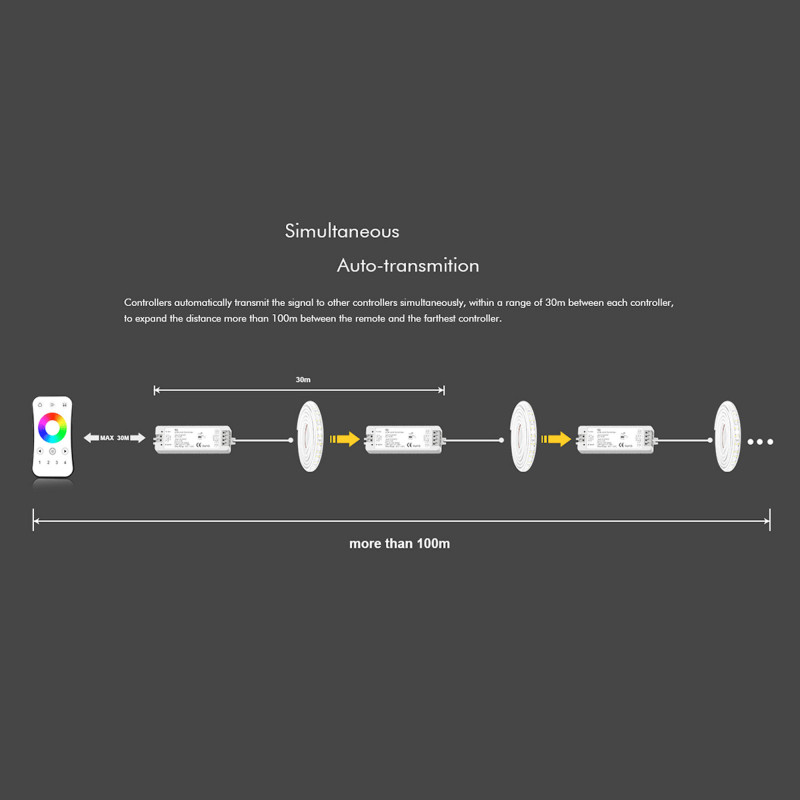

Auto-transmission: Extends the remote control range up to 30 meters.

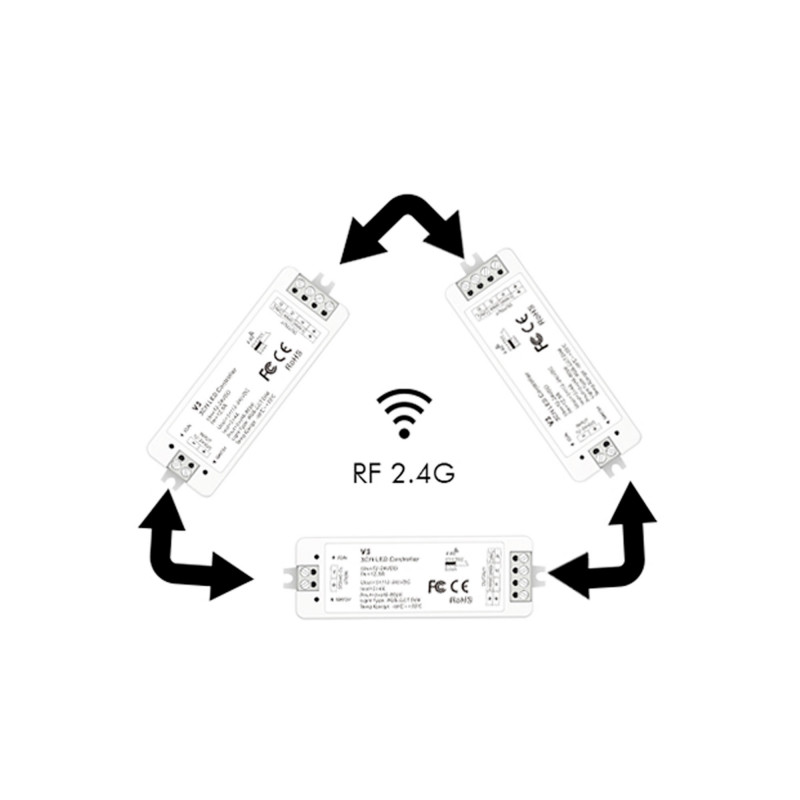

Auto-synchronization: Synchronizes multiple receivers within 30 meters for uniform illumination.

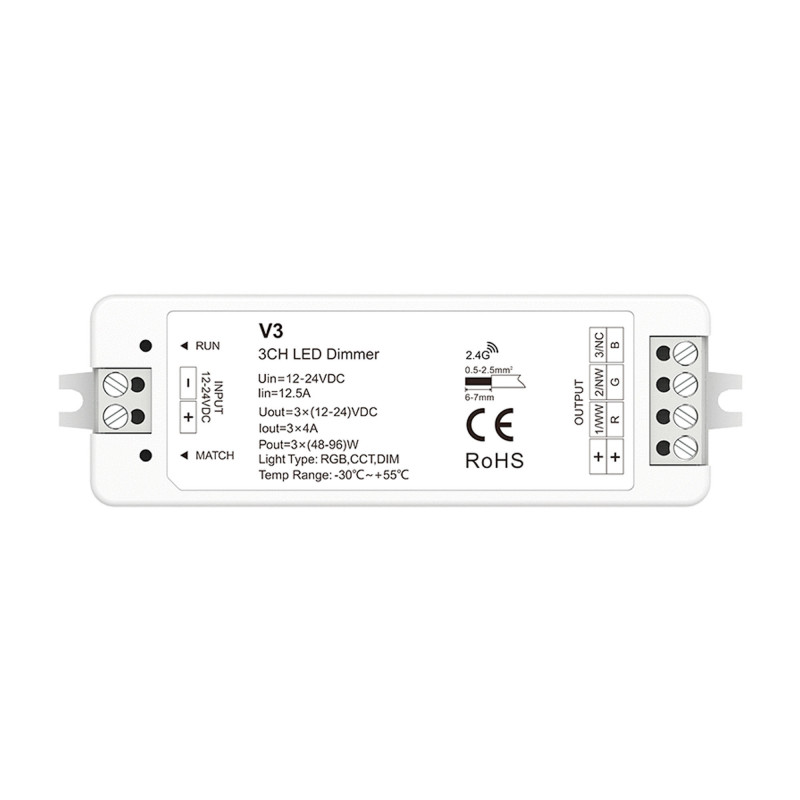

Technical specifications:

✔ Input voltage: 12-24V DC.
✔ Output current: 3 x(4A/channel max).
✔ Transmission frequency: 2.4GHz.
✔ Control Distance: 30m
✔ Operating Temperature: -30°C to +55°C
