Name: Single Color/CCT/RGB Controller - 12-36V DC - 3 channels
Brand: Skydance
SKU: SK-V3-X
Price: 32.49 EUR
Availability: InStock

SKU:SK-V3-X

€32.49 Tax included

In stock 50 unidades

Data sheet

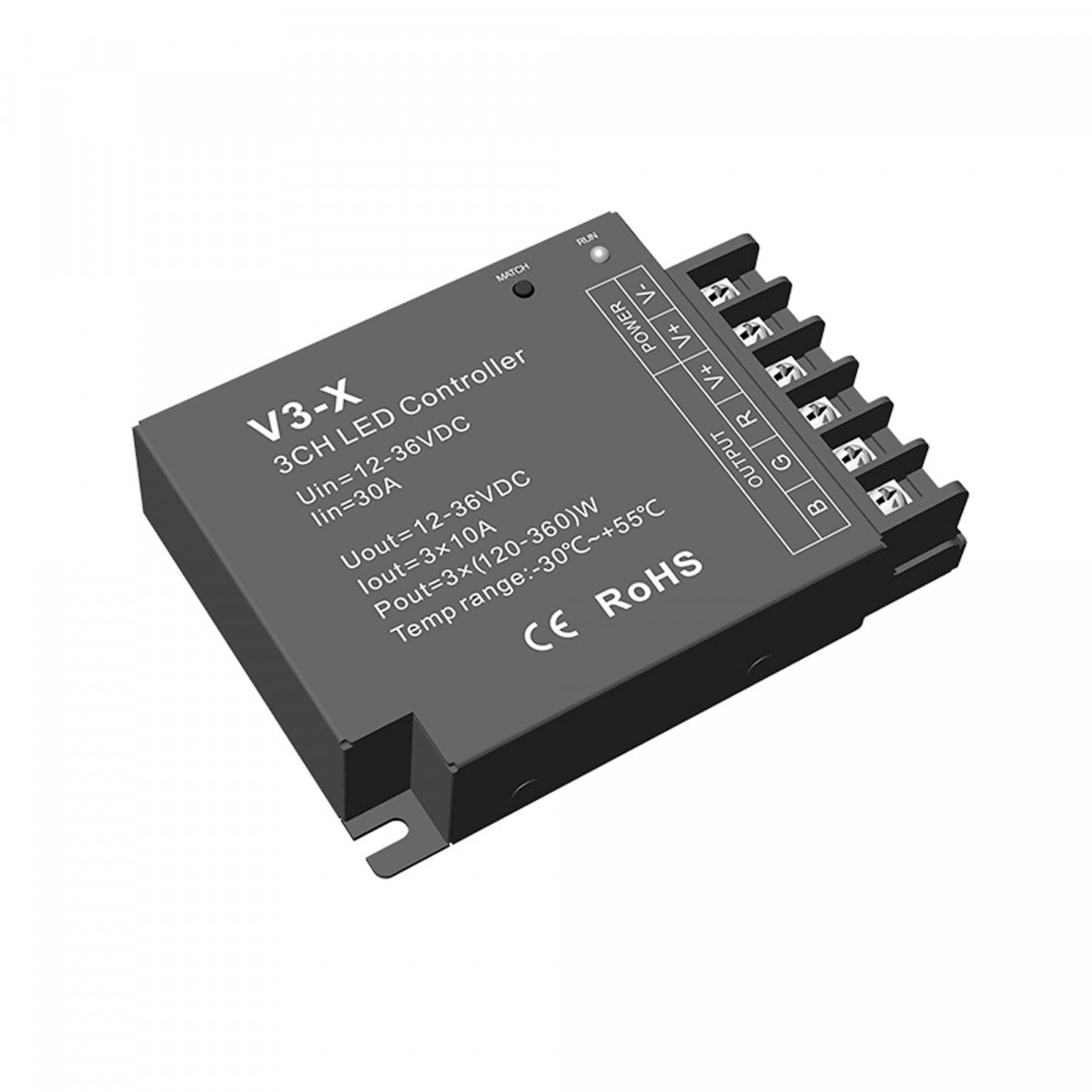

3-channel Single Color / CCT / RGB controller for 12-36V LED luminaires.

It offers flicker-free smooth dimming from 0 to 100% and is compatible with single color, CCT, RGB RF 2.4GHz Skydance remote controls.

In RGB mode it features 10 preset dynamic modes.

With auto-transmit and auto-sync functions that allow efficient and synchronized control.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

3-Channel Single Color / CCT / RGB Controller: Maximum Flexibility and Control

This controller is a versatile solution for managing LED luminaires in domestic and commercial environments.

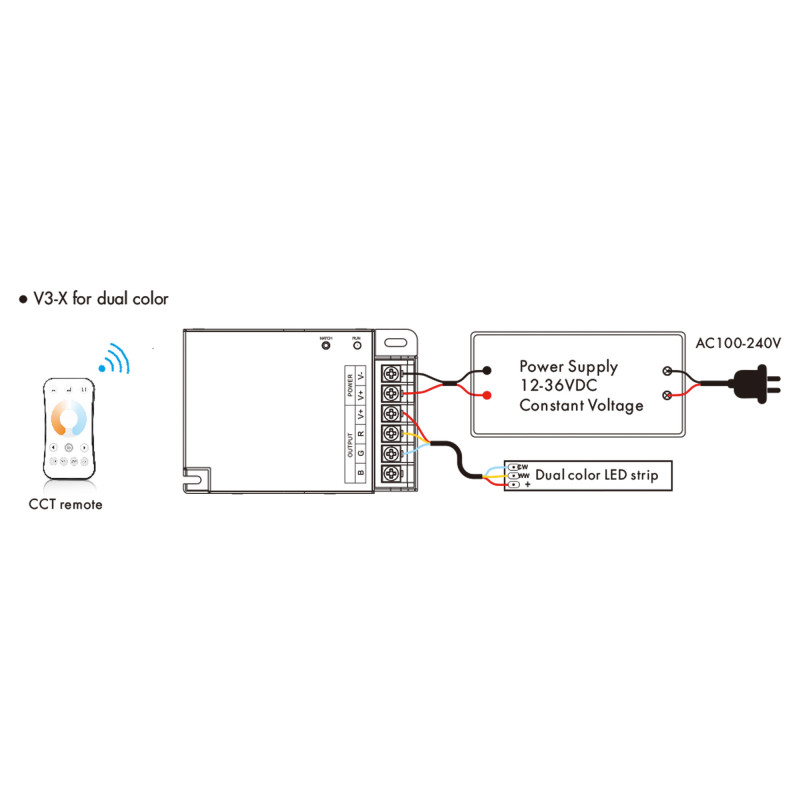

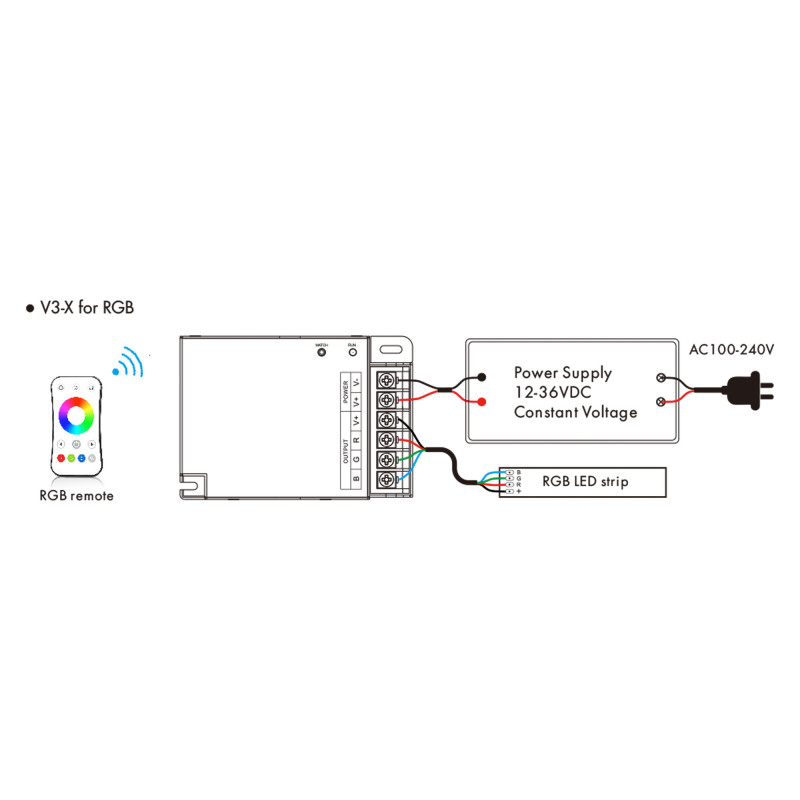

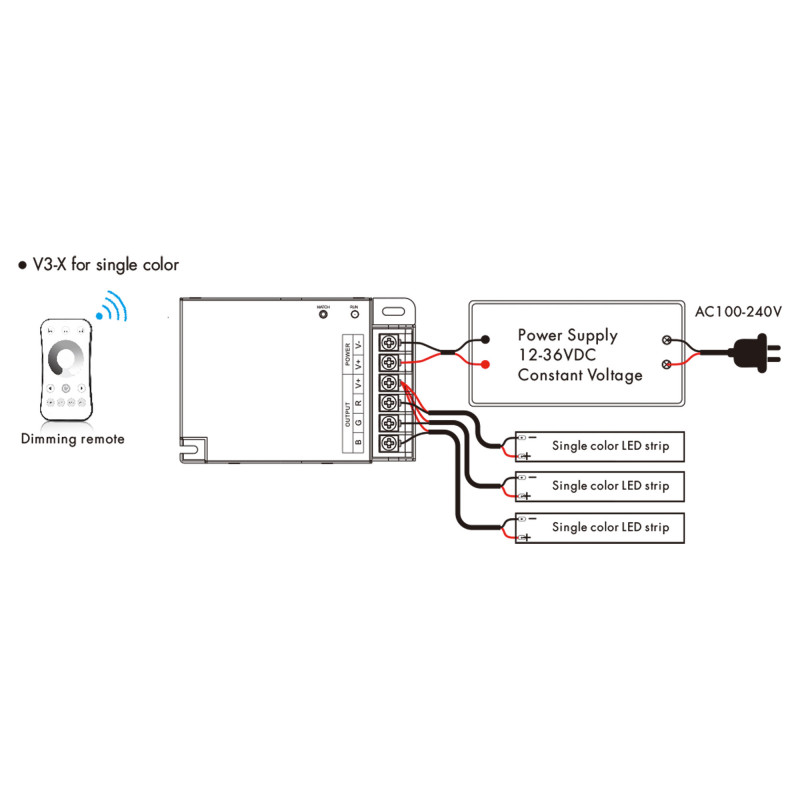

Compatibility: Compatible with single color, CCT, RGB RF 2.4GHz Skydance remote controls.

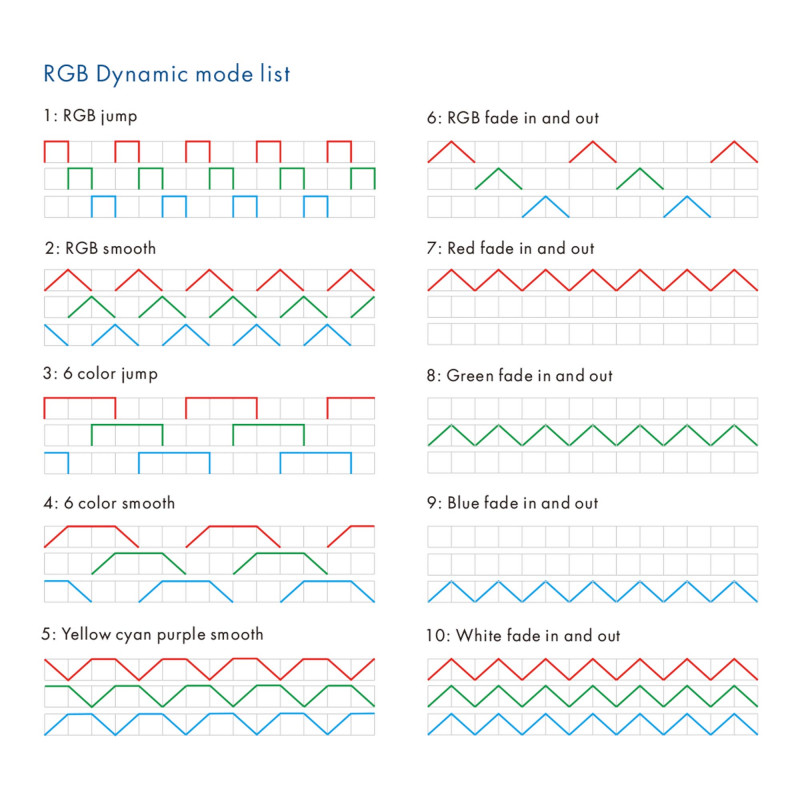

Dynamic modes: 10 preset modes in RGB mode, including jumps and smooth transitions.
Flicker-free attenuation: Offers 0-100% attenuation in 4096 levels.
Multiple control: A single controller can accept up to 10 remote controllers, and one controller can control an unlimited number of controllers.
High load capacity: Supports up to 10A per channel.
Safety protection: Equipped with overheating, overload and short circuit protection.

Innovative functions:

Auto-transmission: Extends the remote control range up to 30 meters.
Auto-synchronization: Synchronizes multiple receivers within 30 meters for uniform illumination.

Technical specifications:

✔ Input voltage: 12-36V DC.
✔ Output current: 3 x (10A/channel max).
✔ Transmission frequency: 2.4GHz.
✔ Control Distance: 30m
✔ Operating Temperature: -30°C to +55°C
