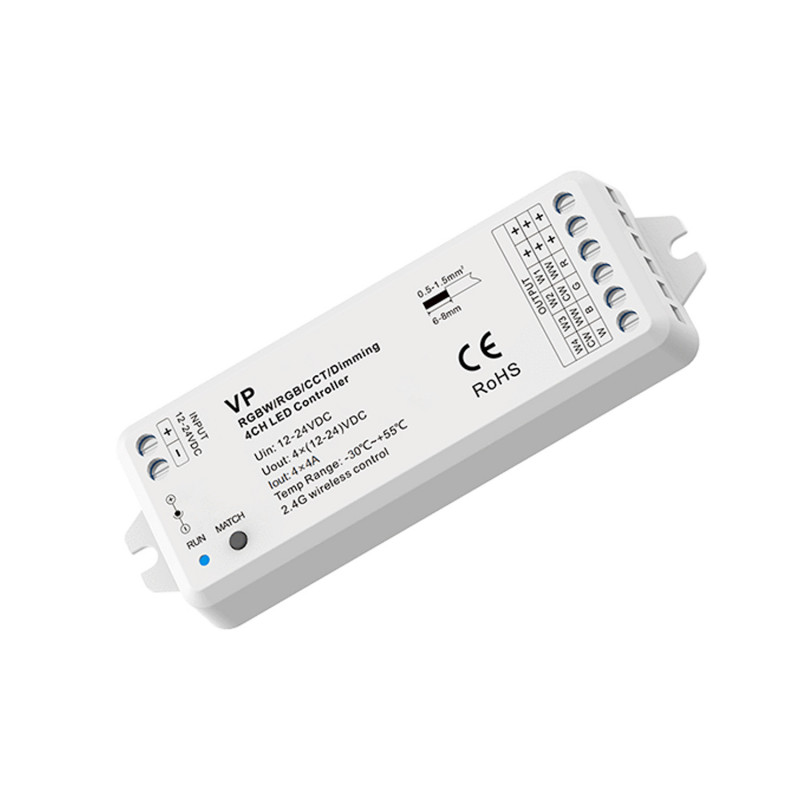

Single Color/ CCT/ RGB/ RGBW Controller - 12-24V DC - 4 channels - 4A/channel - RF 2.4GHz - Skydance

4-Channel Single Color / CCT/ RGB/ RGBW Controller: Maximum Flexibility and Control

This controller is a versatile solution for managing LED luminaires in domestic and commercial environments.

• Compatibility: Compatible with Skydance single color, CCT, RGB and RGBW RF 2.4G remote controls.


• Dynamic modes: 10 preset modes in RGB and RGBW mode, including jumps and smooth transitions.


• Flicker-free dimming: Offers 0-100% dimming in 4096 levels.


• Remote control: Compatible with Skydance 2.4GHz RF remote controls. Adjust lighting from anywhere with handheld, wall or smartphone remotes (by adding a Wi-Fi gateway) .


• Multiple control: A single controller can accept up to 10 remotes, and one remote can control an unlimited number of controllers.


• High load capacity: Support up to 4A per channel.


• Safety protection: Equipped with overheating, overload and short-circuit protection.




Innovative functions:

• Auto-transmission: Extends the remote control range up to 30 meters.


• Auto-synchronization: Synchronizes multiple receivers within 30 meters for uniform illumination.


• Light on/off fade time: 3-second smooth transition on/off dimming time selection.

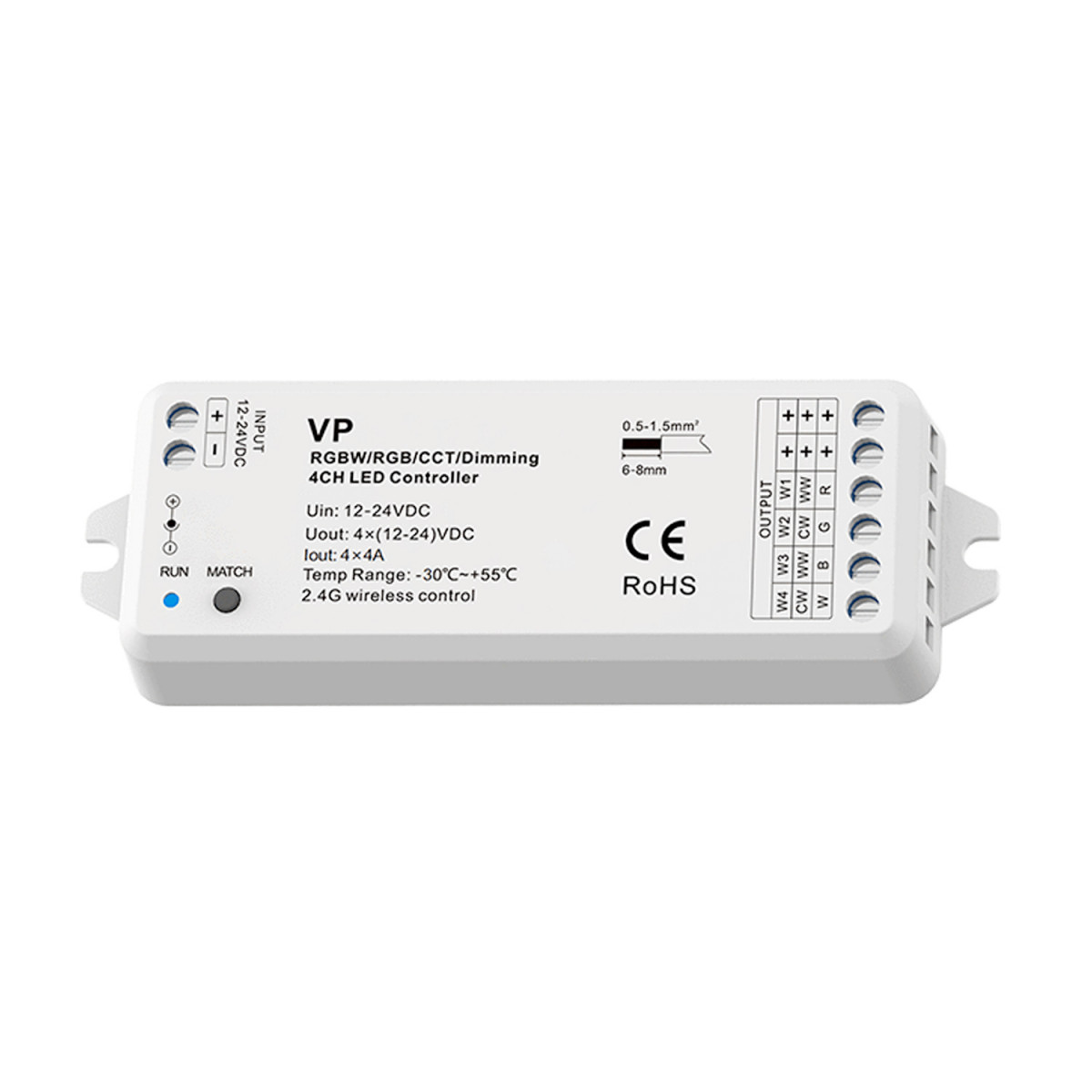

Technical specifications:

✔ Input voltage: 12-24V DC.
✔ Output current: 4x(4A Max).
✔ Transmission frequency: 2.4GHz.
✔ Control Distance: 30m
✔ Operating Temperature: -30°C to +55°C
