Single Color/ CCT/ RGB/ RGBW Controller - 12-48V DC - 4 channels - RF 2.4GHz - Skydance

4-Channel RGBW/ RGB/ CCT/ Single Color RGBW/ RGB/ CCT/ Single Color Controller: Complete and efficient control

This controller is a versatile solution for managing LED luminaires in domestic and commercial environments.

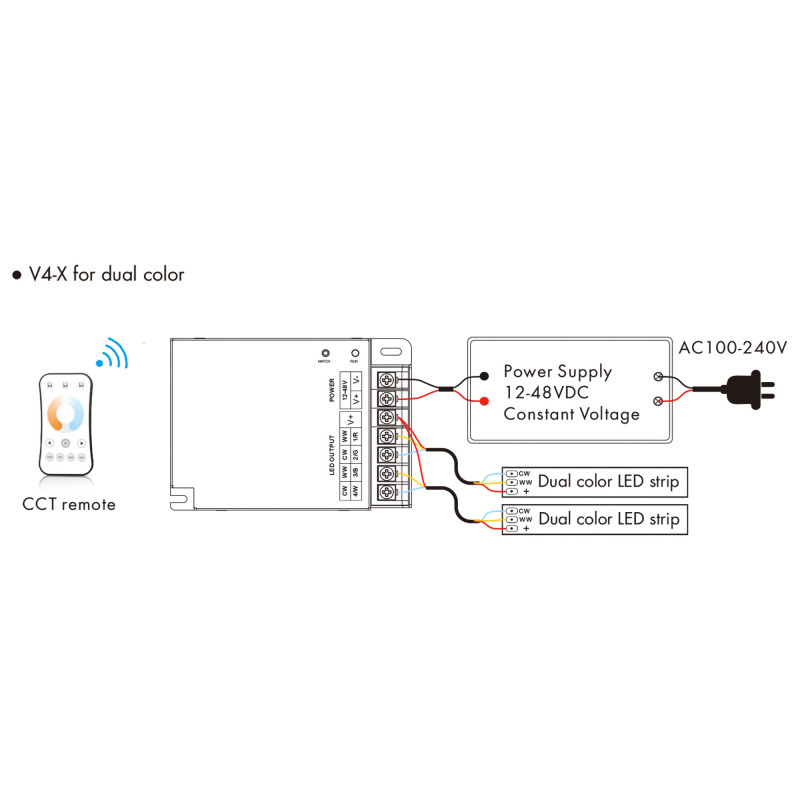

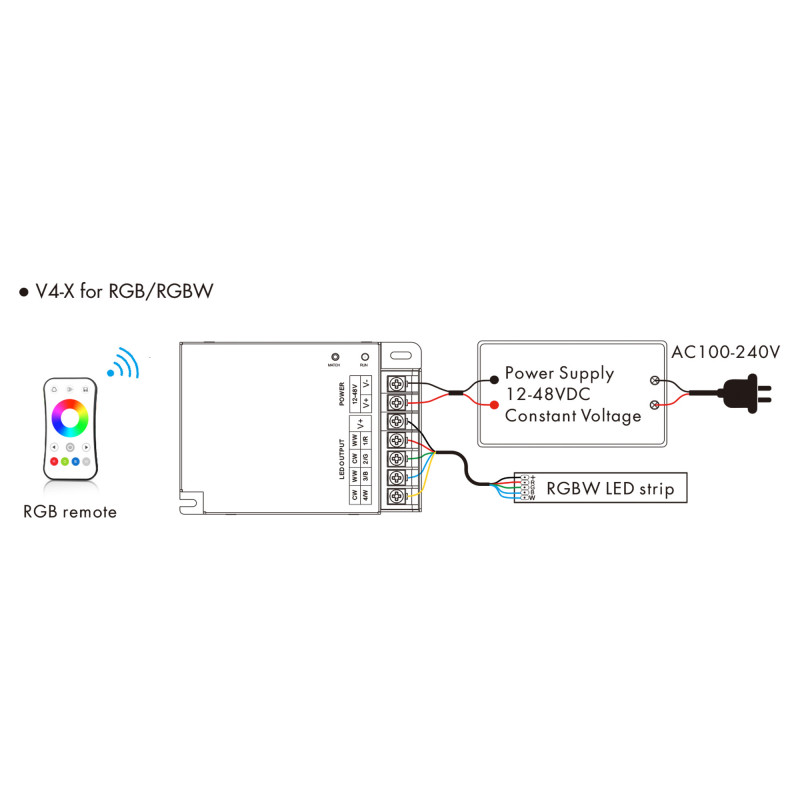

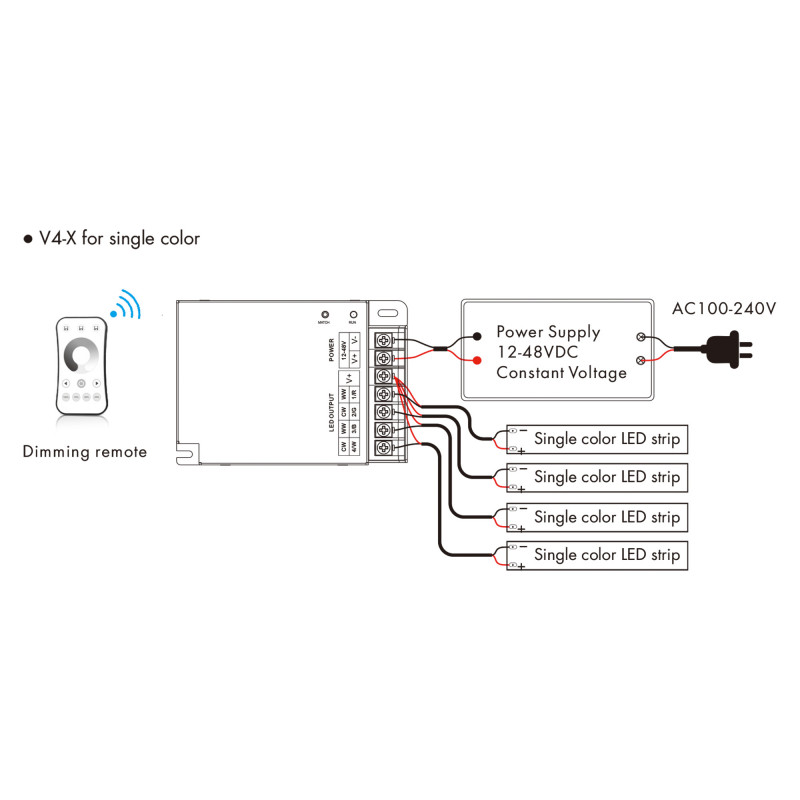

• Compatibility: Compatible with 12-48V RGBW, RGB, CCT and single color LED strips.


• Dynamic modes: 10 preset modes in RGB and RGBW mode, including jumps and smooth transitions.


• Flicker-free dimming: Offers 0-100% dimming in 4096 levels.

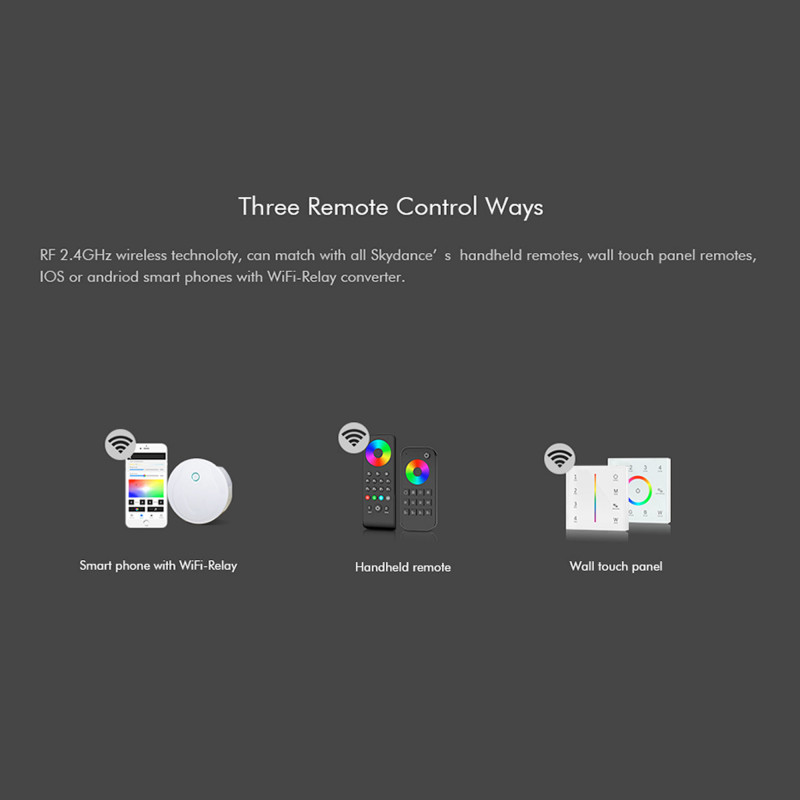

• Remote control: Compatible with RF 2.4GHz Skydance single color, CCT, RGB/RGBW remote controls. Adjust lighting from anywhere with handheld, wall or smartphone remotes (adding a Wi-Fi gateway) .

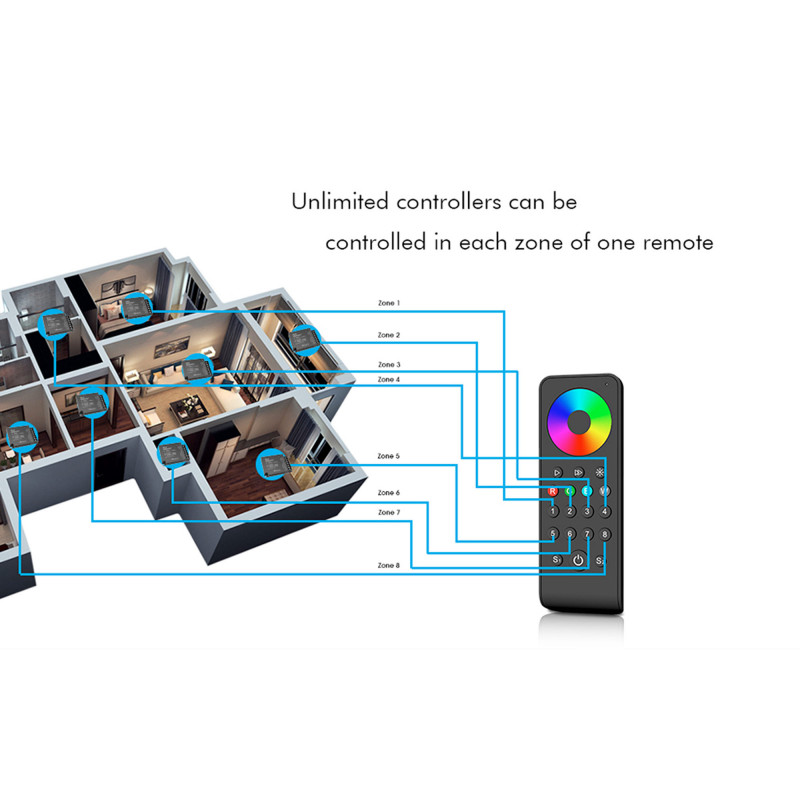

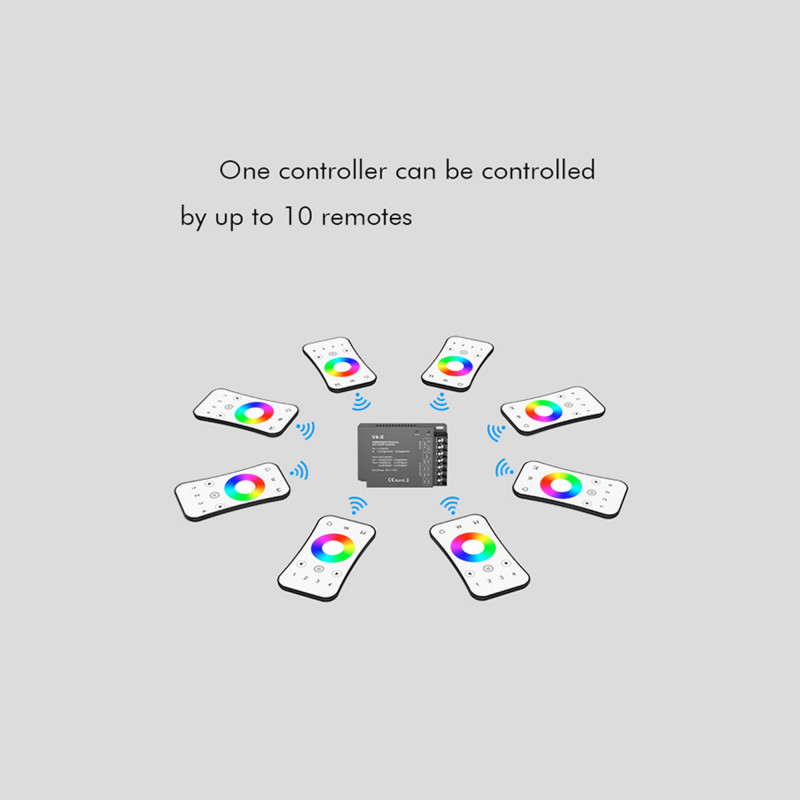

• Multiple control: one controller can accept up to 10 remotes, and one remote can control unlimited number of controllers.


• High load capacity: 4x8A (12/24V) - 4x5A (36/48V).


• Safety protection: equipped with overheating, overload and short circuit protection.




Innovative functions:

• Auto-transmission: Extends the remote control range up to 15 meters.

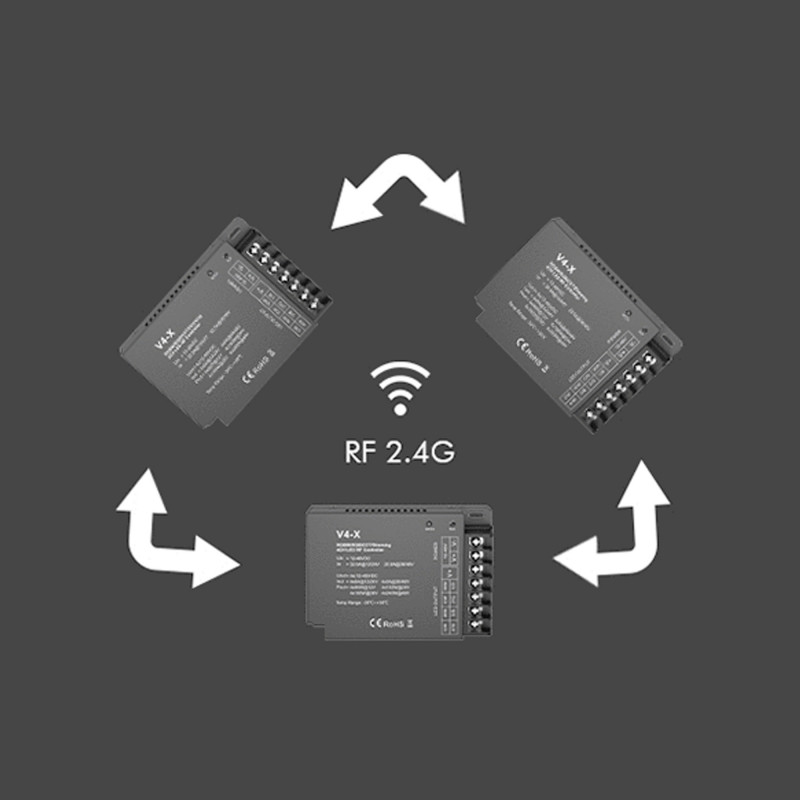

• Auto-synchronization: Synchronizes multiple receivers within 15 meters for uniform illumination.


• Light on/off fade time: 3-second smooth transition on/off dimming time selection.

Technical specifications:

✔ Input voltage: 12-48V DC.
✔ Output current: 4x8A (12/24V) - 4x5A (36/48V).
✔ Transmitting frequency: 2.4GHz
✔ Control Distance: 15m
✔ Operating Temperature: -30°C to +55°C
