WIFI RGB/RGBW pixel IC LED controller - 5-24V DC - 2048 pixels
SKU:SP108E
€31.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The WiFi LED IC controller allows you to create eye-catching effects in a very simple and intuitive way.

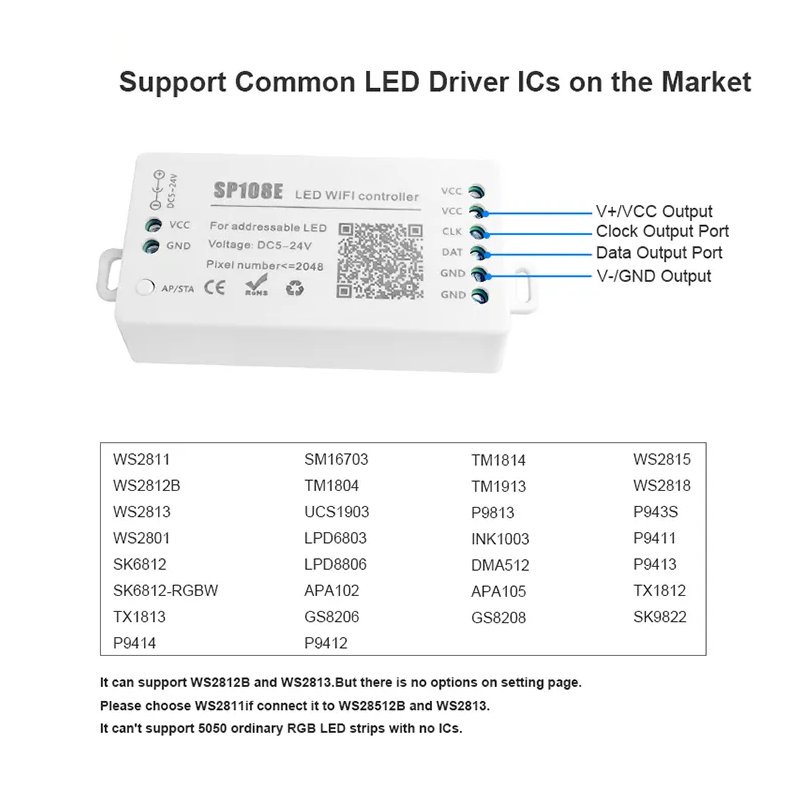

It is compatible with a wide variety of single and dual wire LED IC types: WS2811, WS2812B, WS2813, WS2815, WS2818, WS2801, SK6812, P943S, P9411, P9413, TX1812, TX1813, SK6812-RGBW, SM16703, ucst1903, tm1803, LPD8806, etc.
It has two access modes: routing mode (AP) allows the device to create its own wireless network and act as an access point, and LAN connection mode (STA), which allows the device to connect to an existing wireless network.
It incorporates a variety of predefined patterns and it is also possible to easily create and save your own patterns. Brightness and speed can be adjusted as required.

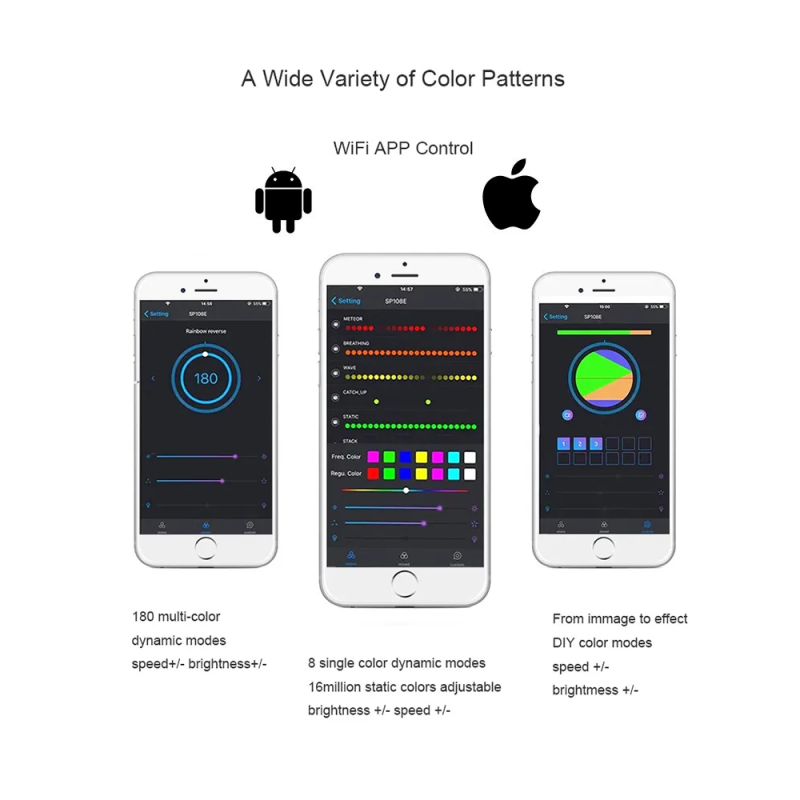

It is controlled by the "Led Shop" app, which is compatible with any cell phone running Android OS (version 4.4 onwards) or IOS (version 10.0 onwards). It can be downloaded from Google Play Store or from the QR code available in the product instructions.

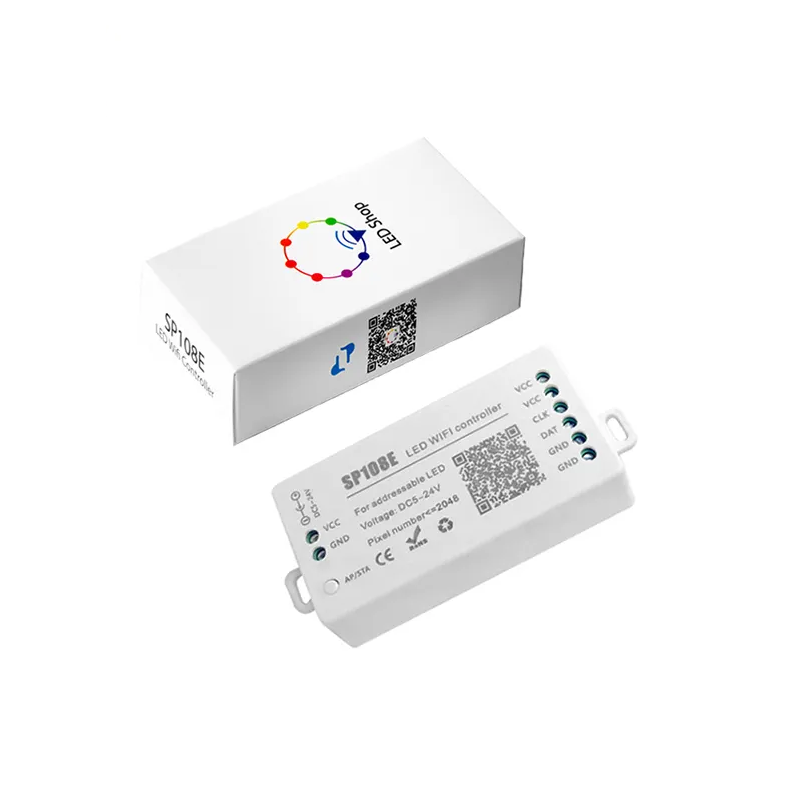

Included inside the packaging: 1 controller, 1 3-pin JST female connector, a screwdriver and instructions for use.
|
Main product features:
|
Questions
| P: Question: | Hello. how many meters of led strip does the controller support? could you tell me a power supply according to these leds= https://www.barcelonaled.com/tiras-led/tiras-led-inteligentes/tira-led-inteligente-rgb-ic-12vdc-5-metros-ip65.html#product-details |
|---|
| R: Answer: | The controller is for pixel led strips "smart strips" supports 2048 pixels, the power of the strip is obtained by connecting the strip every 2 or 5 meters (depending on model) to external sources that do not pass through the controller. In the case of this model of strip ref.B1575RGB needs sources of 12vdc of 75W every 5 mts. |
|---|
