SKU:SK-T13-K
Has superado el límite de unidades
In stock 35 units
Data sheet

The 1 zone recessed DMX control panel offers complete lighting control for 100-240V RGB LED fixtures.

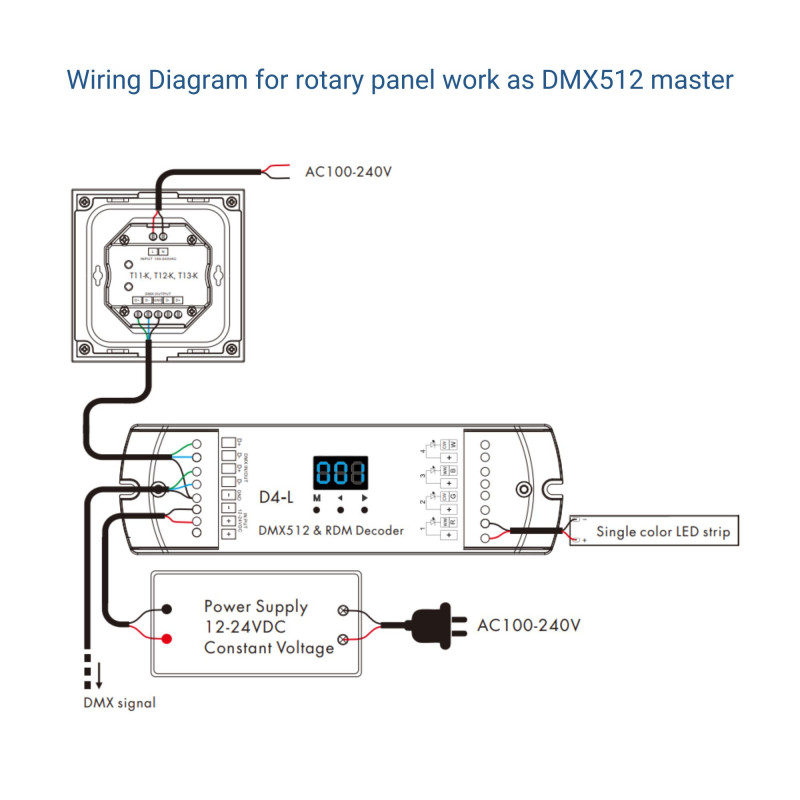

It can function as a DMX512 master or RF remote control.

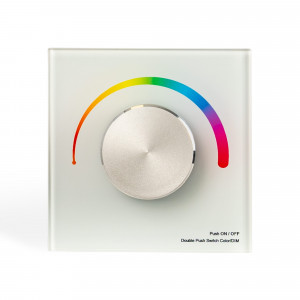

Its elegant glass interface incorporates a wheel that allows precise adjustment of color and brightness.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The DMX RGB Touch Control Panel features a sleek white design and dual functionality as a DMX512 master or RF remote control.

It complies with the DMX512 standard and is compatible with any DMX decoder, ensuring easy integration into existing lighting systems.

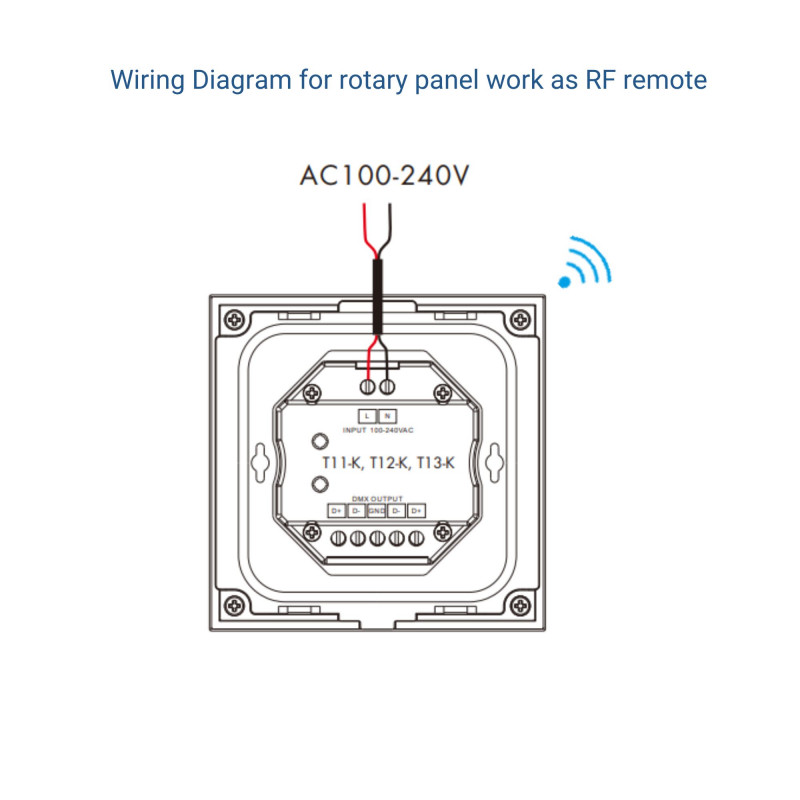

In its RF mode, each zone can control multiple 2.4G RF LED controllers.

It incorporates a rotating wheel that allows intuitive changing of RGB color, saturation and brightness. It offers a smooth, flicker-free transition between 256 dimming levels.

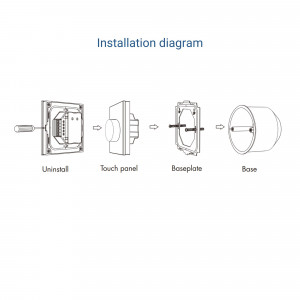

Its standard dimensions fit into a universal (EU) flush-mounted box.

Product features:

  • Input voltage: 100-240V AC
  • 1 zone
  • Input signal: Touch + RF 2.4GHz
  • Output signal: DMX512, RF 2.4GHz
  • RF range: 10m (unobstructed)
  • No. of DMX output channels: 3
  • Dimensions: 86 x 86 x 48 mm
  • Indoor use: IP20
Nominal Voltage (V)
100-240V
IP
IP20
Dimmable
Yes
Colour control
RGB
Connectivity
DMX
RF
Material
Glass
Use Outdoor
No
Temperature range
-30°C ~ +55°C
Certificates
CE
ROHS
Warranty
5 years
Skydance
