DMX512 Decoder 12-24V DC - 5A/channel - 4 Channels

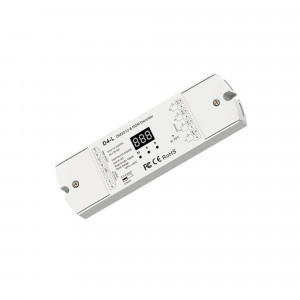

The DMX512D Decoder is an advanced and complete solution for controlling LED lighting. It provides 4 constant voltage output channel with 5A and a power capacity of up to 360W.

It has RDM function that allows remote control via a DMX master.

Its digital numeric display and intuitive buttons make operation easy.

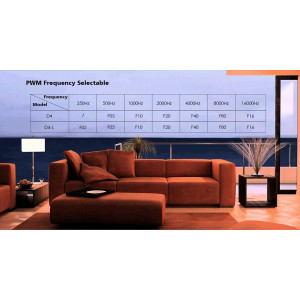

It offers decoding modes for 1 to 4 channels and multiple PWM frequencies. Allows selection between 8 or 16-bit gray levels and adjustment of the dimming curve. Includes standalone RGB and 4-channel dimming modes that can be controlled via integrated buttons with predefined programs, enabling operation without the need for an external DMX signal.

To ensure the safety and durability of the equipment, the decoder is equipped with protection against overheating, overload and short-circuit, with the ability to automatically recover after these adverse conditions are resolved.
