PWM 5-24V 16A single-color signal booster / repeater
SKU:B1624
€15.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

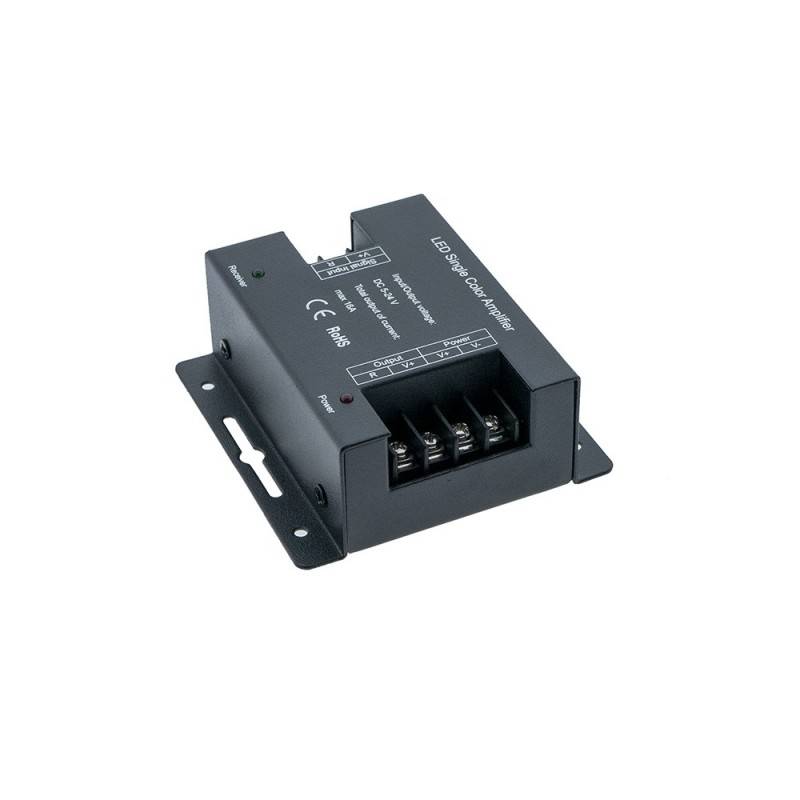

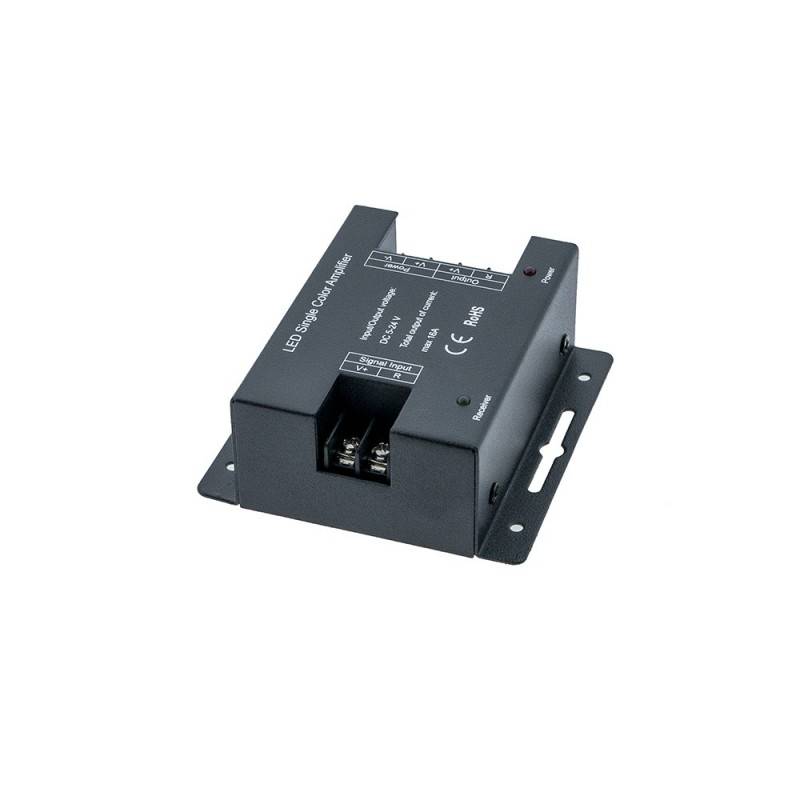

5-24V 16A single-color PWM signal repeater / amplifier
1 channel PWM signal repeater for LED strips and single-color luminaires of 5-24VDC and maximum 16A. High speed power amplifier (20ns), easy to install and maintenance and management free.
Extend the length of your dimmable LED fixtures with signal amplifiers with a single dimmer controller. The dimming signal will be extended linearly and without delay.
The placement of signal repeaters is independent of the installation of as many power supplies as necessary to power the entire assembly. Make sure that the circuit is properly powered by connecting the power supply to the "POWER" connection.
It is important that the wiring is done respecting the positive and negative poles. Otherwise, the luminaire may short-circuit.
Technical parameters.
- Operating temperature: -20°C to 60°C
- Input/output voltage: 5V-24VDC
- Standby consumption: <1W
- Maximum output current: <16A
- Maximum output power: 384W / 24V
- Wiring connection via terminal strip
- Dimensions: 83 x 79 x 33 mm
- Reaction time: 20 nanoseconds
Installation instructions (in English):
Certificates
CE
ROHS
ROHS
Questions
| P: Question: | IS COMPATIBLE WITH MI LIGT REGULATOR |
|---|
| R: Answer: | The amplifiers are compatible with RGB controllers. |
|---|
| P: Question: |
Hello I explain my problem I am installing a house and I have to mount 16 mts mono color led with a consumption of about 350W at 24V and I have everything installed with a wifi dimmer, but the problem is that the allowed consumption for this dimmer is 200W, and they are from the house Shelly, and in Shelly Spain that are in Alicante tell me to contact you because on other occasions they have bought this item, but they do not know how to connect it. So I would be grateful if you could inform me or send me a wiring diagram of how to connect it, because I see on the internet that yes, you must have a power supply powerful enough for the power and connect it to the B1624 but what I do not understand is how to connect the dimmer Shelly, which actually does is lower the voltage but in alternating current to 220v, finally thanks in advance for helping me and a greeting. |
|---|
| R: Answer: | This product is an amplifier for LED strips from 5 to 24Vdc, which is placed every 10mts (depending on strip model) with their respective VDC power supply to give power to the next section of strip and not have losses due to voltage drop, (see diagram on the web). If your dimmer is a TRIAC for phase cut regulation of 220Vac (we do not know the indicated dimmer of that brand) it does not serve to regulate low voltage led strips, unless you use a source adjustable from the 230vac input as ref. B4257. |
|---|
