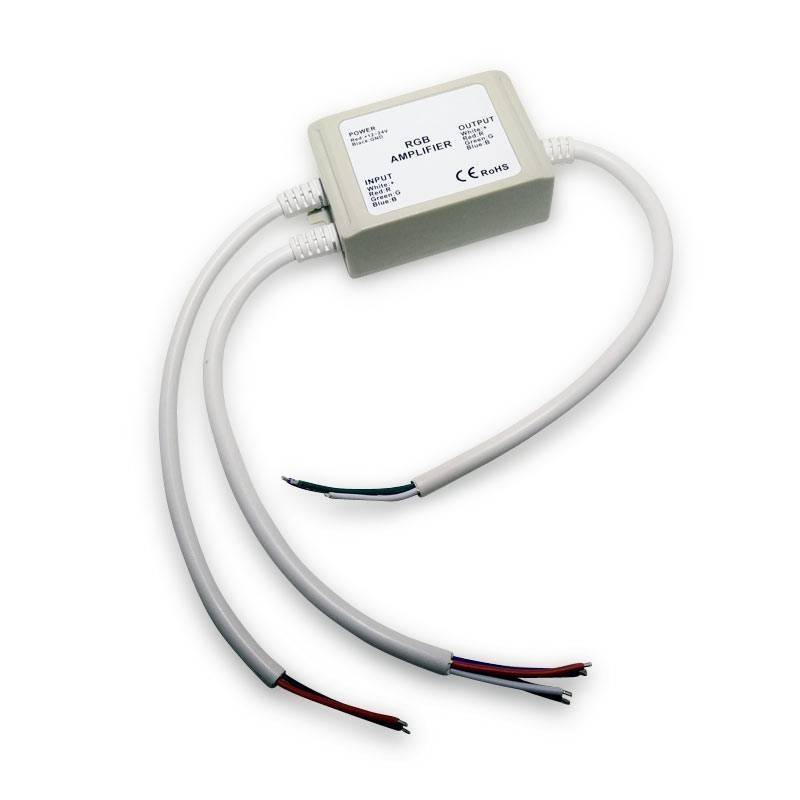

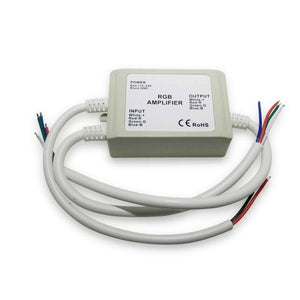

RGB Amplifier/repeater - Tri-proof 12-24V DC - 4A/channel

RGB Amplifier/repeater - Tri-proof 12-24V DC - 4A/channel

Name: RGB Amplifier/repeater - Tri-proof 12-24V DC - 4A/channel
Brand: Barcelona LED
SKU: B1625-3
Price: 34.74 EUR
Availability: InStock

SKU:B1625-3

€34.74 Tax included

In stock 60 units

Data sheet

Signal amplifier for 12-24V RGB LED strips and LED luminaires.

It allows extending the length of dimmable LED strip installations using a single controller.

The dimming signal will extend linearly and without delays, ensuring optimal performance at all times.

Due to its IP67 protection rating, it's suitable for outdoor use.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

RGB LED Amplifier/Repeater - 12-24V

This device offers the ability to amplify the PWM signal, allowing the installation of long LED strip extensions without experiencing signal loss.

It's suitable for 12-24V RGB LED strips and luminaires, supporting a maximum of 4A per channel.

Its IP67 protection rating guarantees resistance to external factors such as water and dust, making it ideal for outdoor use.

It's essential to select an appropriate power supply that matches the consumption of the LED strip or luminaire to be installed. Additionally, the "POWER" connection must be correctly connected to ensure the circuit operates properly.

Attention should also be paid to wiring to avoid short circuits, ensuring positive and negative polarity are respected at all times.

Product features:
